AZTech SOUND GALAXY PRO 16 EXTRA
Logs
typeType
Sound
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
Yamaha YAC512 (2-Channel Floating DAC) Cirrus Logic CS4216 (16bit stereo codec) STMicroelectronics / Inmos TEA2025 (Audio Amplifier) STMicroelectronics / Inmos TDA7284 (Record/Playback circuit with ALC) AZTech AZTPR16 AZTech AZT-SG16MIX1092 (Mixer) AZTech SGP16 Yamaha YMF262 (OPL3)
MTL
Card Type Sound
I/O Options CD-ROM interface (2), SCSI expansion board, CD Audio in, game/MIDI port, Line in, Speaker out, Multimedia PC speaker out, PC speaker in, Microphone jack, Wave table interface
Maximum DRAM N/A
Chipset Controller Unidentified
tag Also known as
portintI/O ports
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • DA-15
1x
  • 2x20 2.54mm pin header
1x
  • 2x1 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • 2x13 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-09-20T19:22:58Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-10-01
File
Logs
Chip
Release date
1993-10
File
Logs
Chip
Release date
2014
File
Logs
Chip
Release date
1994-04
File
Logs
Chip
Release date
1994-11
File
Logs
image1 Image 1 of 3 (Microhouse)

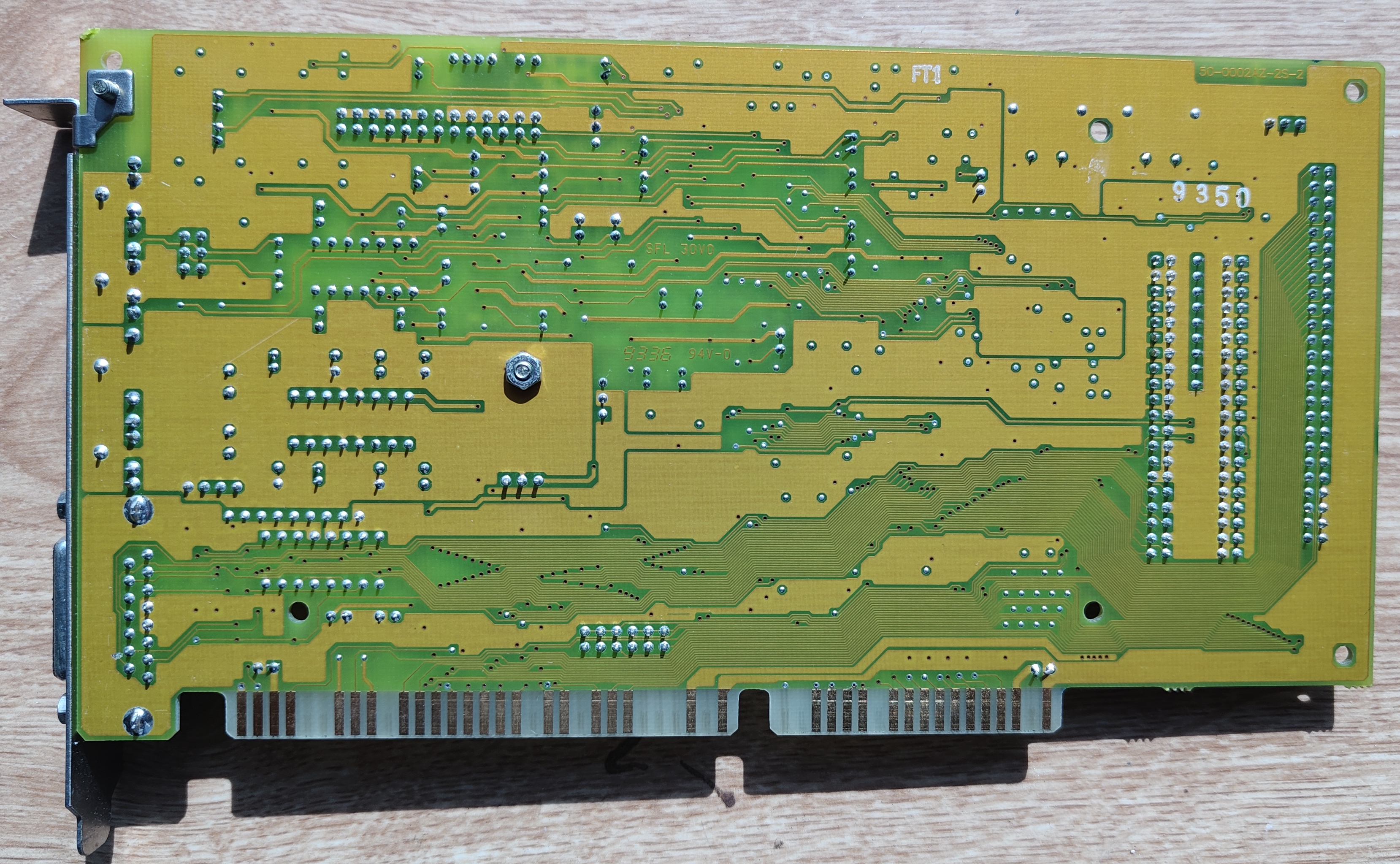

image2 Image 2 of 3 (Yargoro)

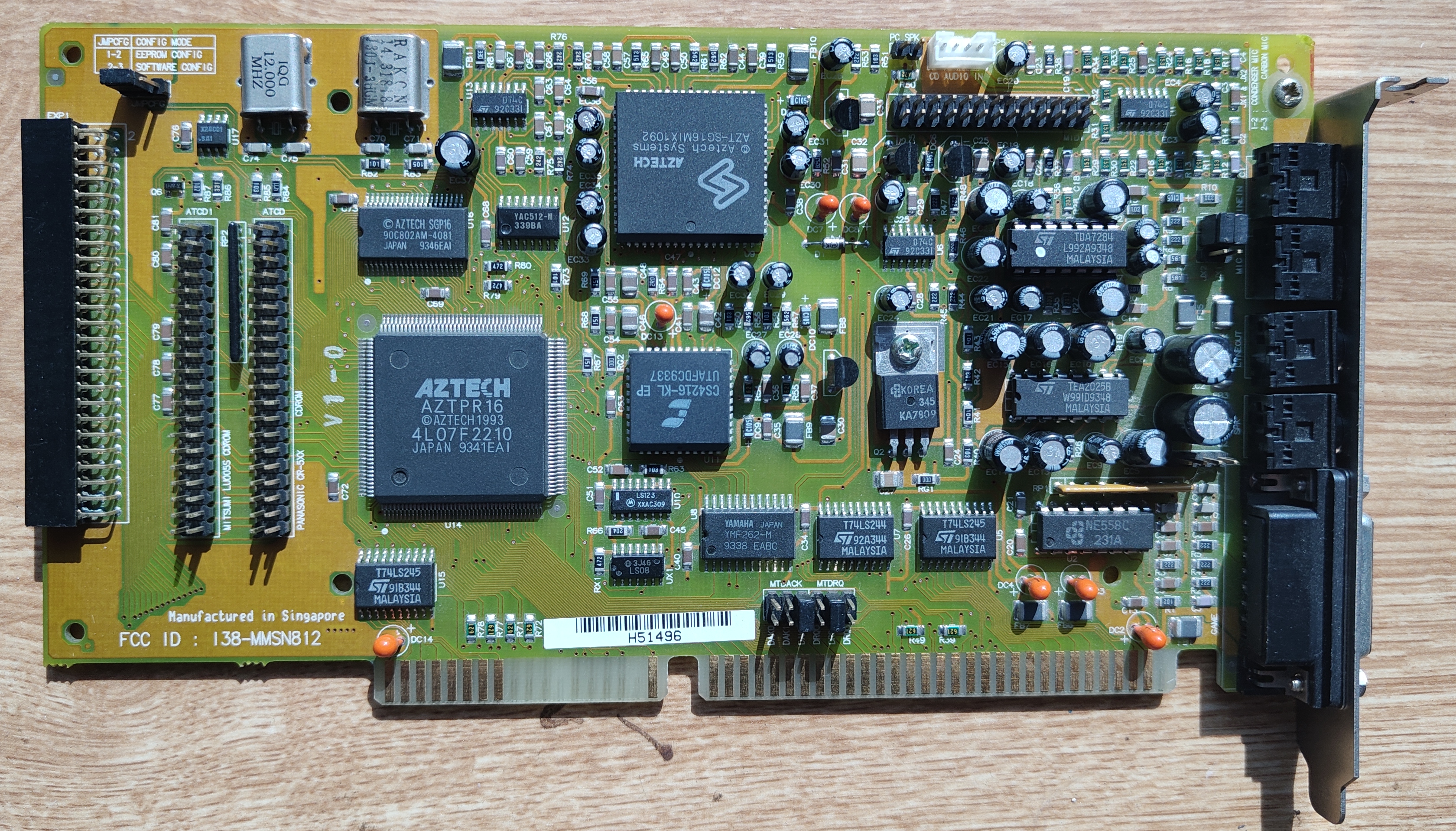

image3 Image 3 of 3 (Yargoro)
