ATi TV Wonder Pro (ISA)
Logs
typeType
TV tuner
interfaceInterface
signalSignaling
Power Only
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EXM341
chip Chips and specs
-> Audio
Philips TDA8425 (Hi-fi stereo audio processor)
-> Video
Brooktree Bt829B (Video Capture Analog TV/VCR) Philips SAA5281 (Video input processor)
tag Also known as
portintI/O ports
1x
  • 3.5mm TRS jack, Stereo audio in
1x
  • 2x20 2.54mm pin header
2x
  • 1x4 2.50mm pin header, Stereo audio in
3x
  • RCA Jack, Composite video
1x
  • F-type female coaxial, RF Video
powerPower connectors
Empty
notes Notes

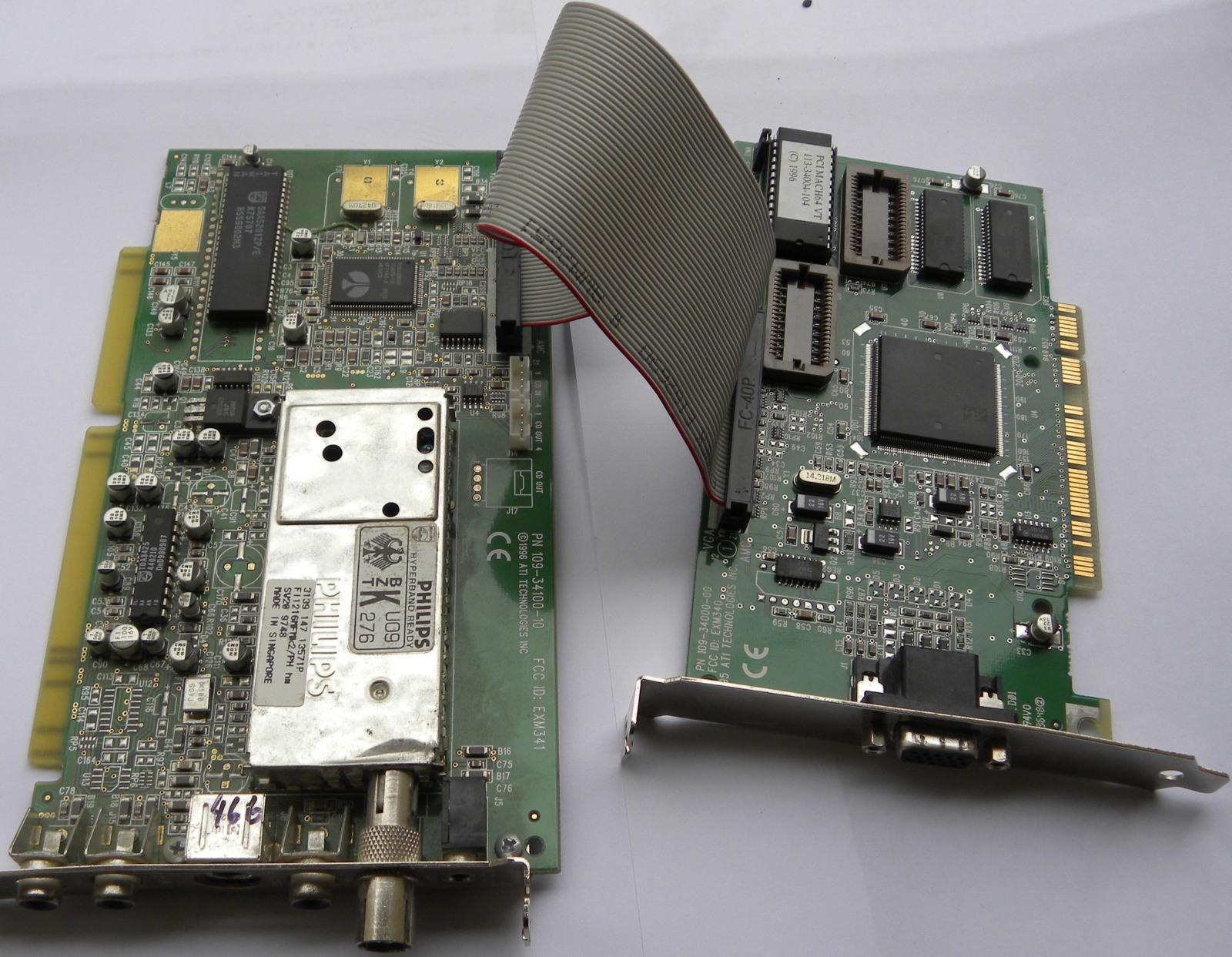

Only the power pins are connector on the ISA connector. All signalling is done through the AMC connector to cards using the Mach64 or Rage chips.

Last updated 2025-12-11T15:08:13Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1998-03-27
File
Logs
Chip
Release date
1994-06
File
Logs
Chip
Release date
1988-10
File
Logs
image1 Image 1 of 6 (Stephan W.)
image2 Image 2 of 6 (Shadowdestroyer777)

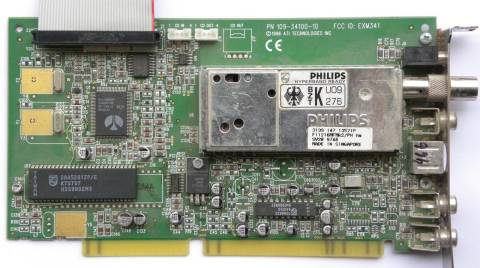

image3 Image 3 of 6 (Zaatharen)
image4 Image 4 of 6 (Shadowdestroyer777)

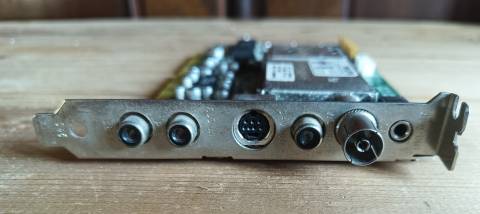

image5 Image 5 of 6 (Shadowdestroyer777)
image6 Image 6 of 6 (Zaatharen)
