ATi Rage 128 PRO Mac AGP (ADC)
Logs
typeType
Video
interfaceInterface
signalSignaling
AGP 2x AGP 4x
dimSlot height
1
datePCI ID
5046
ramRAM type
SDRAM
ramRAM size
32MB16MB
chip Chips and specs
-> Video
ATi Rage 128 4X / Rage 128 PRO
tag Also known as
portintI/O ports
1x
  • DE-15, VGA
powerPower connectors
Empty
notes Notes

Standard card in:

  • Mystic Power Mac G4
  • Digital Audio Power Mac G4

There is a non-ADC version of this for the Sawtooth model

Last updated 2025-09-11T17:02:49Z
biosc No BIOS files available
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.7110
OS support
Windows 9x
Arch
x86
Size
11.5MB
Filename
Name
Version
6.40
OS support
Windows 9x
Arch
x86
Size
7.4MB
Filename
Name
Version
5.13.01.3279
OS support
Windows 2000
Arch
x86
Size
9.6MB
Filename
Name
Version
4.13.7192
OS support
Windows 9x
Arch
x86
Size
12MB
Filename
Name
Version
4.12.6292
OS support
Empty
Arch
x86
Size
13.5MB
Filename
Name
Version
6.13.3279
OS support
Windows XP/2k3
Arch
x86
Size
9.6MB
Filename
doc No card documents available

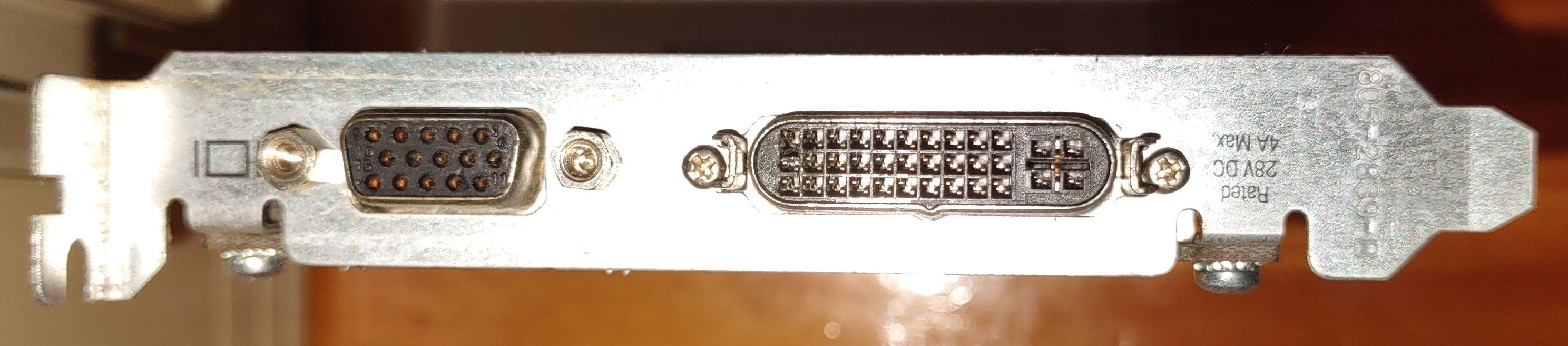

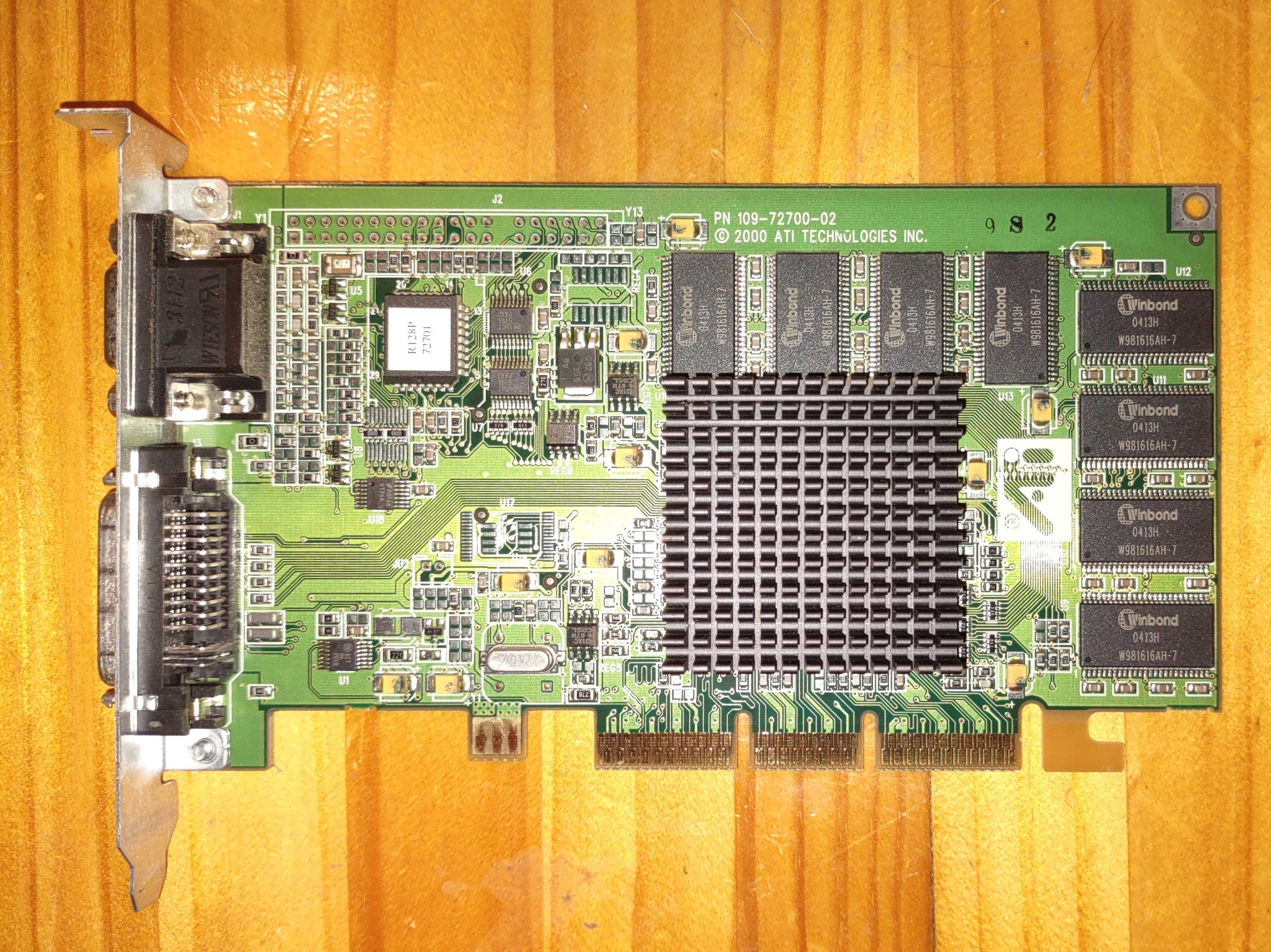

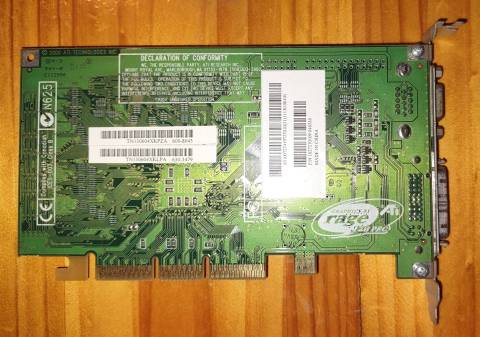

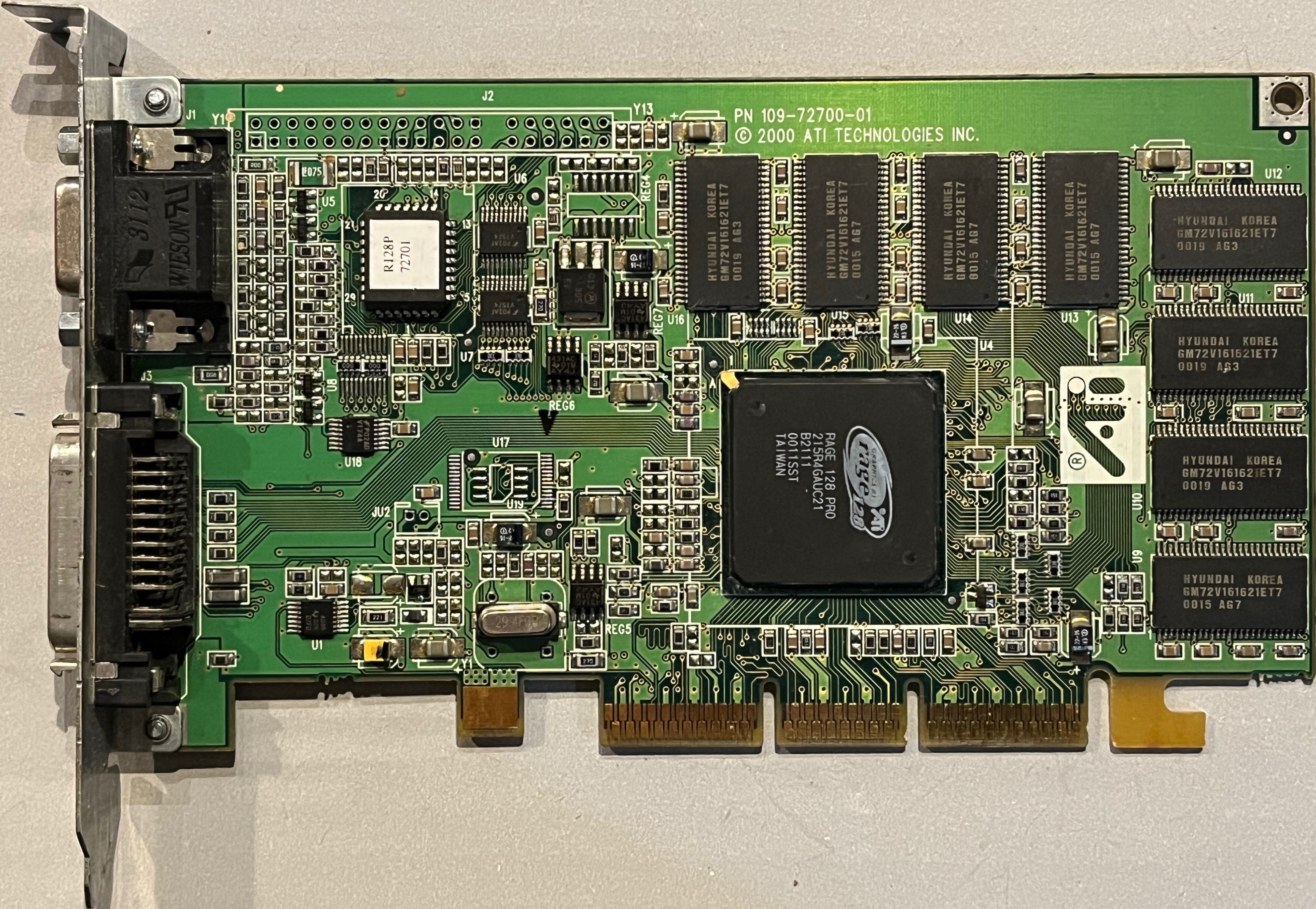

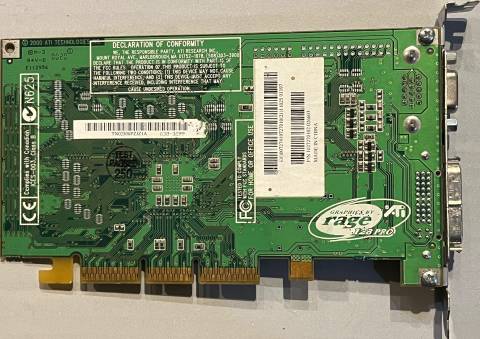

image1 Image 1 of 5 (dogecode)
image2 Image 2 of 5 (AV_Tips_YT)
image3 Image 3 of 5 (dogecode)
image4 Image 4 of 5 (AV_Tips_YT)
image5 Image 5 of 5 (AV_Tips_YT)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
