ATi Rage 128 4X / Rage 128 PRO
Logs
dateType
Video
486Family
threadsMemory ctrl.
SGRAMSDRAM
datePCI Vendor ID
1002
datePCI Device ID
5046
dimensionProcess node
250nm
actActions
See all boards with this chip See all cards with this chip
tag Also known as
  • ATi 215R4GAQD22 (stepping D22)
  • ATi 215R4GASA22 (stepping A22)
  • ATi 215R4GAUC21 (stepping C21)
doc No chip documents available
notes Notes

Device IDs

  • 5046 = 128 PRO GL
  • 5446 = 128 PRO TV OUT

Package

  • BGA 385 package

Features

  • Supports AGP 4X
  • Supports TMDS out
  • 128 bit SDR DRAM
  • 64 bit DDR DRAM
  • Supports Multi GPU (Fury Maxx)
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.7110
OS support
Windows 9x
Arch
x86
Size
11.5MB
Filename
Name
Version
6.40
OS support
Windows 9x
Arch
x86
Size
7.4MB
Filename
Name
Version
5.13.01.3279
OS support
Windows 2000
Arch
x86
Size
9.6MB
Filename
Name
Version
4.13.7192
OS support
Windows 9x
Arch
x86
Size
12MB
Filename
Name
Version
4.12.6292
OS support
Empty
Arch
x86
Size
13.5MB
Filename
Name
Version
6.13.3279
OS support
Windows XP/2k3
Arch
x86
Size
9.6MB
Filename
Last updated 2025-06-10T17:14:55Z

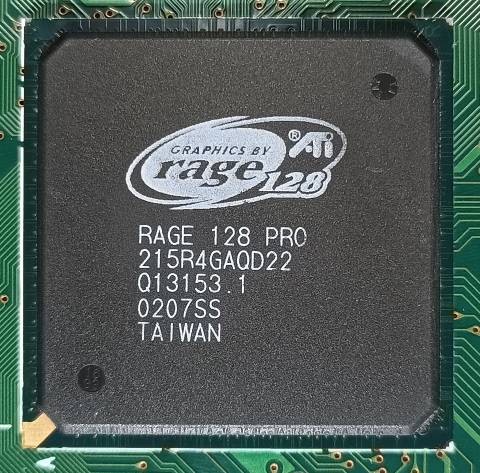

image1 Image 1 of 3 (Helen_Croft)

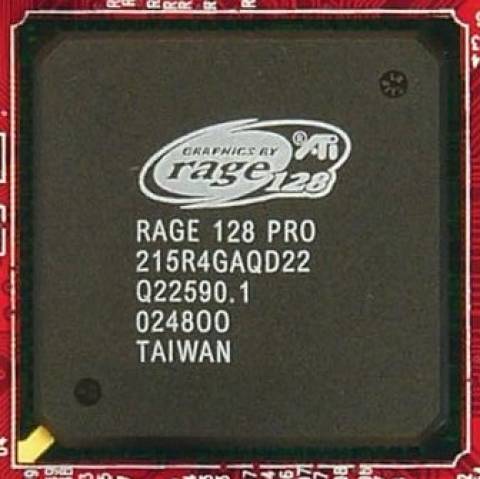

image2 Image 2 of 3 (Palcal)

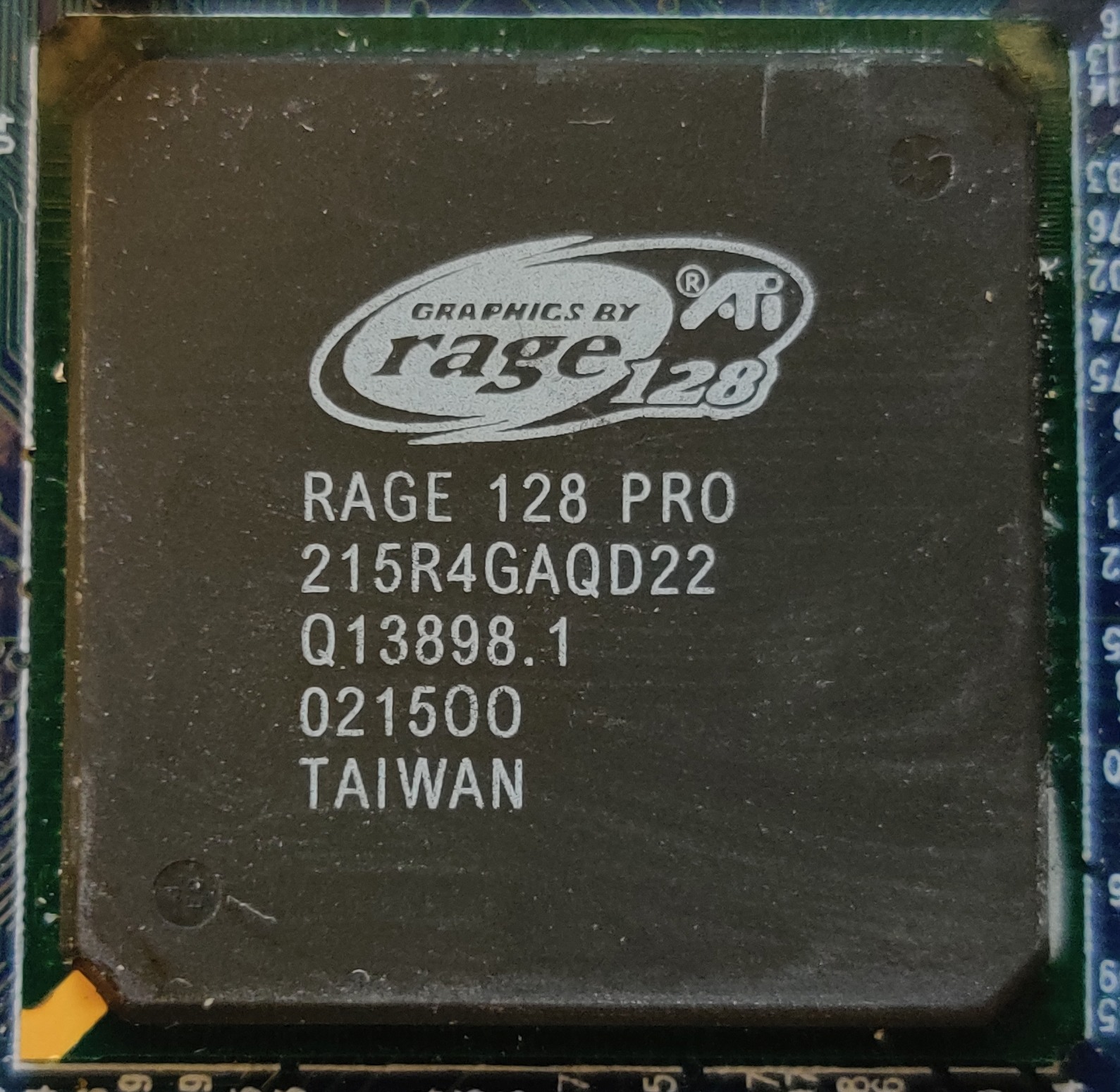

image3 Image 3 of 3 (Eric Voirin (oerg866))
