ASUS My Cinema-PE6200Analog
Logs
typeType
Video capture TV tuner FM Radio
interfaceInterface
signalSignaling
PCIe 1.0
datePCI ID
2100
dimDimensions
160 mm (width) x 70mm (length)
chip Chips and specs
-> TV tuner
NXP SAA7136 NXP TDA18271HD
-> Video
ViXS XCode-2106

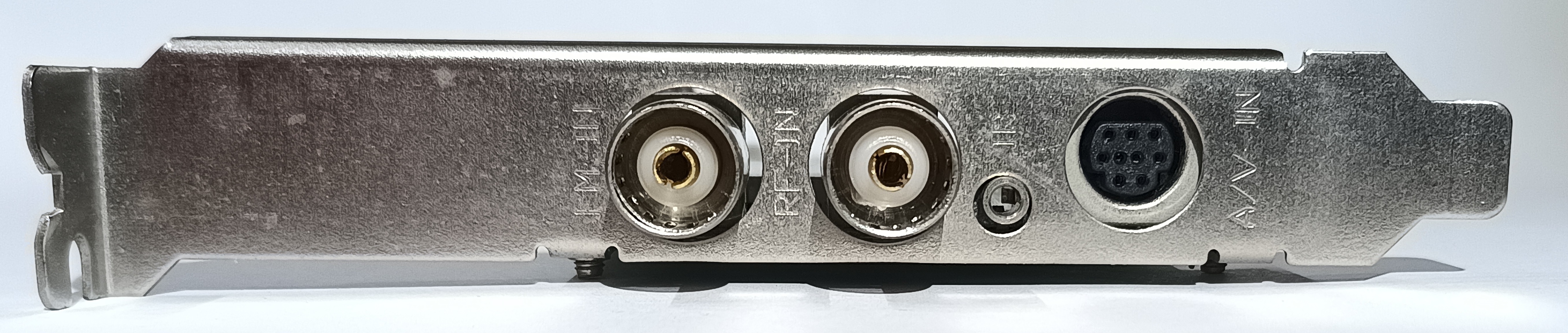

portintI/O ports
1x
  • 9-pin mini-DIN (non-standard)
1x
  • Belling-Lee male coaxial
1x
  • 2.5mm TRS jack
1x
  • Belling-Lee female coaxial
powerPower connectors
Empty
Last updated 2025-05-20T12:41:22Z
biosc No BIOS files available
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.6
OS support
Windows Vista
Arch
x86 , x86-64
Size
4.1MB
Filename
Name
Version
6.0.141.0.4
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
5.2MB
Filename
Name
Version
6.131.02
OS support
Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
13.6MB
Filename
Name
Version
1.7
OS support
Windows Vista
Arch
x86 , x86-64
Size
3.6MB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
2008-04
File
Logs
Release date
2009-02
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-03
File
Logs
Chip
Release date
2004-09
File
Logs
Chip
Release date
2009-05-19
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 5 (Helen_Croft)
image2 Image 2 of 5 (Helen_Croft)

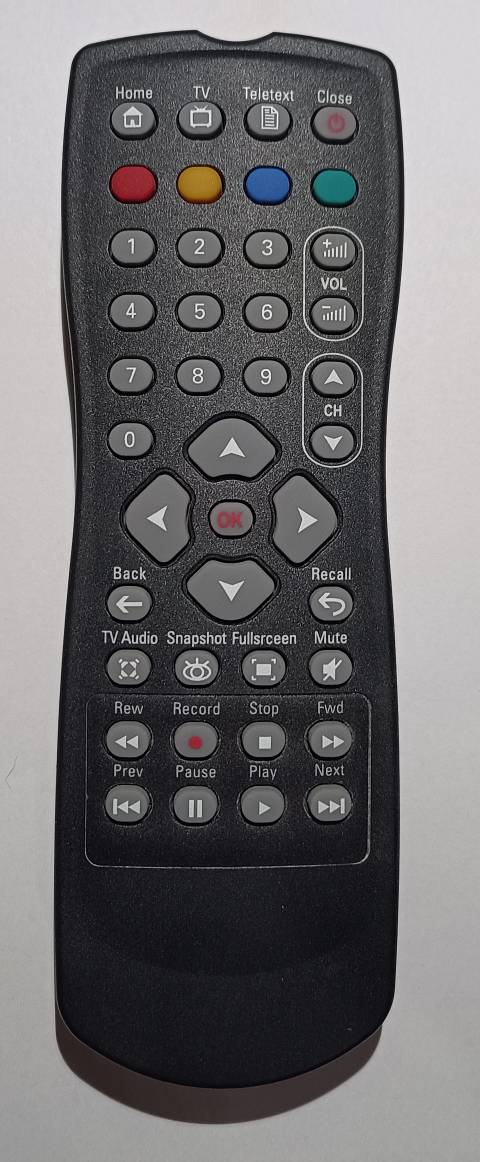

image3 Image 3 of 5 (Helen_Croft)

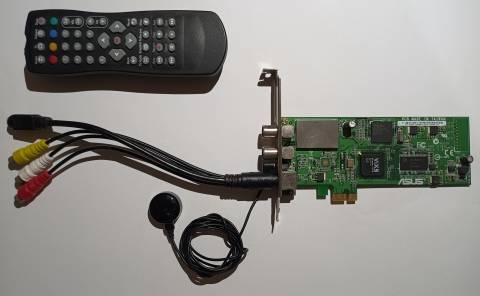

image4 Image 4 of 5 (Helen_Croft)
image5 Image 5 of 5 (Helen_Croft)
