Animation Technologies LifeView LR25
Logs
typeType
TV tuner
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
6120
fccFCC ID
JM2LR-025
chip Chips and specs
-> Audio
Philips TDA1517 (2x6W Audio Power Amplifier) Philips TDA8425 (Hi-fi stereo audio processor)
-> Clock Synth / PLL
Toshiba TD6381 (Frequency Synthesizer for TV)
-> TV tuner
Sanyo LA7550 (IF Signal Processing) Hitachi HW2221 (SAW Filter)
-> Video
Philips SAA7110 (Video Input Frontend) Zoran ZR36120 (AV PCI Controller)
portintI/O ports
1x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.50mm pin header
1x
  • RCA Jack
1x
  • 4-pin Mini-DIN
1x
  • F-type female coaxial
powerPower connectors
Empty
Last updated 2025-06-23T12:43:41Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-10-18
File
Logs
Chip
Release date
1999-03-12
File
Logs
Chip
Release date
2004-02-18
File
Logs
Chip
Release date
1988-10
File
Logs
Chip
Release date
1996-07
File
Logs
image1 Image 1 of 5 (Raimond Spekking (Raymond))

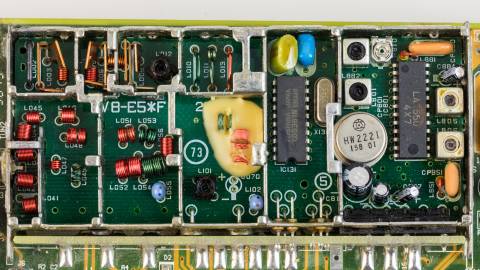

image2 Image 2 of 5 (Raimond Spekking (Raymond))
image3 Image 3 of 5 (Raimond Spekking (Raymond))
image4 Image 4 of 5 (Raimond Spekking (Raymond))
image5 Image 5 of 5 (Raimond Spekking (Raymond))

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
