Acculogic sIDE-4/VL
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA 32-bit VLB 8-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
IIV0041900A00
chip Chips and specs
-> IDE ctrl.
ZyMOS/Appian ADI2 (LOCAL-BUS IDE)
-> Signal transmitter/receiver
(multiple brand) MC1488 (RS-232 Driver) (multiple brand) MC1489 (RS-232 Receiver)
-> Super I/O
SMSC/SMC FDC37C666GT
MTL
Size: Three-fourth length, half-height card
Data bus: 32-bit VL-bus
Hard drive supported: Four IDE(AT) drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header, FDD
2x
  • 2x20 2.54mm pin header
1x
  • DB-25, ECP/EPP
1x
  • DE-9, RS-232
1x
  • 2x5 2.54mm pin header, RS-232
powerPower connectors
Empty
notes Notes

Driver: https://www.vogonsdrivers.com/getfile.php?fileid=2046

Last updated 2025-12-31T12:28:01Z
biosc No BIOS files available
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
v1.15
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
31.6KB
Filename
Name
Version
v2.14
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1.1MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 3.0
Arch
x86
Size
85.1KB
Filename
Version
OS support
MS-DOS Windows 3.0
Arch
x86
Size
51KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 1.x Windows 3.0
Arch
x86
Size
53.8KB
Filename
Version
OS support
MS-DOS OS/2 1.x Windows 3.0
Arch
x86
Size
67.2KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
2009-12
File
Logs

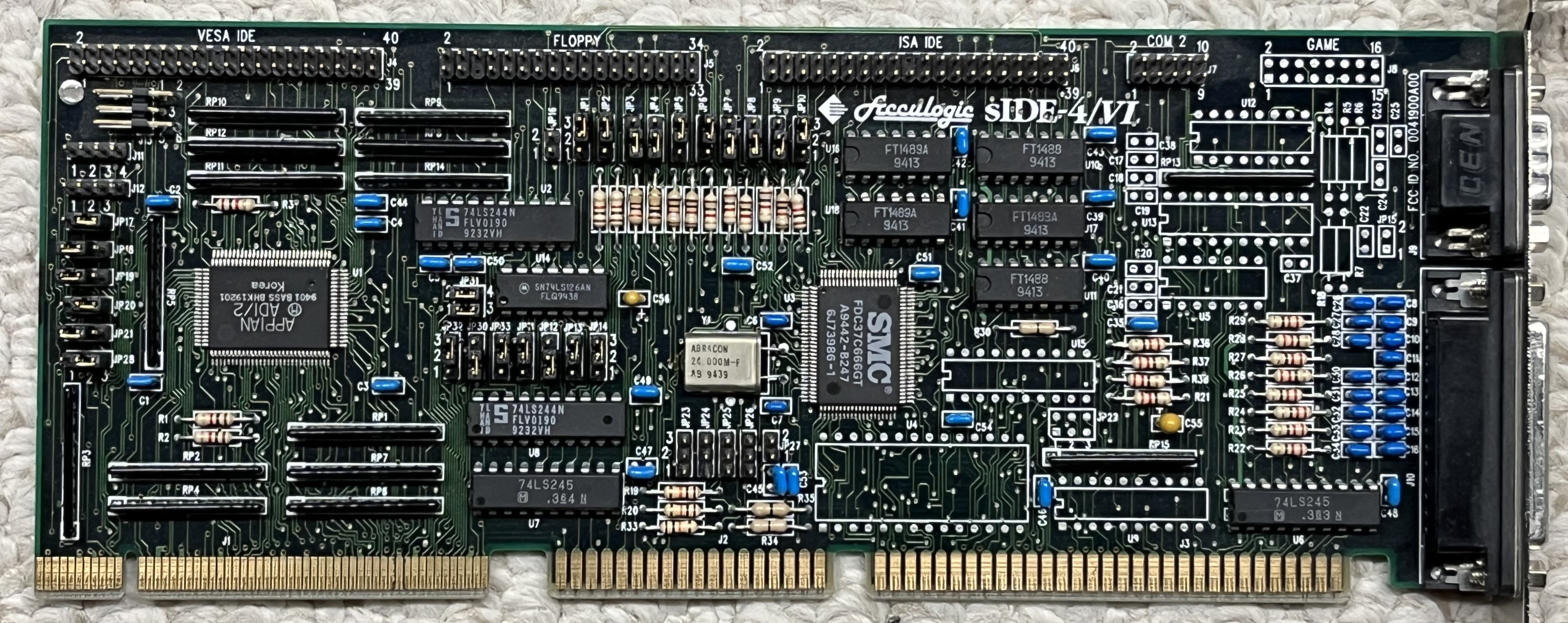

image1 Image 1 of 2 (Microhouse)
image2 Image 2 of 2 (Douglar)
