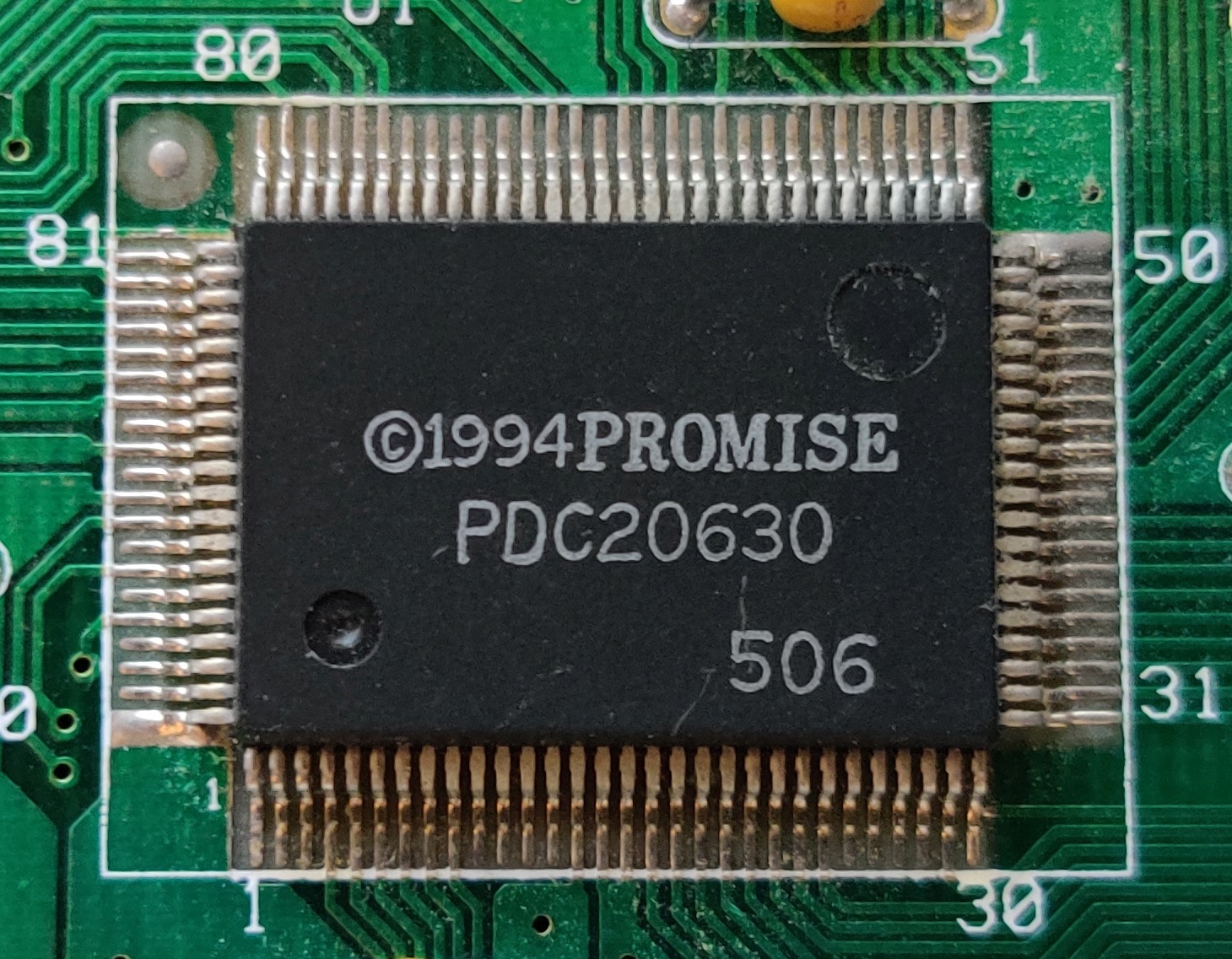

Promise (PTI) PDC20630 (VLB IDE Controller)
Logs
Type
Actions
See all cards with this chip
1 chip document available
Release date
File
Logs
2 files available
Version
Note
File
Logs
Notes
The Promise 20230 & 20630 chips are very similar.
20630 offers:
- 2 IDE ports over the single port on the older chip
- Chip can talk WDMA to storage, but transfers from the chip to the PC are still PIO
- IRQrdy modes depend on the controller implimentation
- improved performance when everything else is the same
Drivers & BIOS are compatable between the Promise 20230 & 20630, but the WDMA modes require the 20630 chips.
Promise 20230 & 20630 chips are supported by XTide Universal BIOS 386L module in a beta state as of XUB r629
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.3
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 2.x
OS/2 Warp 3.x
SCO Unix - OpenServer
Windows 9x
Arch
x86
Size
343.7KB
Filename
Name
Version
2.60
OS support
OS/2 2.x
Windows 3.1x
Windows NT 3.1
Arch
Size
130.8KB
Filename
Name
Version
3.31
OS support
MS-DOS
OS/2 2.x
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
339.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 2.x
OS/2 Warp 3.x
SCO Unix - OpenServer
Windows 3.1x
Windows 9x
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
312.1KB
Filename
Version
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 2.x
Windows 3.1x
Windows NT 3.1
Arch
x86
Size
227KB
Filename
