Features and API support
WDDM	3.0
Shader ISA	GFX 10.1 (gfx1011)
System DMA	5.0.5
Shader Model	6.0
OpenCL Support	2.2
OpenGL Support	4.6
Vulkan Support	1.3
Display Core Next	2.1.0
Ray Tracing Cores	No
Graphics Controller	10.1.2
VIdeo Encode Engine	VCN 2.0.2
Video Decode Engine	VCN 2.0.2
DirectX Feature Level	12 (12.1)
Virtualization Support	AMD MxGPU Technology (SR-IOV)

Core Architecture
Foundry	TSMC
Die Size

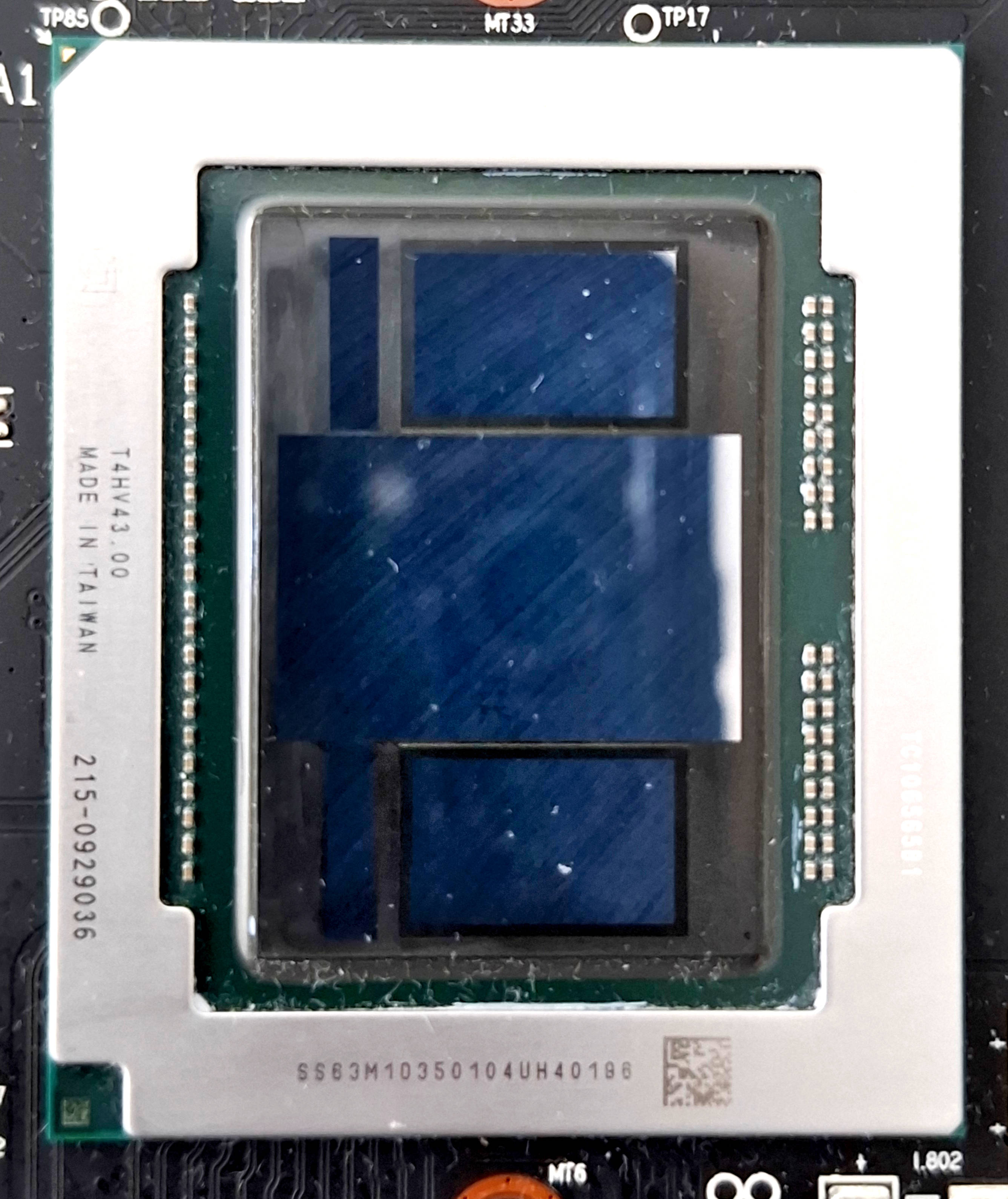

GPU Name	Navi 12
Part Number	215-0929036
Transistors
Process Size	7 nm
Bus Interface	PCI-e 4.0 x16
Microarchitecture	RDNA 1.0

Cache Hierarchy
Shared L2 Cache	4096 KB
CU Vector Data Cache	16 KB
WGP Local Data Share	128 KB
WGP Instruction Cache	32 KB
SIMD32 Scalar Register File	10 KB
CU Local Data Share (GCN-Mode)	64 KB
WGP Scalar Data Cache / K Cache	16 KB

Core Configuration
DMA Engines	1
Compute Units	36
Hardware Schedulers	1
Async Compute Engines	4
Shading Units / Cores	2304
Render Output Units (ROPs)	64
Texture Mapping Units (TMUs)	144

Theoretical Performance
Pixel Rate	102.4 GPixel/s
Texture Rate	230.4 GTexel/s
FP16 (half) Performance	14.75 TFLOPS (2:1)
FP32 (float) Performance	7.373 TFLOPS
FP64 (double) Performance	460.8 GFLOPS (1:16)
Performance Calculation Notes	Pixel Rate = ROPs * Boost Clock. Texel Rate = TMUs * Boost Clock. FP32 Performance = (Shading Units * Boost Clock * 2) / 1000.

Memory Interface
Memory Bus	256bit GDDR6
Memory Bandwidth	512 GB/s
Memory Bus Bridge	2048-bit (HBM2)
Memory Controller Type	GDDR6 bridged to HBM2
Memory Clock on GDDR6 controller	2000MHz

Clock and Power
Core Clock	1000 MHz
Boost Clock	1600 MHz
TDP (Thermal Design Power)	225 W
