Zida 5SVA VER:1.2
Chipset
Socket
FSB speeds 50MHz60MHz66MHz75MHz83MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions220mm x 204mm
Cache
256KB512KB
Max RAM size
256MB
RAM types 72-pin EDOSDR UDIMM
PSU connector
Also known as
- Zida Tomato 5SVA VER:1.2
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
Expansion slots3x
16-bit ISA
3x
32-bit PCI
Notes
- VER:1.0 and VER:1.1 board may exist but no info has been found so far
- 4x-5.5x multiplier settings may not work on these revision, all work on VER:1.3 of the board
- Supports 64MB DIMM except for some early versions. Please check the marking on VIA 100 pin IC VT82C587 on location U3 or U4. 64MB DIMM is supported for marking '14AXXXXX' or '1XXXXXXX'. It is NOT supported for marking "01Cxxxxx"
- Do NOT use bios 1.3 and newer on VER:1.2 board or any board with "01Cxxxxx" VT82C587
- K6-2 233 only
- undocumented setting for 50MHz FSB: JP6: 3-5 and 4-6
Last updated 2026-01-08T01:24:37Z
Board info score is 9.6/10
Chips
-> Chipset part
-> Clock Synth / PLL
-> Super I/O
2 BIOS files available
Award - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
06/19/1998-580VPX-Prime3-2A5LDZ1AC-00
Note
Core version
4.51PG
BIOS version
Logs
POST string
07/24/97-580VPX-Prime3C-2A5LDZ1AC-00
Note
Core version
4.51PG
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.35V
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
973.7KB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs

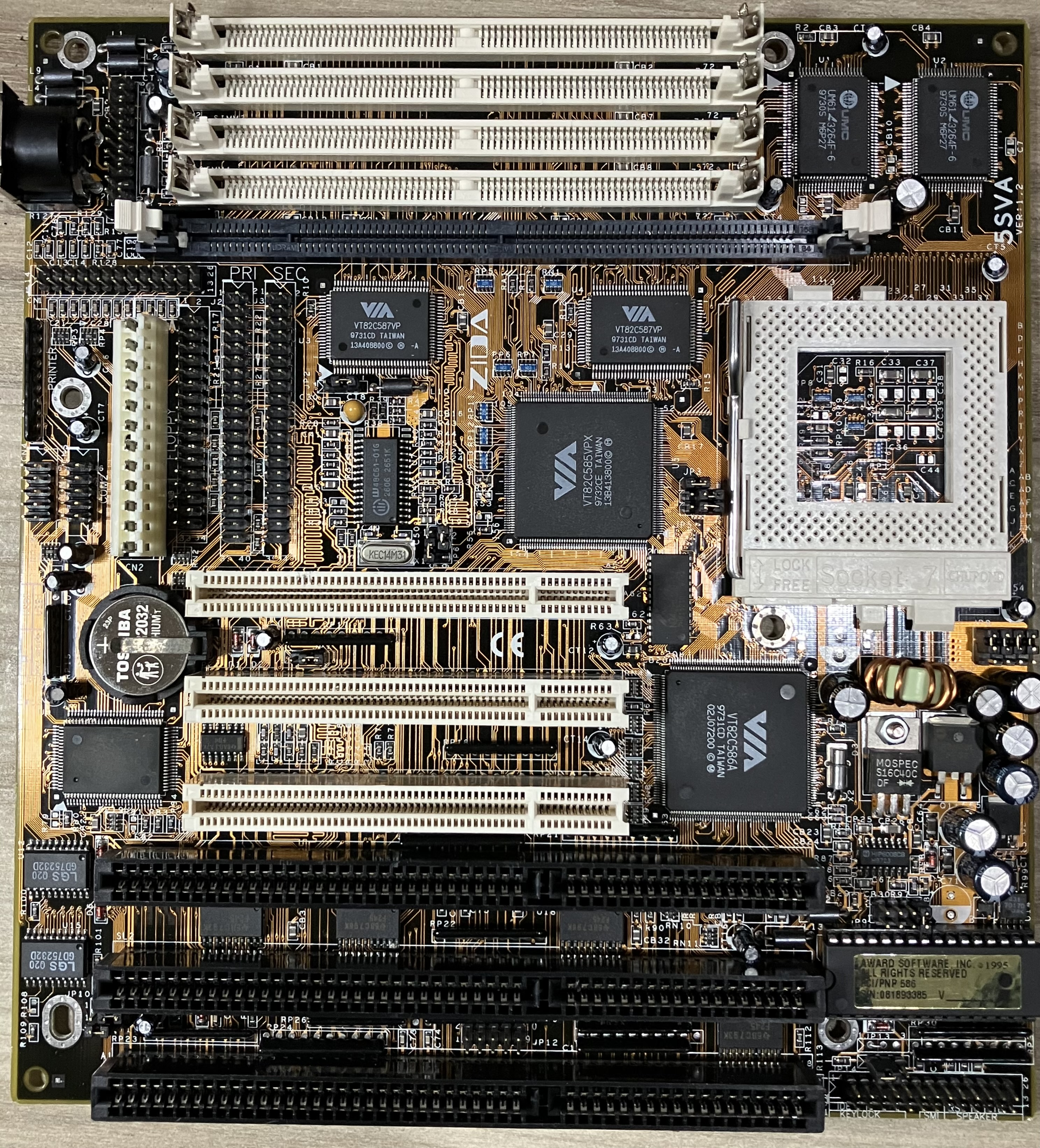

Image 1 of 3 (Microhouse)

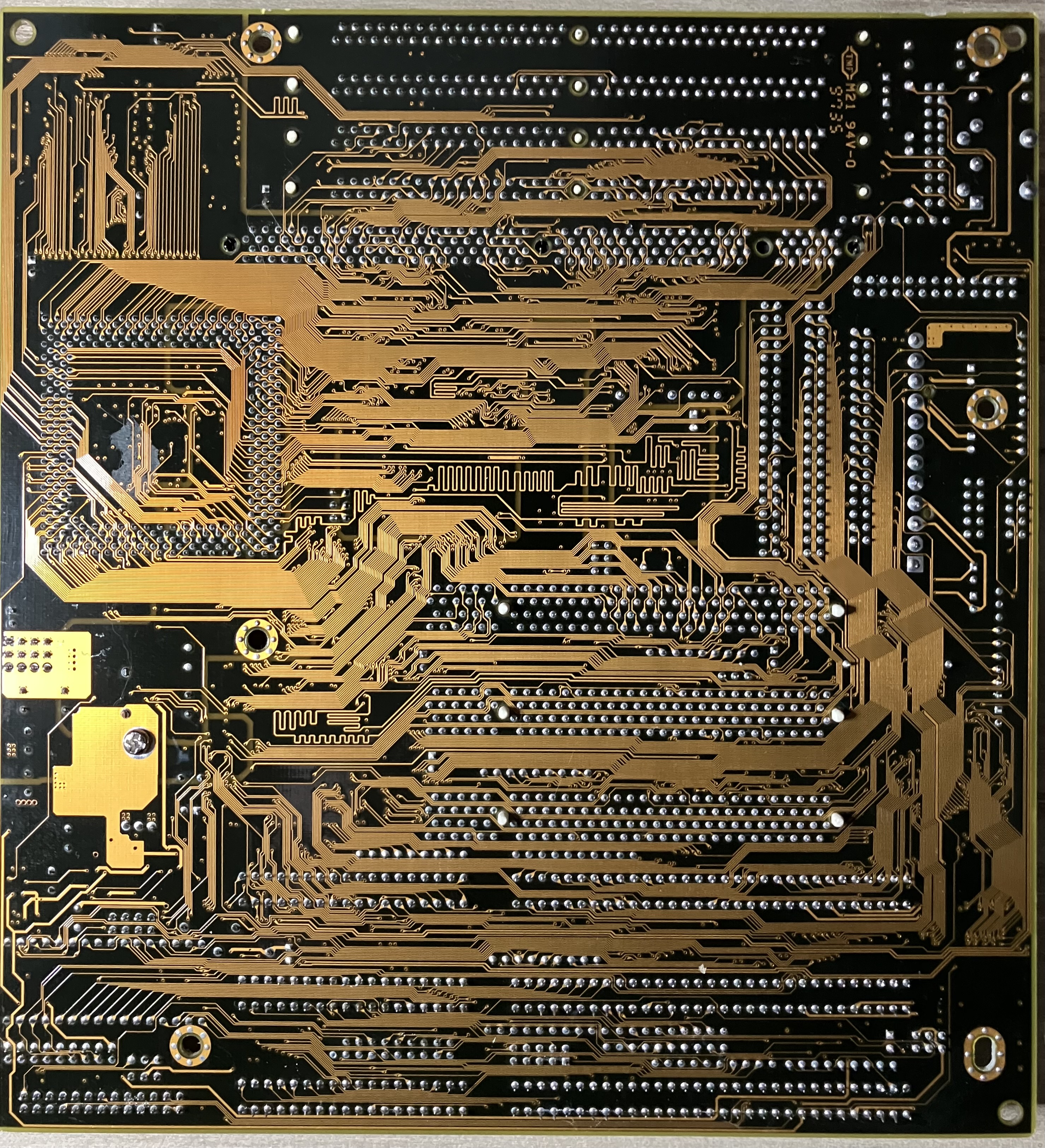

Image 2 of 3 (Matt Esterak)

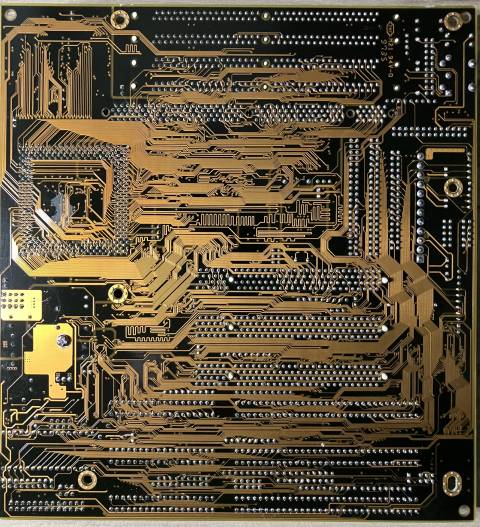

Image 3 of 3 (Matt Esterak)
