XFX MI-A78S-8209
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 230mm
ramMax VRAM size
512MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR2-1066)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
10x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-05-28T14:01:50Z
Board info score is 9.4/10
bios 11 BIOS files available

vendor AMI - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-102008-ATHLON64-C780A380
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-100909-ATHLON64-C780A471
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-090108-ATHLON64-C780A340
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-071809-ATHLON64-C780A451
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-060608-ATHLON64-C780A330
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-053008-ATHLON64-C780A320
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-040709-ATHLON64-C780A431
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-040709-ATHLON64-C780A431
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-010509-ATHLON64-C780A390
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-010509-ATHLON64-C780A390
Note
revert
Core version
080015
BIOS version
Logs

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/30/2005-NF-CK804-6A61FJ19C-00
Note
EVGA/Jetway OEM
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
image1 Image 1 of 7 (XFX)
image2 Image 2 of 7 (Motherboard Continuum)
image3 Image 3 of 7 (Motherboard Continuum)
image4 Image 4 of 7 (Motherboard Continuum)

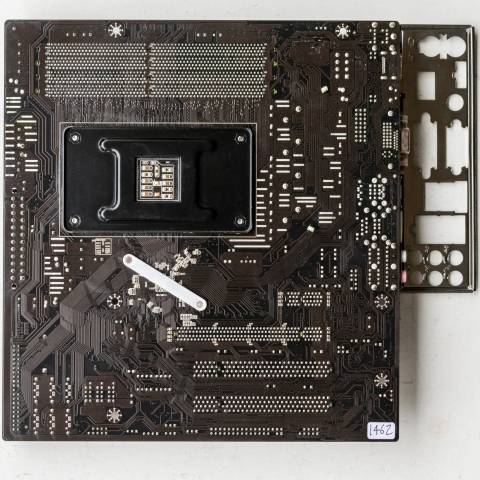

image5 Image 5 of 7 (Motherboard Continuum)

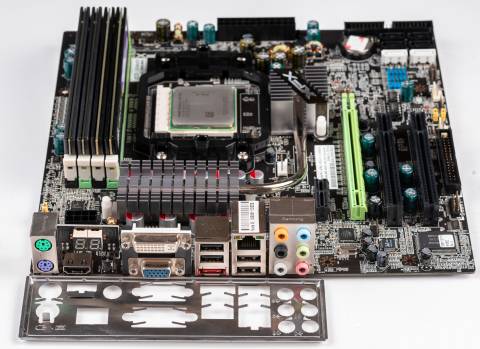

image6 Image 6 of 7 (Motherboard Continuum)
image7 Image 7 of 7 (Motherboard Continuum)
