XFX MD-A72P-7509 V1.0
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR2-1066)
ramRAM types
DDR2 UDIMMDDR2 UDIMM ECC
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
  • XFX nForce 750a SLI
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
12x
USB 2.0
cardExpansion slots
3x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
Last updated 2025-05-28T14:08:57Z
Board info score is 9.4/10
bios 8 BIOS files available

vendor AMI - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-102008-ATHLON64-C780A380
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-100909-ATHLON64-C780A471
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-090108-ATHLON64-C780A340
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-071809-ATHLON64-C780A451
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-071809-ATHLON64-C780A451
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-040709-ATHLON64-C780A431
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-010509-ATHLON64-C780A390
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-010509-ATHLON64-C780A390
Note
Core version
080015
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs

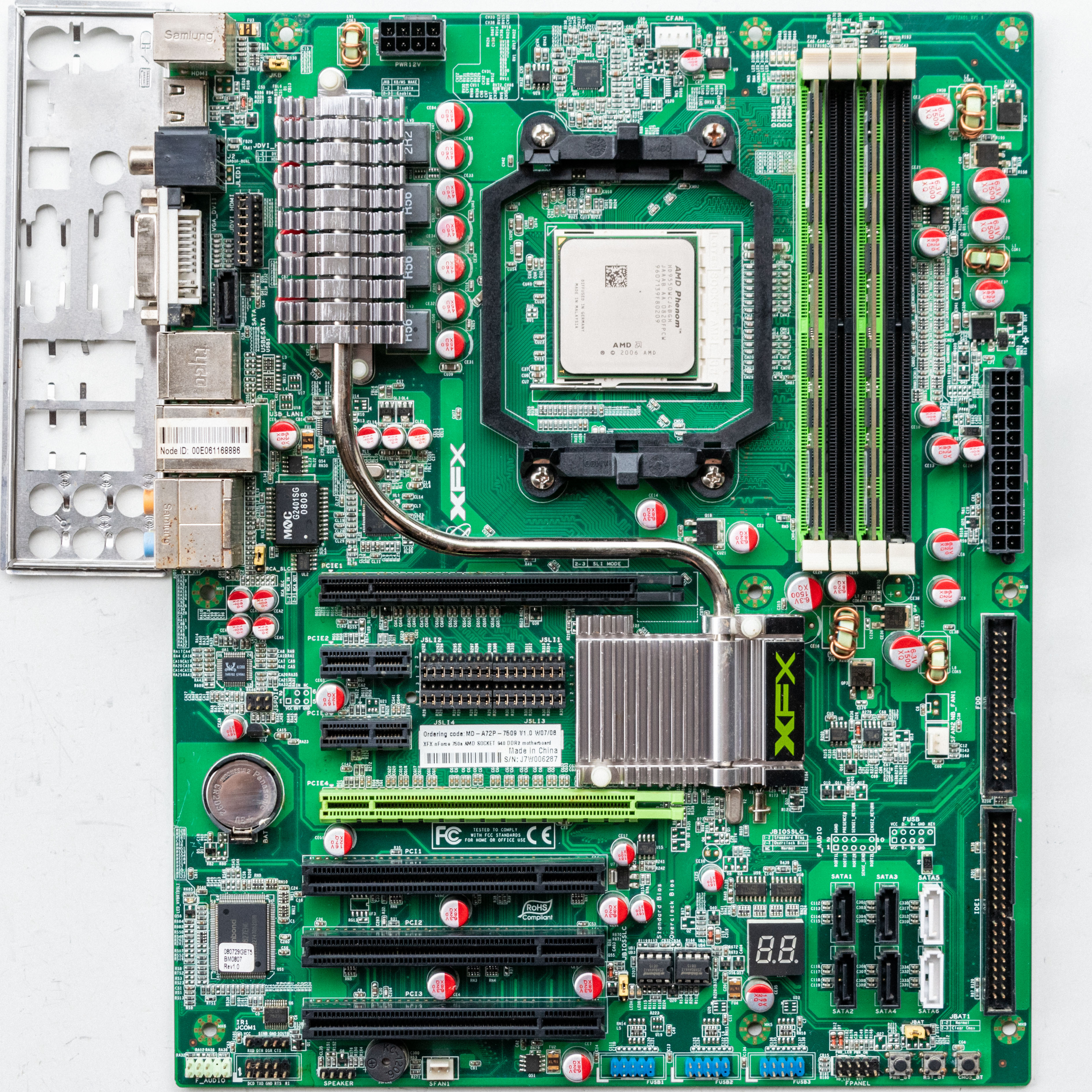

image1 Image 1 of 4 (XFX)
image2 Image 2 of 4 (Motherboard Continuum)

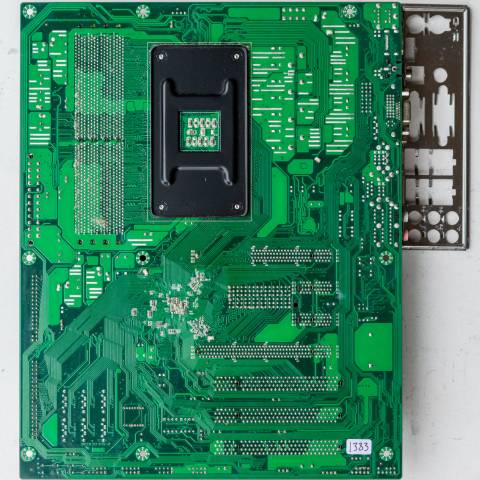

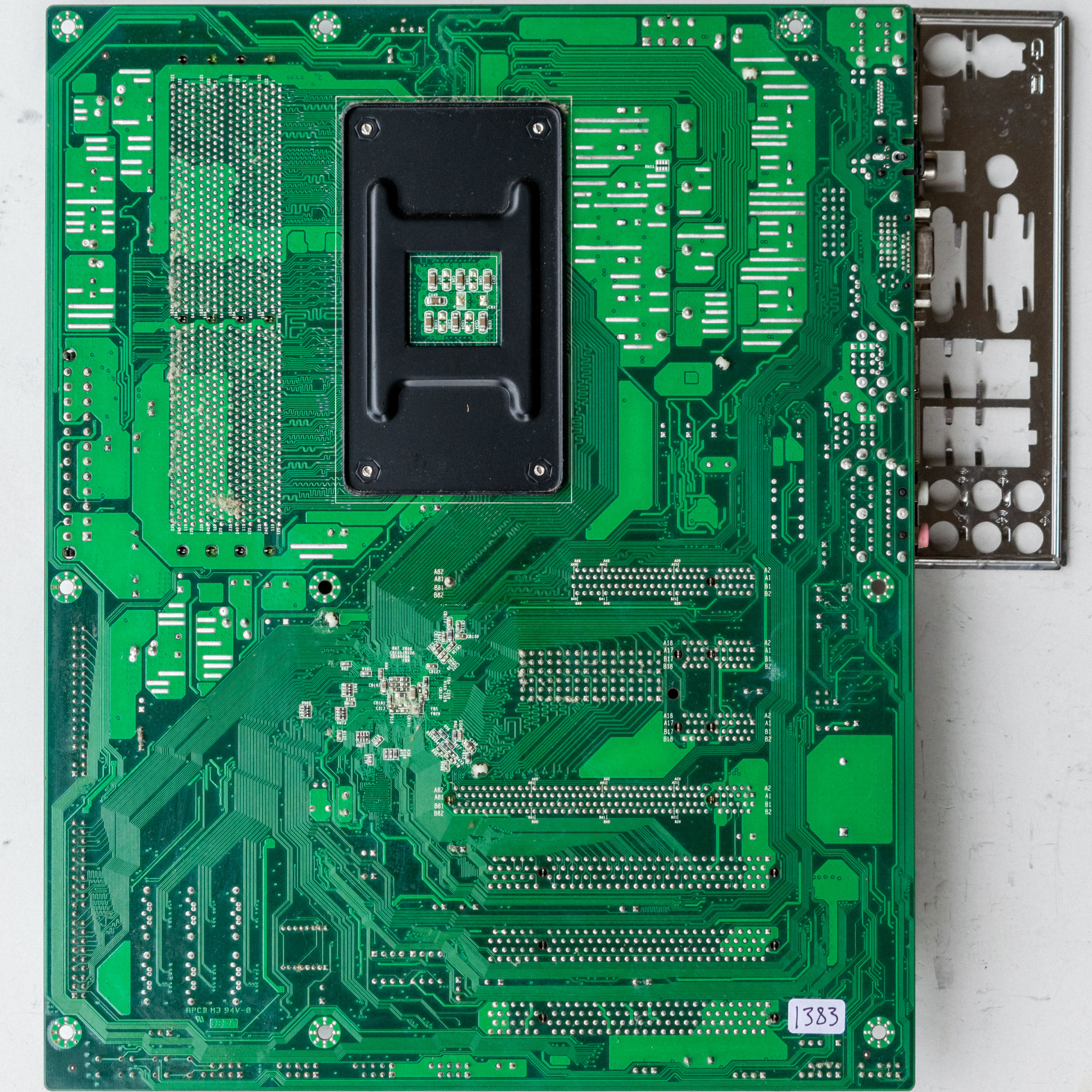

image3 Image 3 of 4 (Motherboard Continuum)

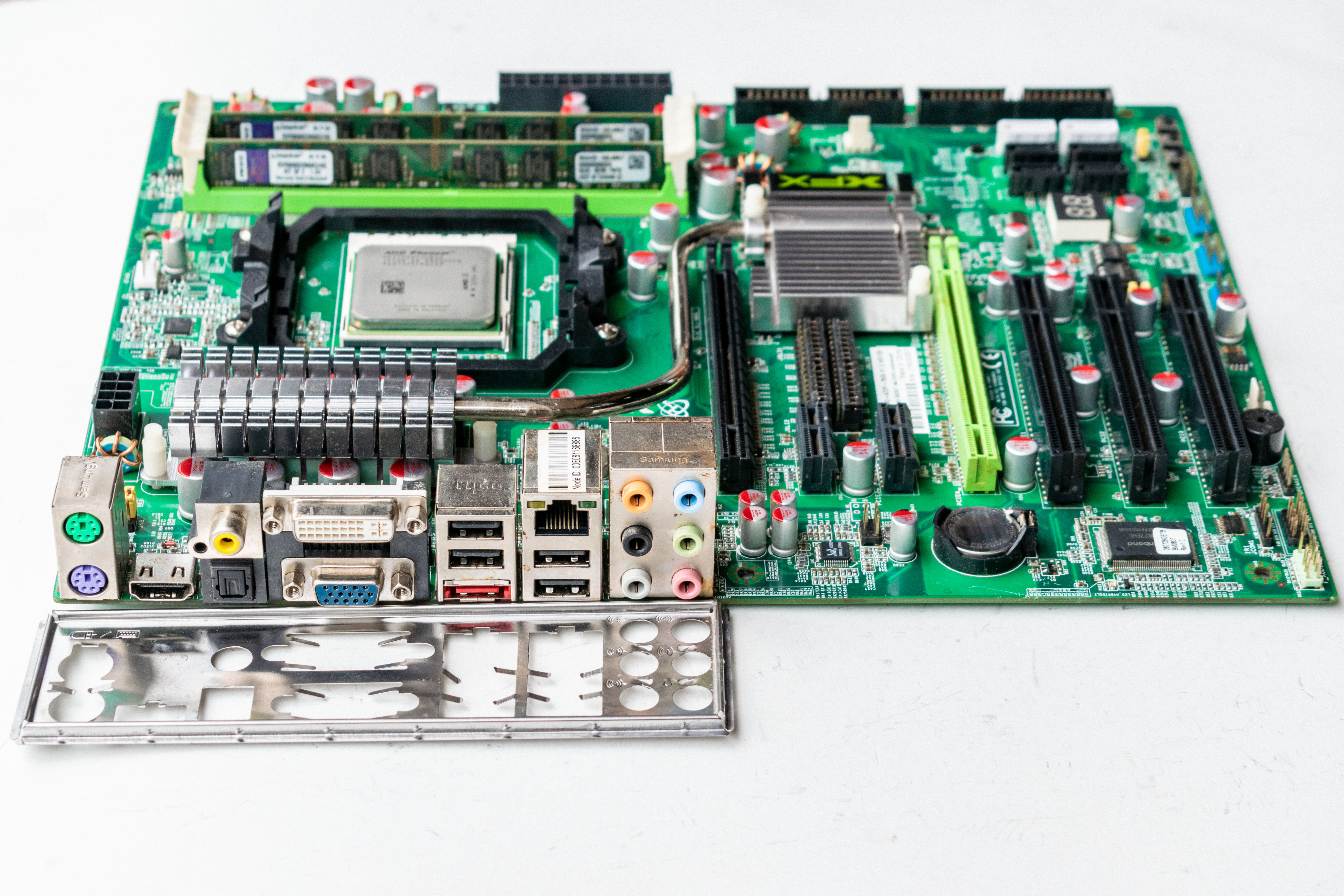

image4 Image 4 of 4 (Motherboard Continuum)
