Winmate IB70
Chipset
Socket
FSB speed Empty
Form factorMini ITX (max 170 x 170 mm)
Dimensions170mm x 170mm
Cache
None/Integrated in the CPU
Max RAM size
8GB
RAM type 204-pin DDR3 SO-DIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
GPIO
1x
HDMI
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
SATA II
4x
Serial
7x
USB 2.0
1x
USB 3.0
1x
VGA
1x
eDP
1x
mSATA
Expansion slots2x
Mini-PCIe
Notes
Optional HDMI and eDP
Uses Fintek F81866 Super IO Chip
Last updated 2025-05-28T13:58:49Z
Board info score is 7.7/10
Chips
CPU family support
0 BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs

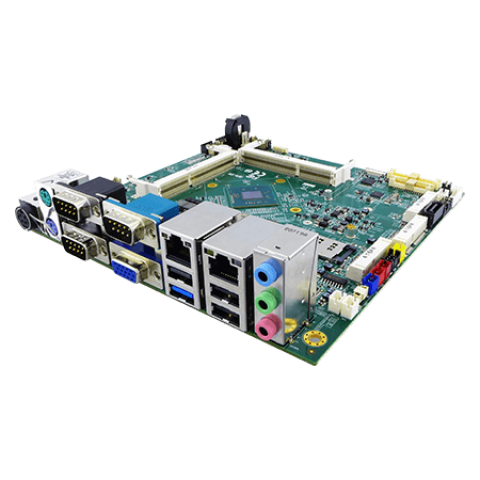

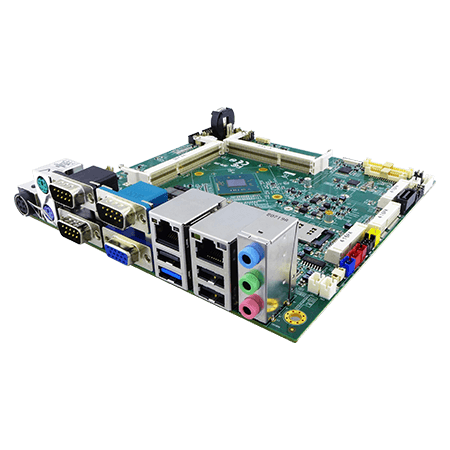

Image 1 of 4 (Winmate)
Image 2 of 4 (Winmate)

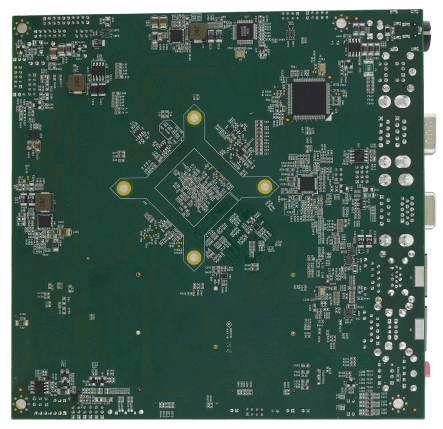

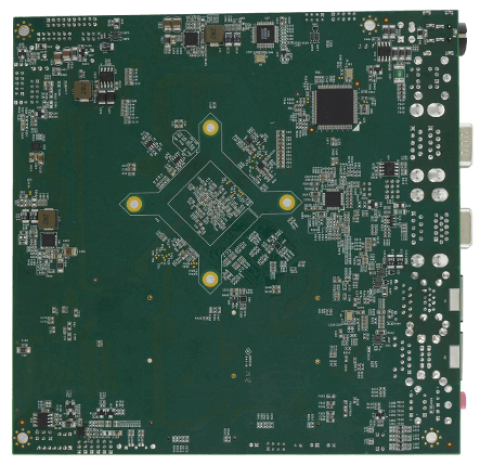

Image 3 of 4 (Winmate)

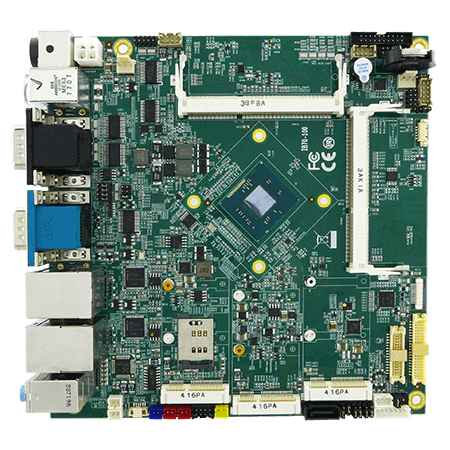

Image 4 of 4 (Winmate)
