VIA VT5580A
Logs
chipChipset
cpuSocket
Socket 423 (PGA423)
speedFSB speed
400MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • VIA P4X266 Reference board
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
6x
USB 1.x
cardExpansion slots
3x
32-bit PCI
1x
Universal AGP
wrench Known issues
  • Engineering Sample

This is an engineering sample, not a final product, for testing and evaluation.

  1. Compatibility: Limited compatibility with hardware, software, or peripherals.
  2. Stability: Potential for crashes, freezes, or unexpected behavior.
  3. Performance: Differences in memory bandwidth, data transfer rates, or overall system performance.
  4. Feature Limitations: Missing or incomplete features compared to the final product.
  5. Engineering Features: Additional options or settings not found in commercial versions.
notes Notes

Reference VIA P4X266 motherboard, featured in an iXBIT LABS article

Last updated 2025-05-26T11:30:22Z
Board info score is 5.8/10
bios 0 BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.43V
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs

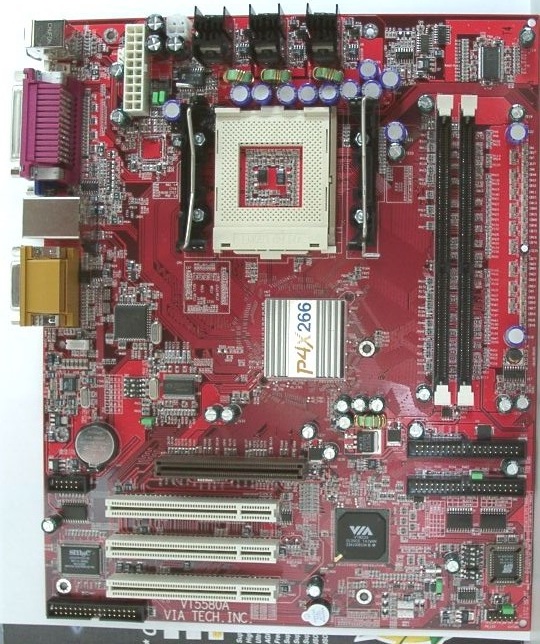

image1 Image 1 of 1 (iXBT LABS)
