VIA EPIA SP Rev:C
Logs
chipChipset
cpuSocket
EBGA368
speedFSB speeds
66MHz100MHz133MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
FireWire 400
2x
IDE interface
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA I
2x
Serial
1x
TV-Out
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

Last updated 2025-07-29T17:23:19Z
Board info score is 9.3/10
chip Chips
-> Chipset part
VIA VT3118 (CN400) VIA VT8237
-> Audio
VIA VT1617A (AC97)
-> FireWire ctrl.
VIA VT6307 (2 port FireWire 400 PCI ctrl.)
-> Network
VIA VT6103 (Rhine II Fast Ethernet PHY)
-> Video
VIA VT1623
cpufam CPU family support
Empty
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/11/2005-CN400-8237-CN400I10C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/01/2004-CN400-8237-CN400I10C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 11 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
3.32
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
Size
4.1MB
Filename
Name
Version
16.01.23.16
OS support
Windows 9x
Arch
Size
8.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000 Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
Name
Version
6.14.10.0380
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
6.2MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
6.9MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12-15
File
Logs
Chip
Release date
File
Logs

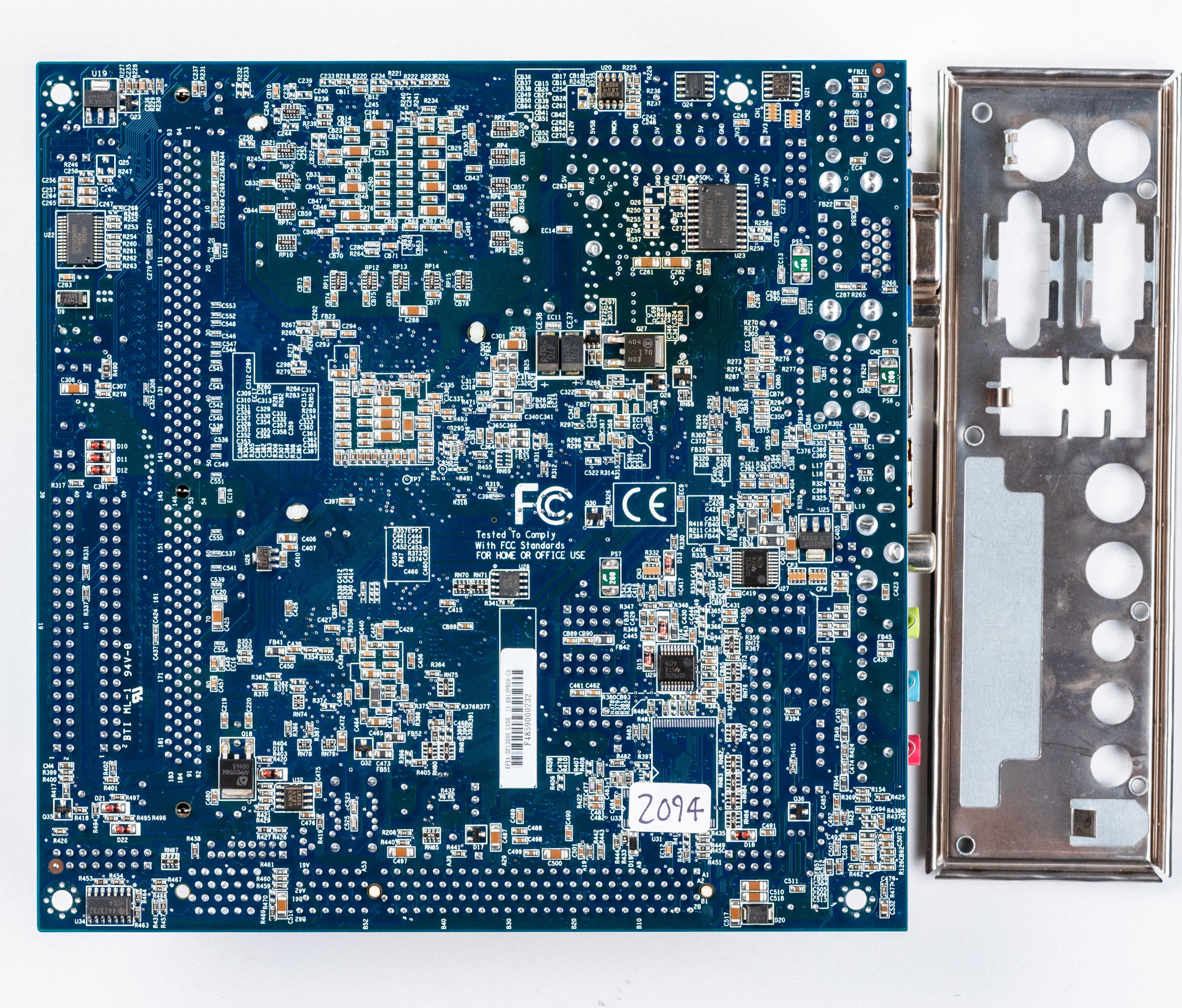

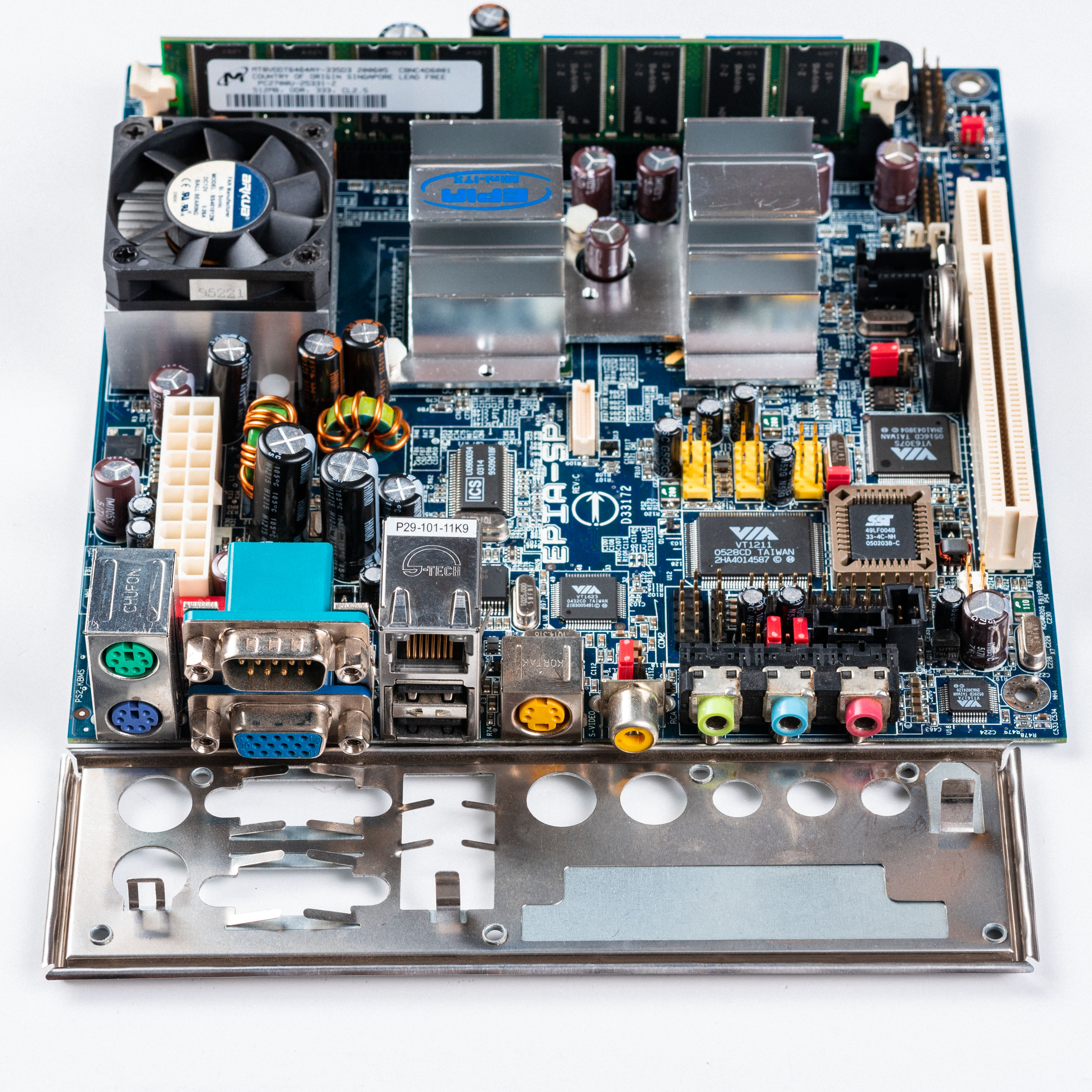

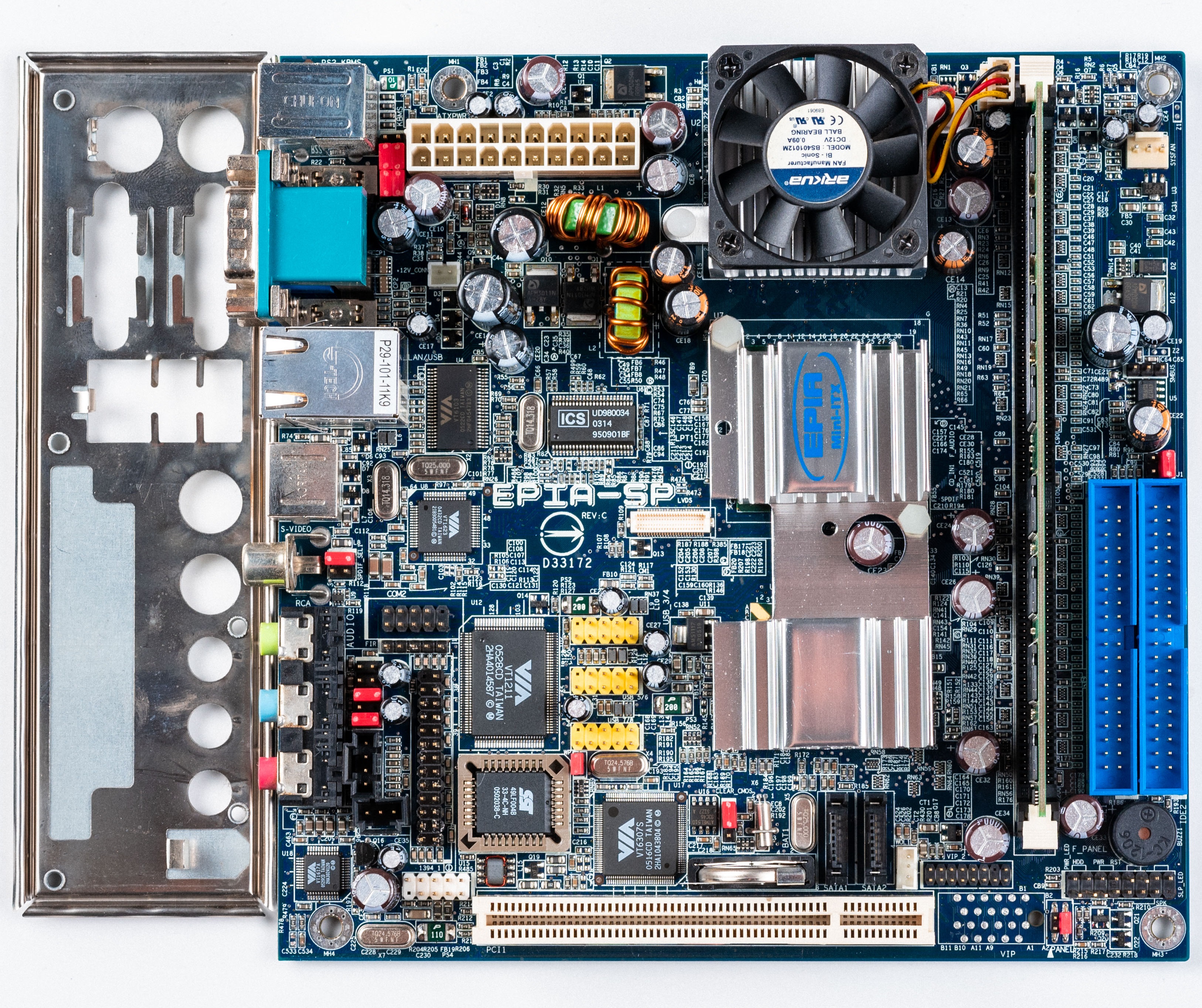

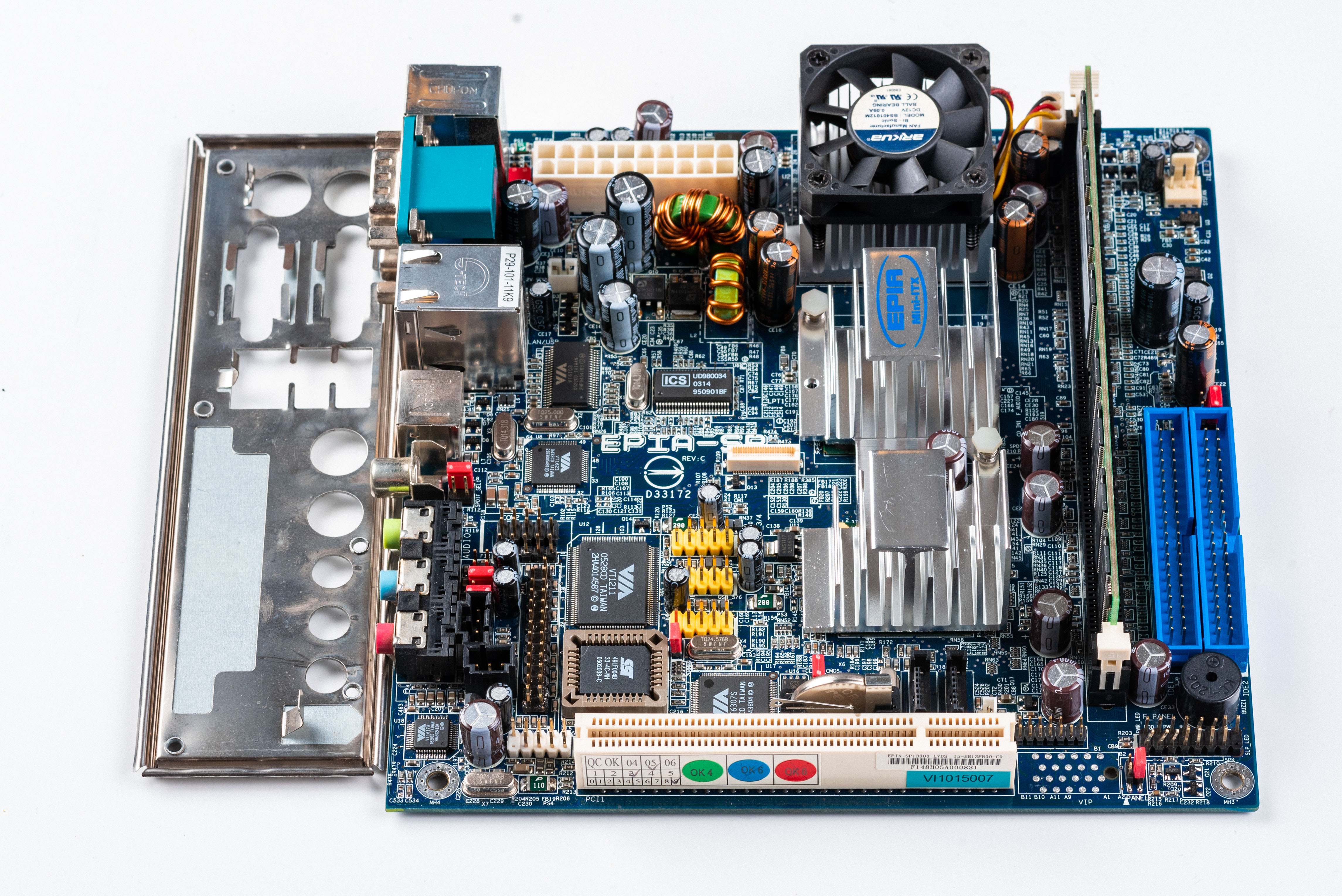

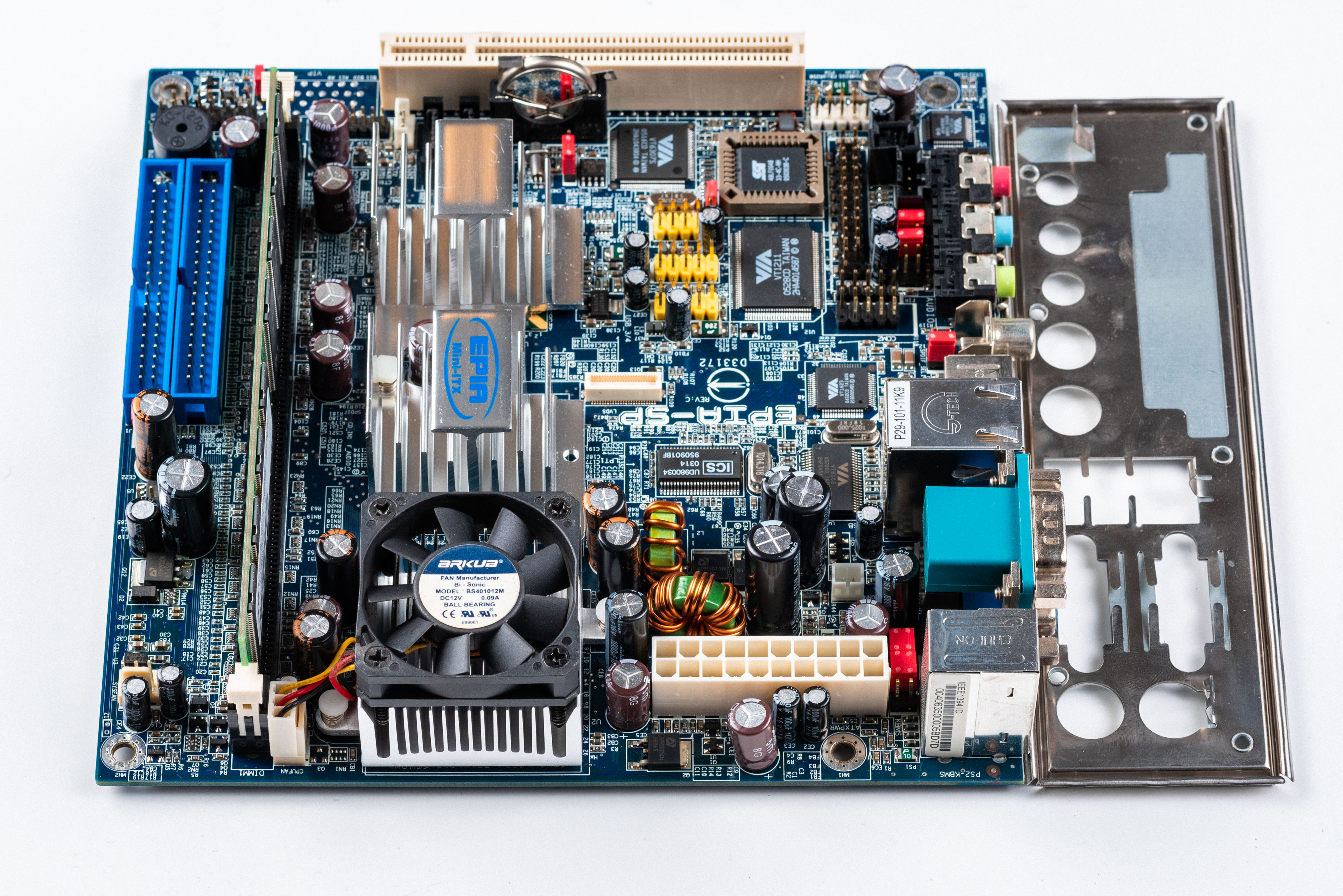

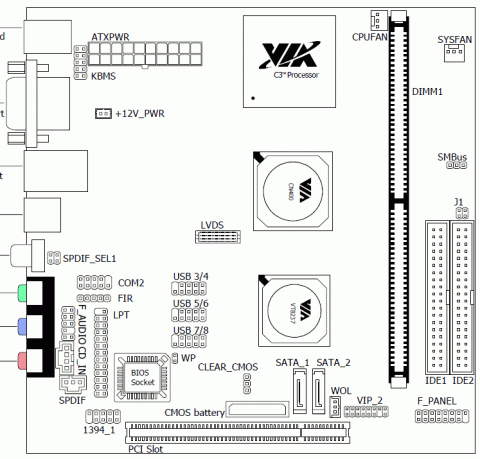

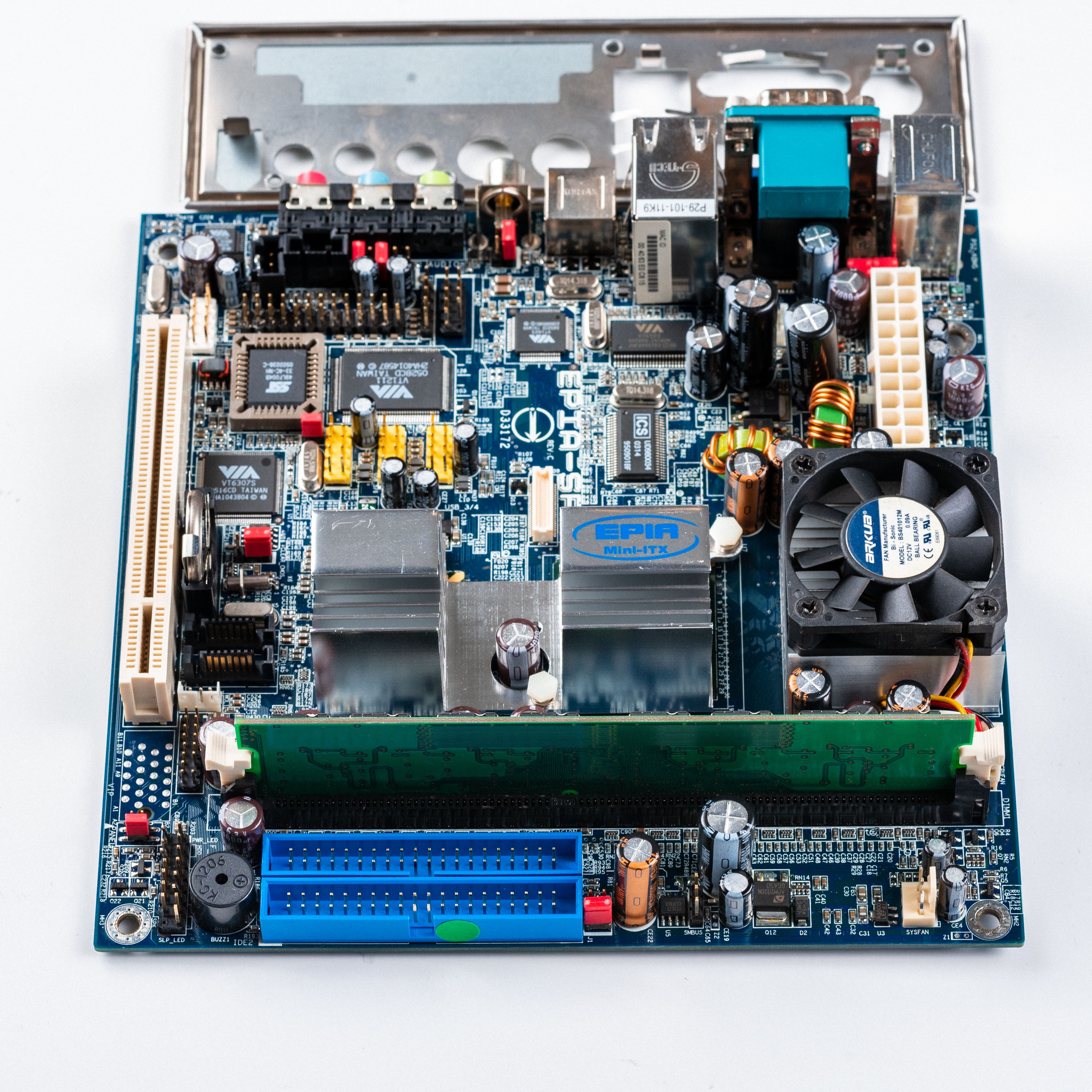

image1 Image 1 of 7 (VIA)
image2 Image 2 of 7 (Motherboard Continuum)
image3 Image 3 of 7 (Motherboard Continuum)
image4 Image 4 of 7 (Motherboard Continuum)
image5 Image 5 of 7 (Motherboard Continuum)
image6 Image 6 of 7 (Motherboard Continuum)
image7 Image 7 of 7 (Motherboard Continuum)
