VIA EPIA N
Logs
chipChipset
cpuSocket
CoreFusion (BGA841)
speedFSB speed
133MHz
moboForm factor
Nano ITX (max 120 × 120 mm)
dimDimensions
120mm x 120mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
200-pin DDR SO-DIMM
pwrPSU connector
Nano-ITX (12-pin ATX)
tag Also known as
connI/O ports
1x
DVI
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S-Video
1x
SATA I
1x
TV-Out
6x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit mini-PCI
Last updated 2025-10-18T10:34:46Z
Board info score is 9.8/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/10/2005-CN400-8237-CN400N03C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000 Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12-15
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs

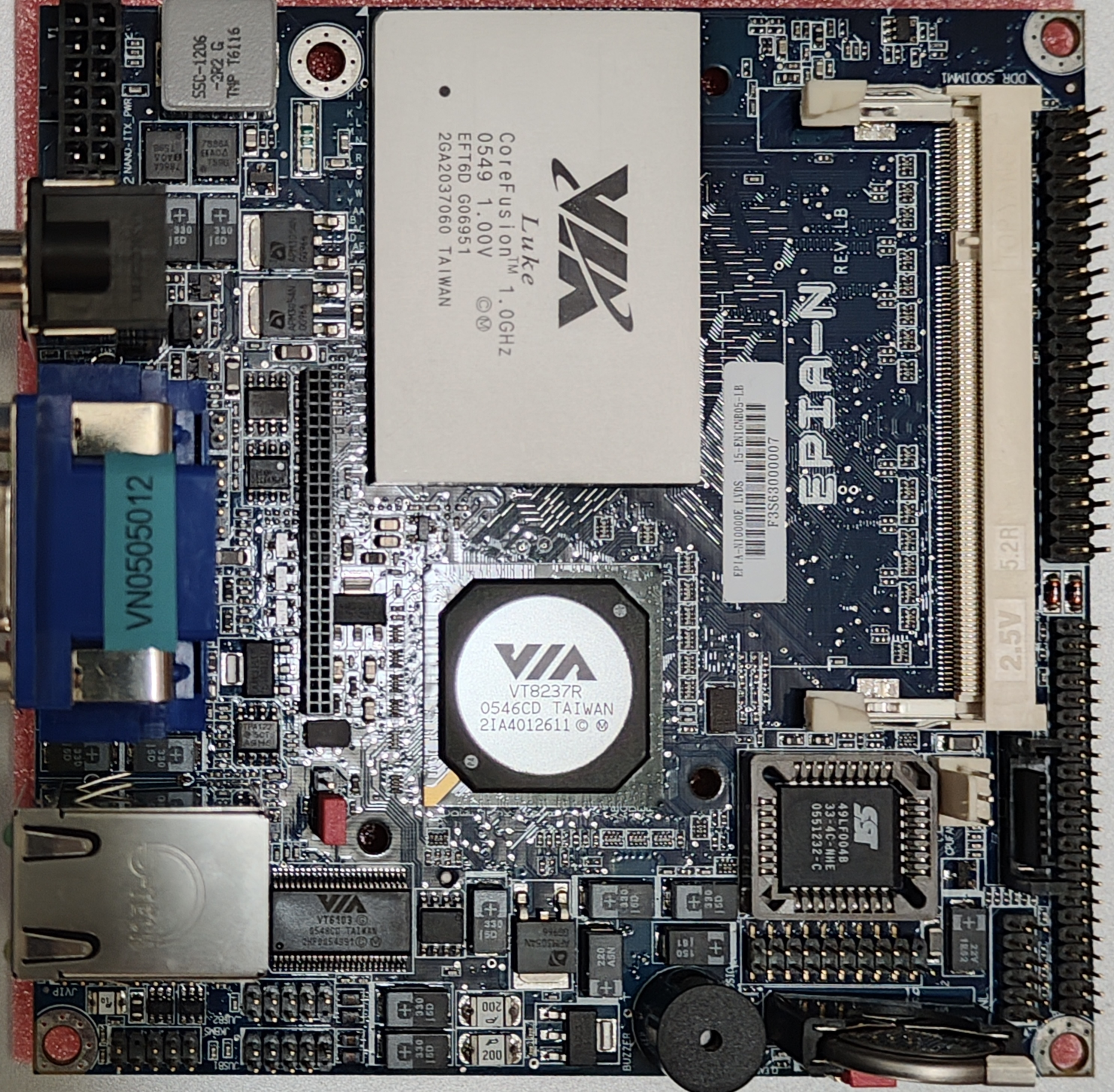

image1 Image 1 of 5 (evasive)
image2 Image 2 of 5 (kothnaaken)

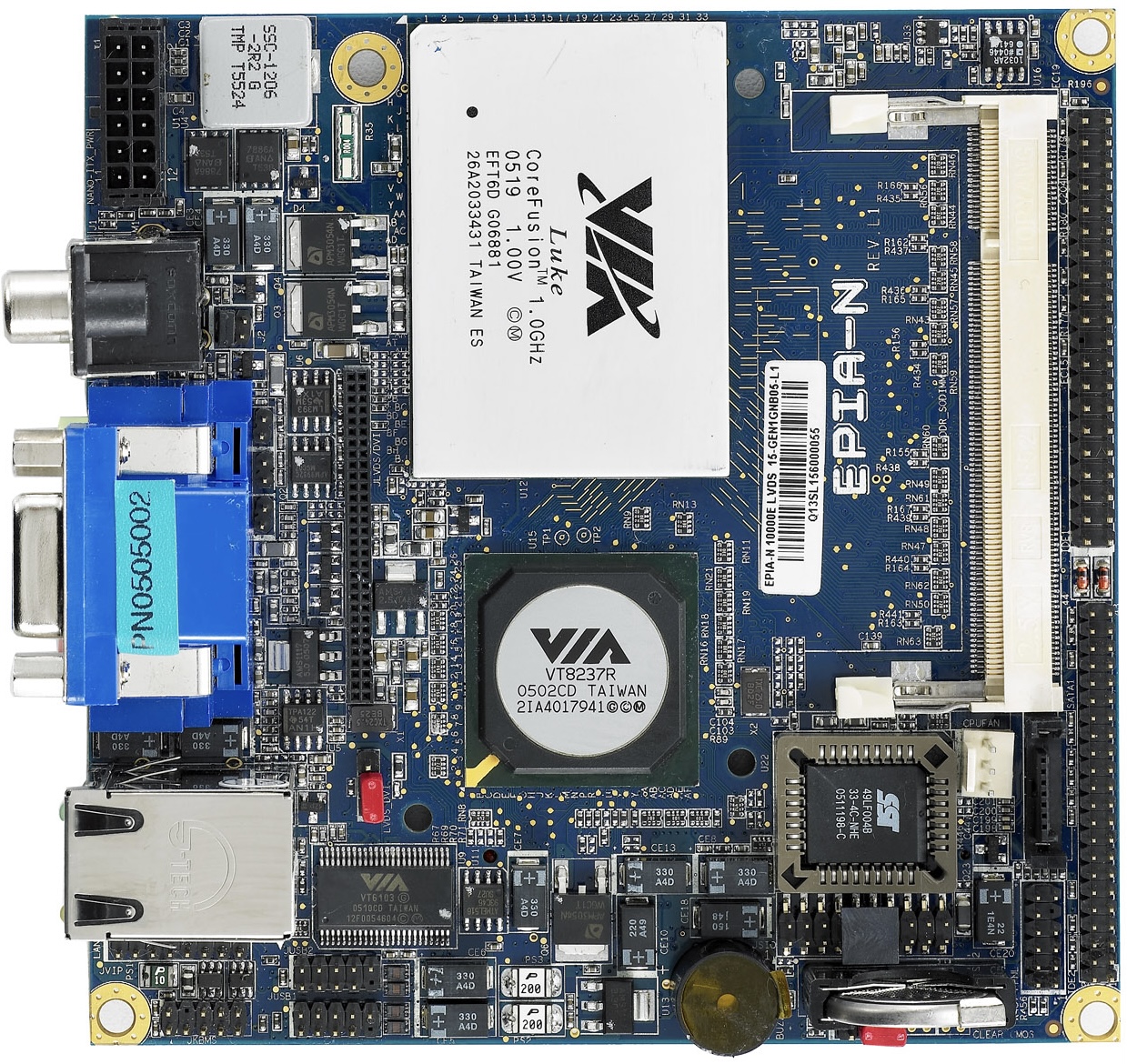

image3 Image 3 of 5 (VIA)
image4 Image 4 of 5 (kothnaaken)

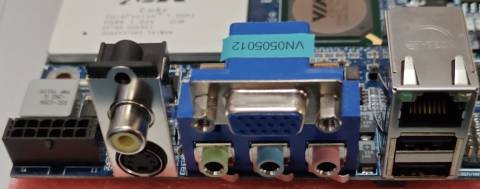

image5 Image 5 of 5 (kothnaaken)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
