VIA EPIA-M850
Logs
chipChipset
cpuSocket
NanoBGA2 (BGA400)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170 mm x 170 mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
HDMI
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA II
1x
SD Card Slot
4x
Serial
12x
USB 2.0
2x
VGA
cardExpansion slots
1x
PCIe x4
wrench Known issues
  • Engineering Sample

This is an engineering sample, not a final product, for testing and evaluation.

  1. Compatibility: Limited compatibility with hardware, software, or peripherals.
  2. Stability: Potential for crashes, freezes, or unexpected behavior.
  3. Performance: Differences in memory bandwidth, data transfer rates, or overall system performance.
  4. Feature Limitations: Missing or incomplete features compared to the final product.
  5. Engineering Features: Additional options or settings not found in commercial versions.
Last updated 2025-07-25T15:49:42Z
Board info score is 7.3/10
bios 0 BIOS files available
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
image1 Image 1 of 2 (VIA)

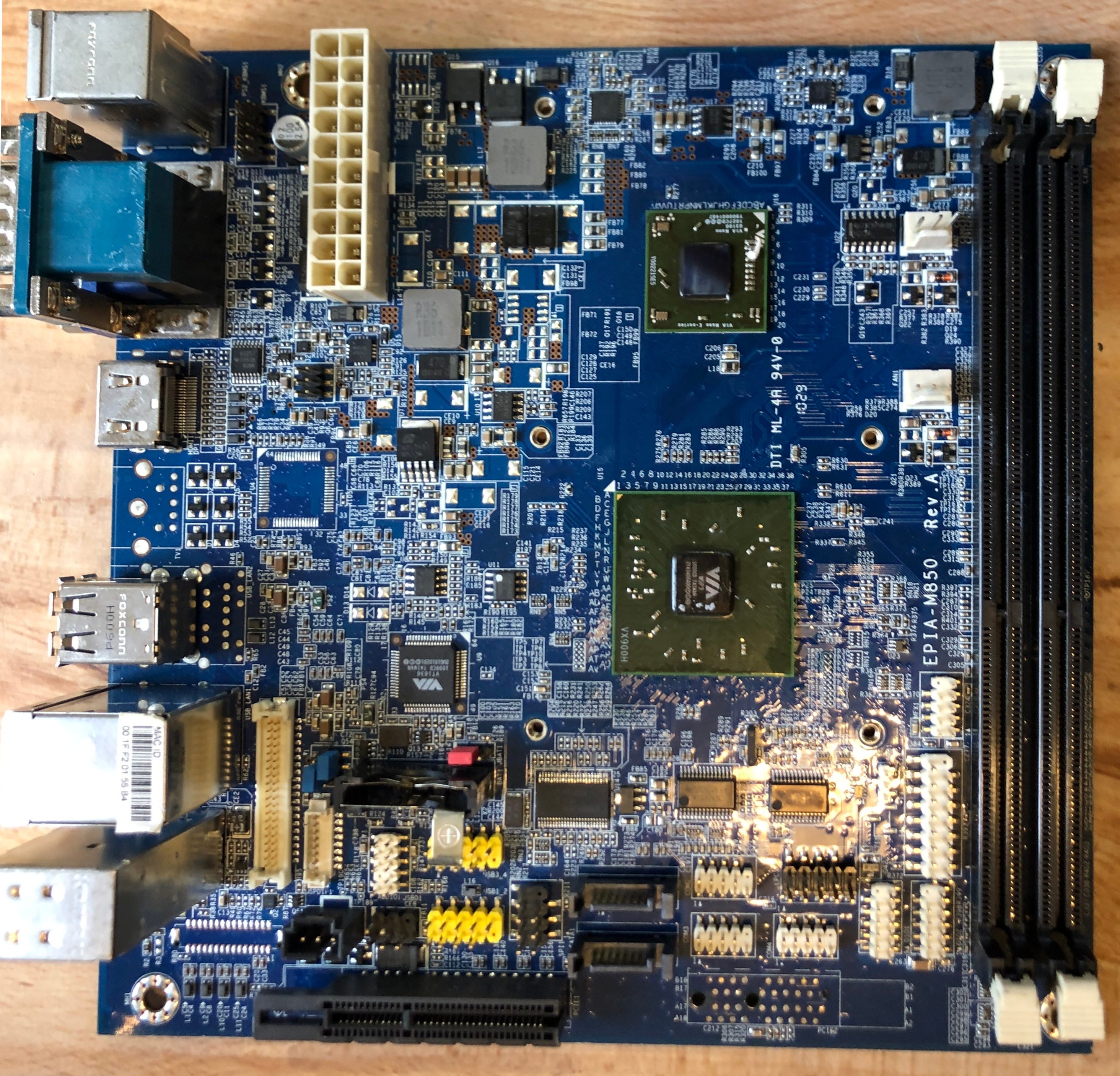

image2 Image 2 of 2 (cpushack)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
