[Unknown] PCI486 V1-HJ2
Chipset
Socket
FSB speeds 25MHz33MHz40MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Cache
0B256KB512KB1MB
Max RAM size
Empty
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Known issues
- Fake cache
The motherboard may include a non-functional or counterfeit SRAM cache, which can adversely affect performance. Signs of fake cache often include soldered DIP-chips and no jumpers to set the chache size. Cache functionality can usually be restored by installing proper chips, jumpers and a BIOS update/mod.
Last updated 2024-12-08T12:56:18Z
Board info score is 7.2/10
Chips
-> Chipset part
-> Signal transmitter/receiver
-> Super I/O
CPU family support
2 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
41-C104-428027-00101111-101094-ALI87/89-U
Note
Core version
101094
BIOS version
Logs
POST string
41-C103-428027-00101111-101094-ALI87/89-U
Note
Core version
101094
BIOS version
C103
Logs
POST string
41-C101-428027-00101111-101094-ALI87/89-U
Note
Core version
101094
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.06a
OS support
MS-DOS
OS/2 Warp 3.x
SCO Unix - OpenServer
Windows 3.1x
Windows NT 3.5x
Arch
x86
Size
104.9KB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Family
Release date
File
Logs
Image 1 of 2 (BurnedPinguin)

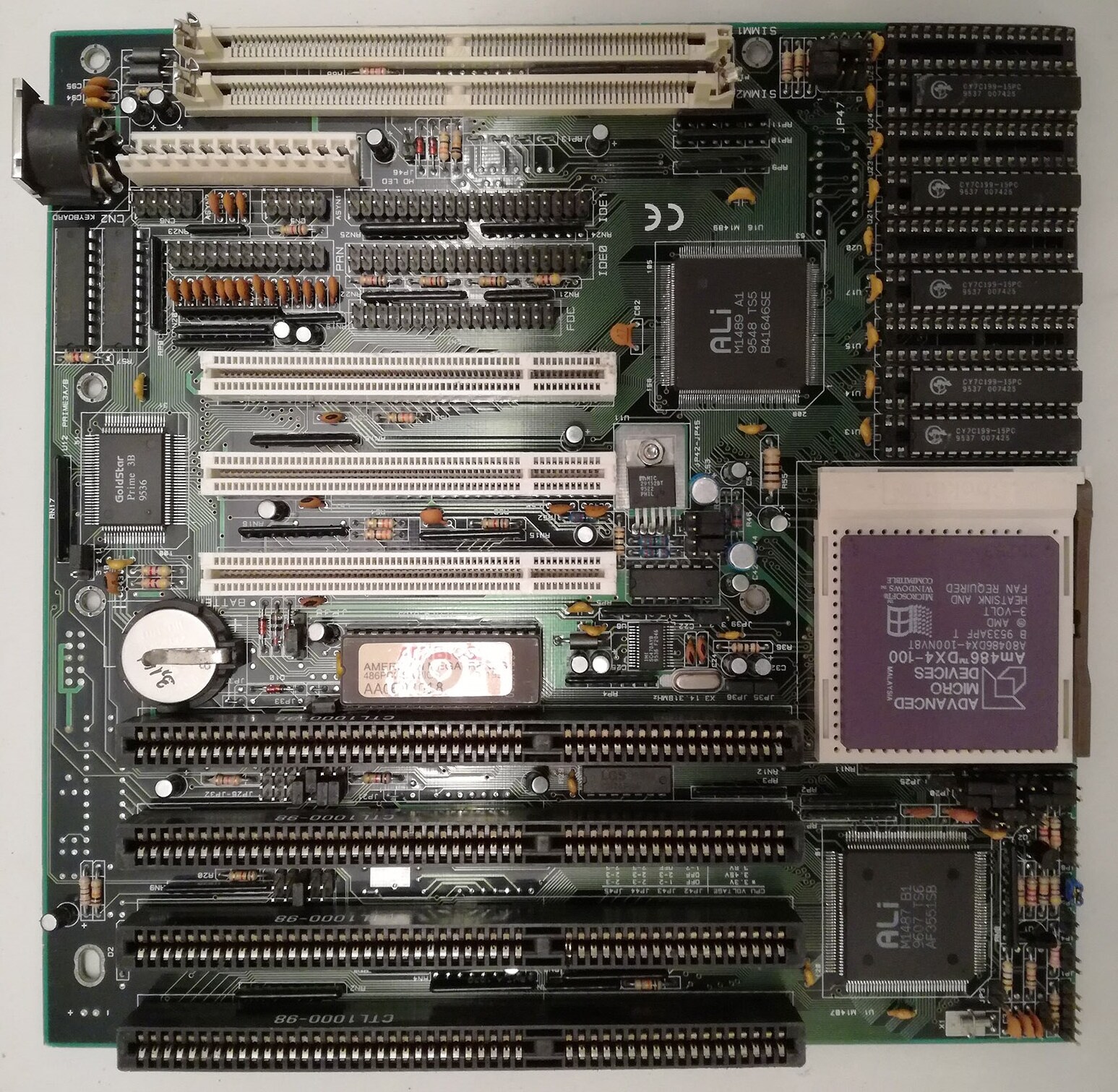

Image 2 of 2 (quicknick)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
