[Unknown] PCB486i4879A
Chipset
Socket
FSB speeds 25MHz33MHz
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Max RAM size
RAM type
PSU connector
Also known as
- Unknown PCB 48614879A
- Unknown PCI486 ALI NI-1487/89
- KT Technology KTAUTO
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Notes
listed as TMC but unconfirmed as of yet
Last updated 2024-12-08T12:15:30Z
Board info score is 7.6/10
Chips
-> Chipset part
-> Clock Synth / PLL
-> Signal transmitter/receiver
-> Super I/O
CPU family support
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/11/95-ALI-1487/89- ALI5119 -00
Note
Core version
4.50G
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.06a
OS support
MS-DOS
OS/2 Warp 3.x
SCO Unix - OpenServer
Windows 3.1x
Windows NT 3.5x
Arch
x86
Size
104.9KB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Family
Release date
File
Logs

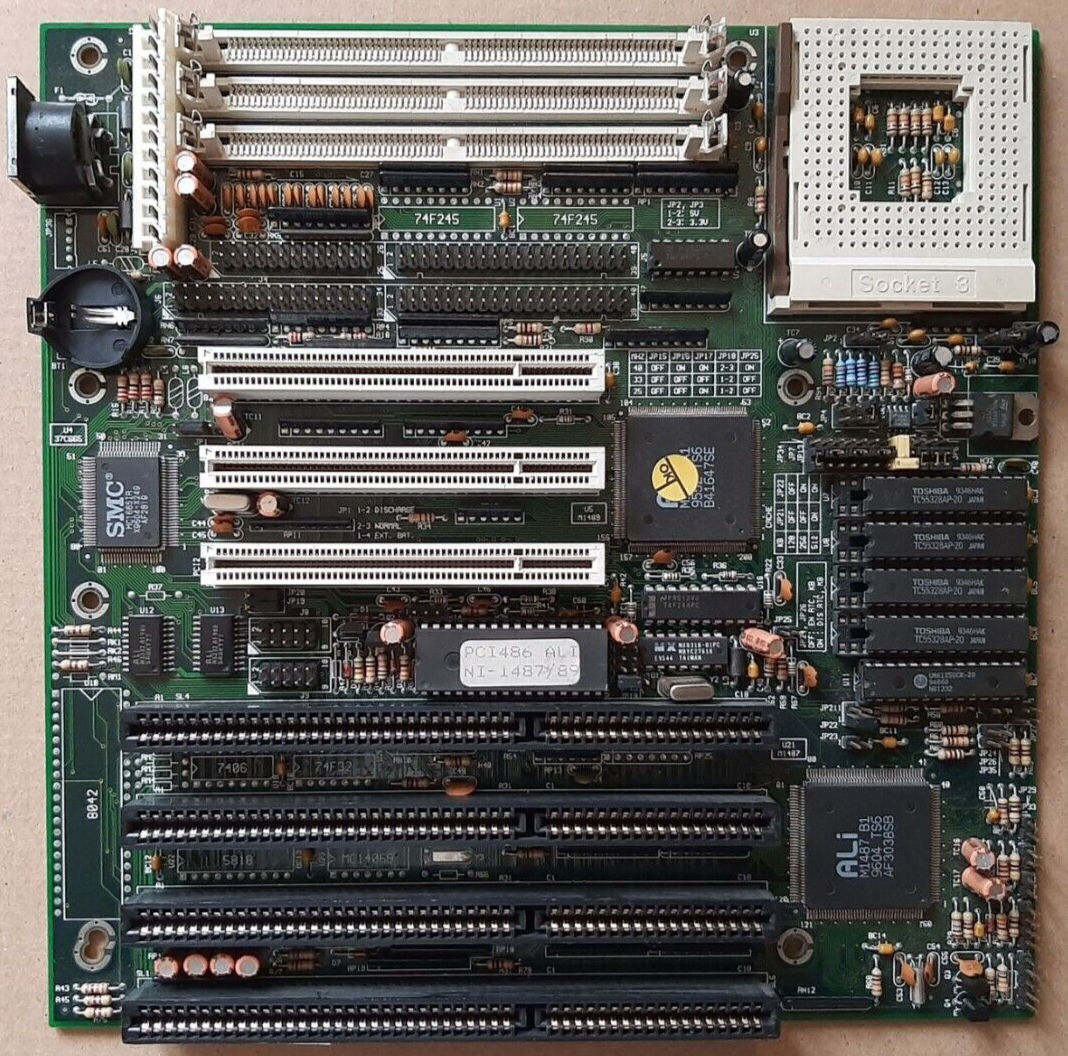

Image 1 of 5

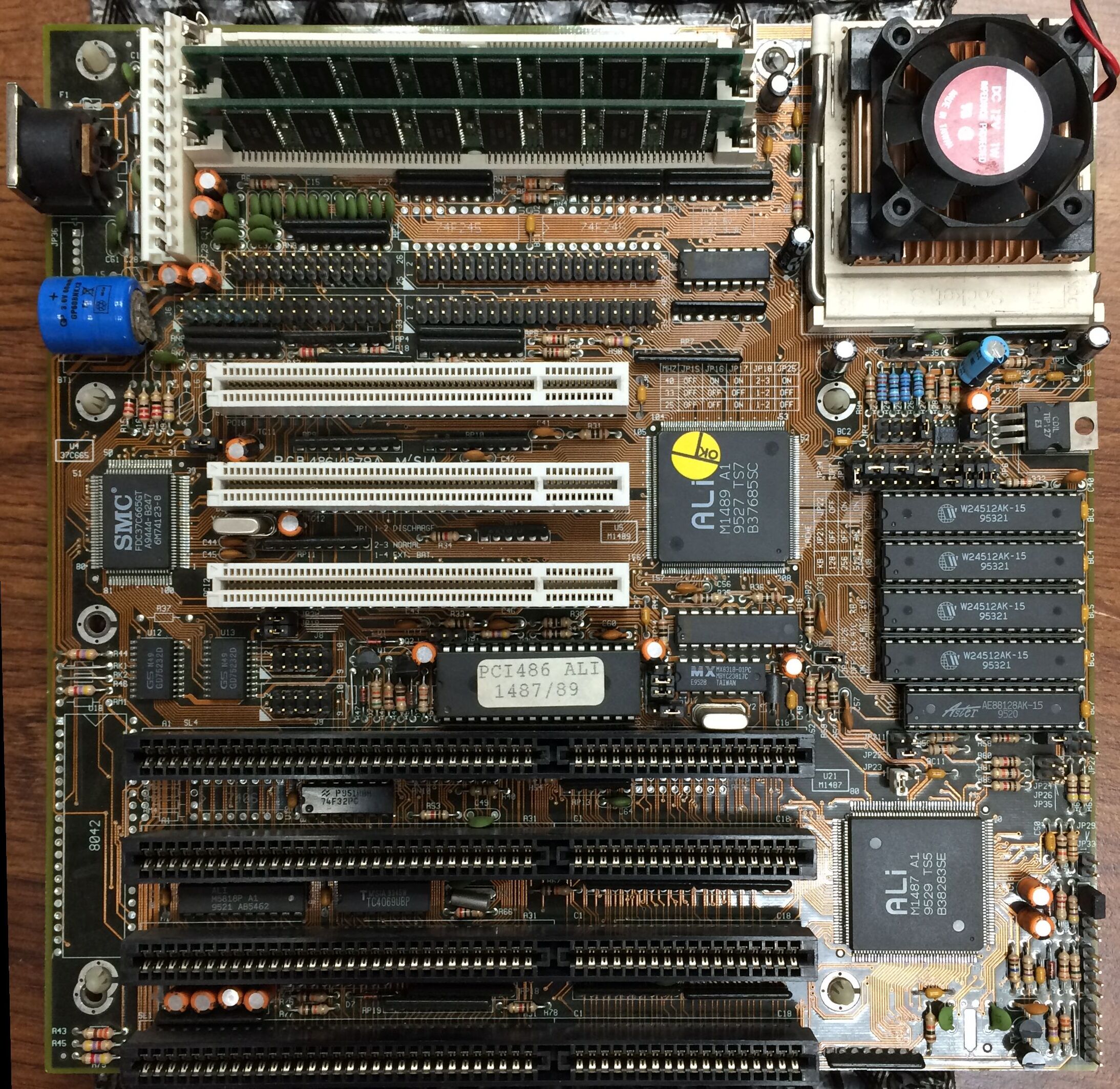

Image 2 of 5 (Montgomery)

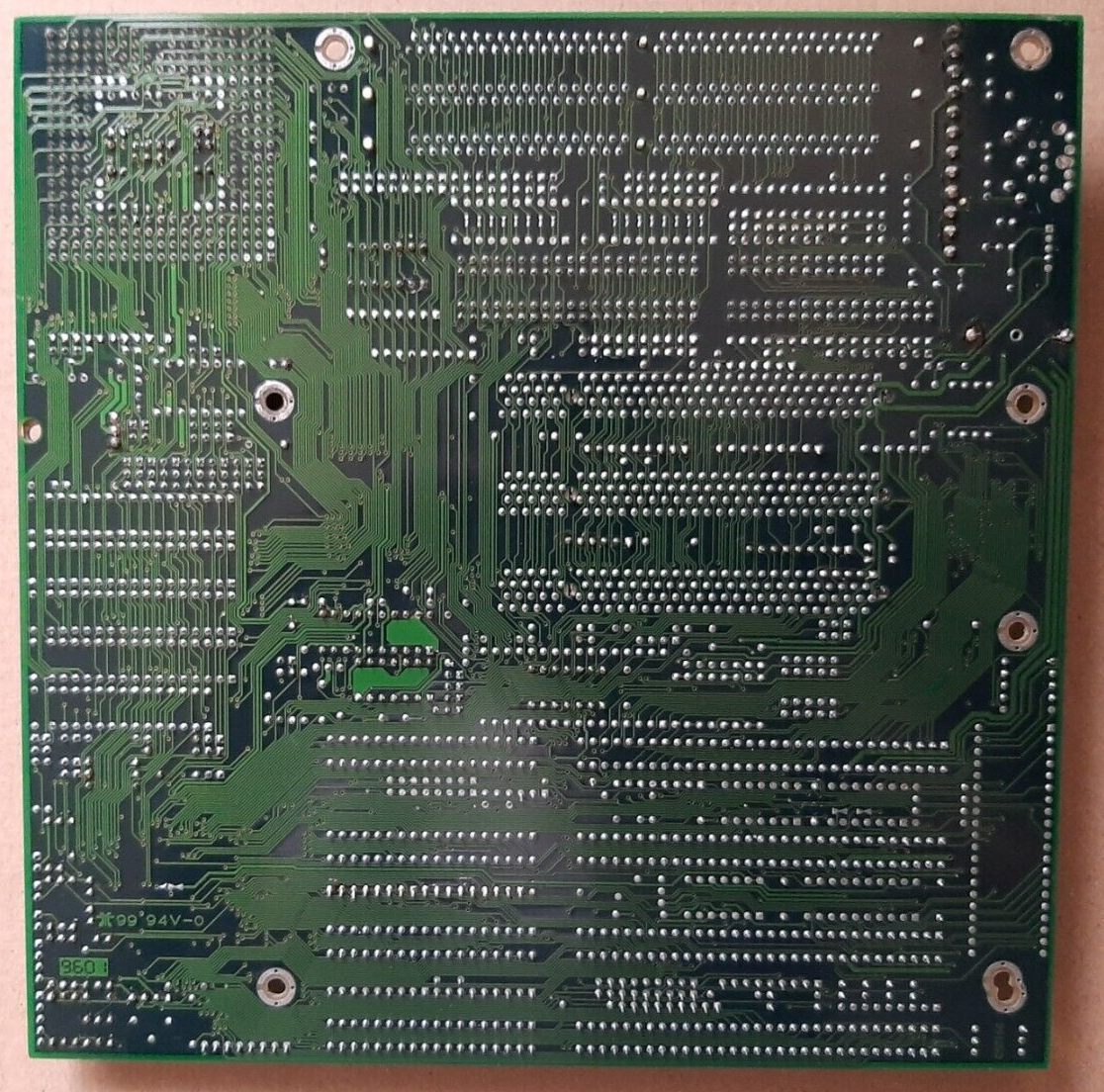

Image 3 of 5 (AMDMania)

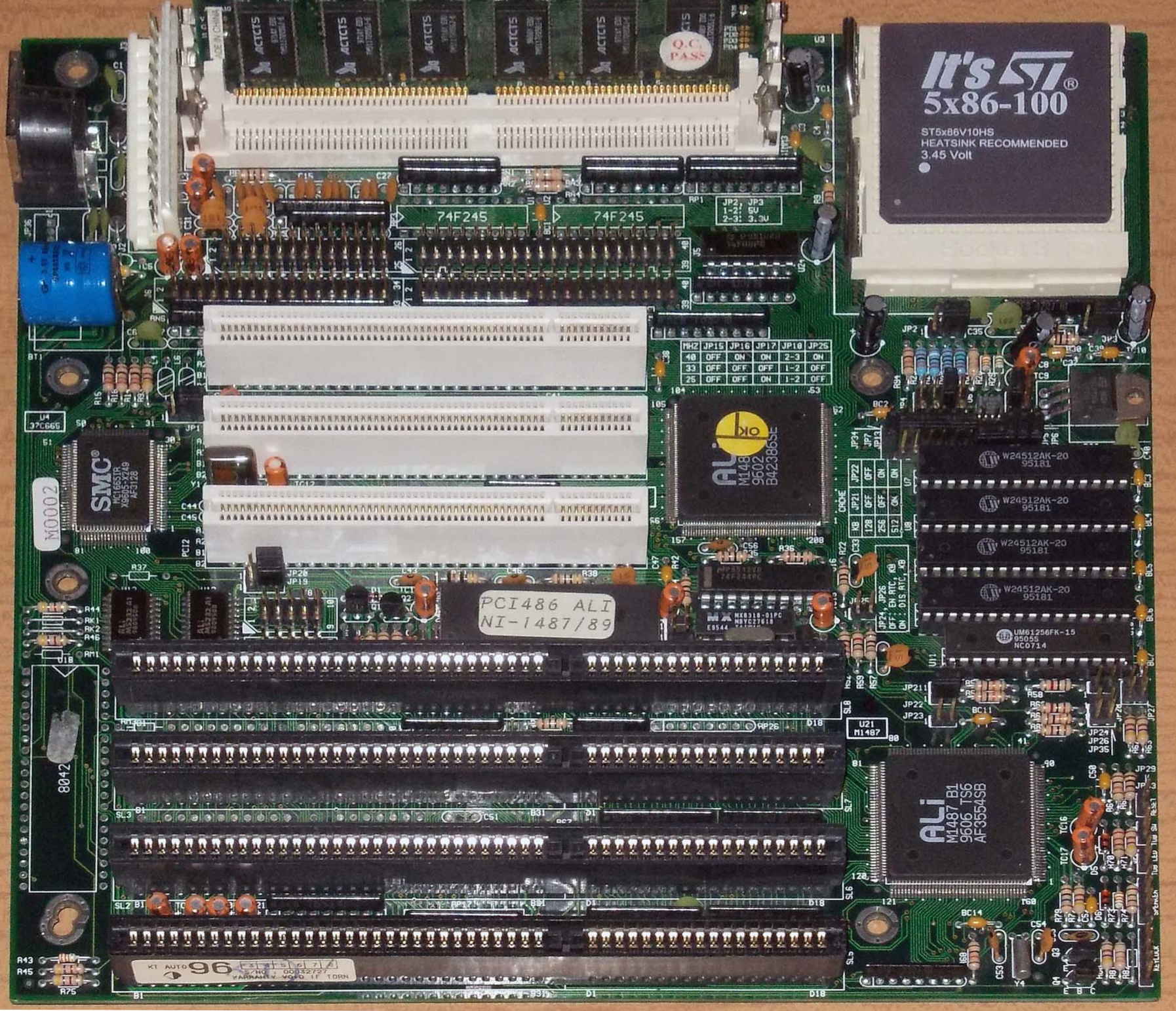

Image 4 of 5

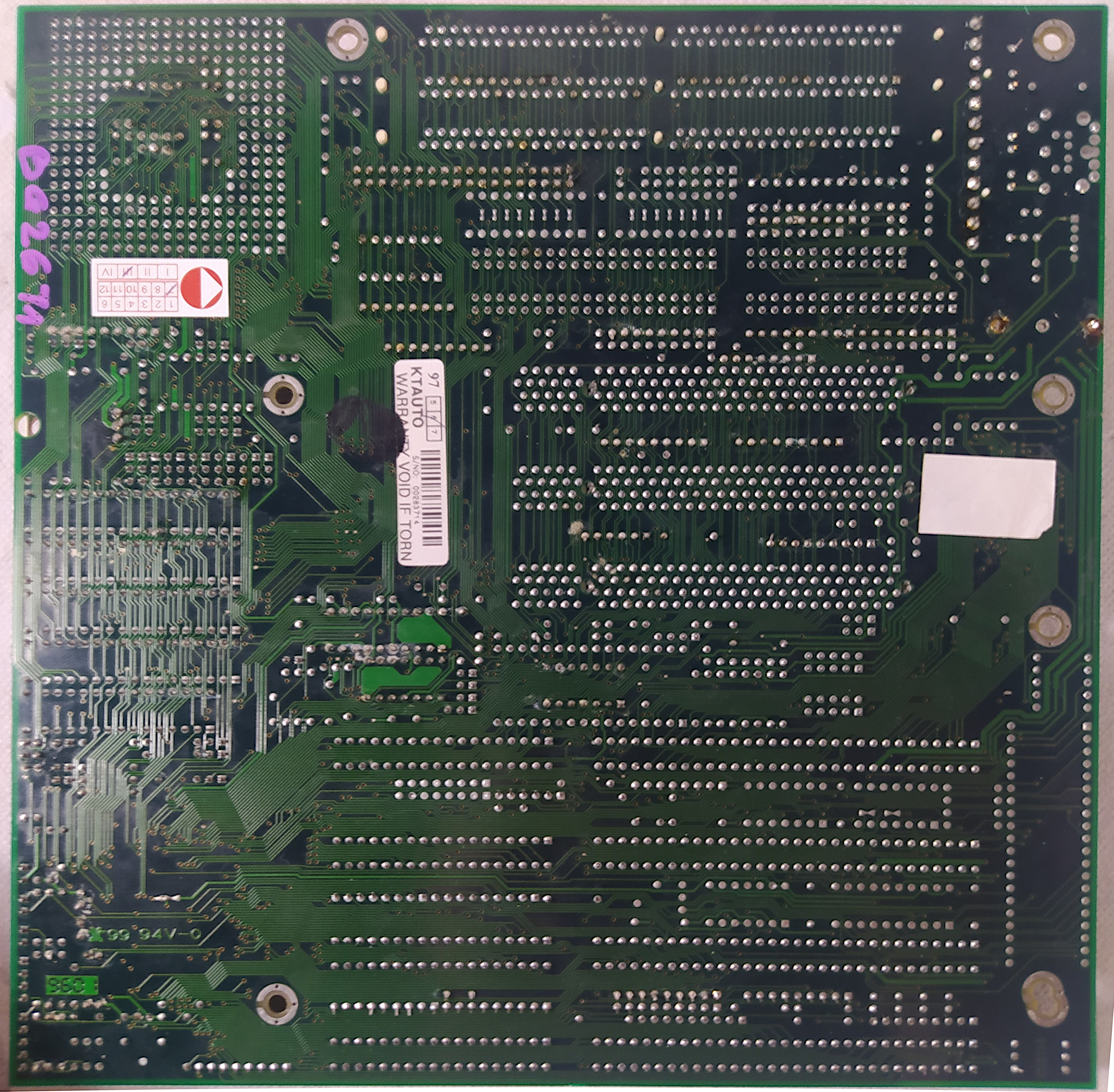

Image 5 of 5
