[Unknown] ACE-2100
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speeds
6MHz8MHz10MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
1MB(onboard sockets)16MB(using memory card)
ramRAM type
DIP-16 (1bit)
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
cardExpansion slots
4x
16-bit ISA
3x
8-bit ISA
Last updated 2025-08-27T01:33:40Z
Board info score is 6.1/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
v3.01
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

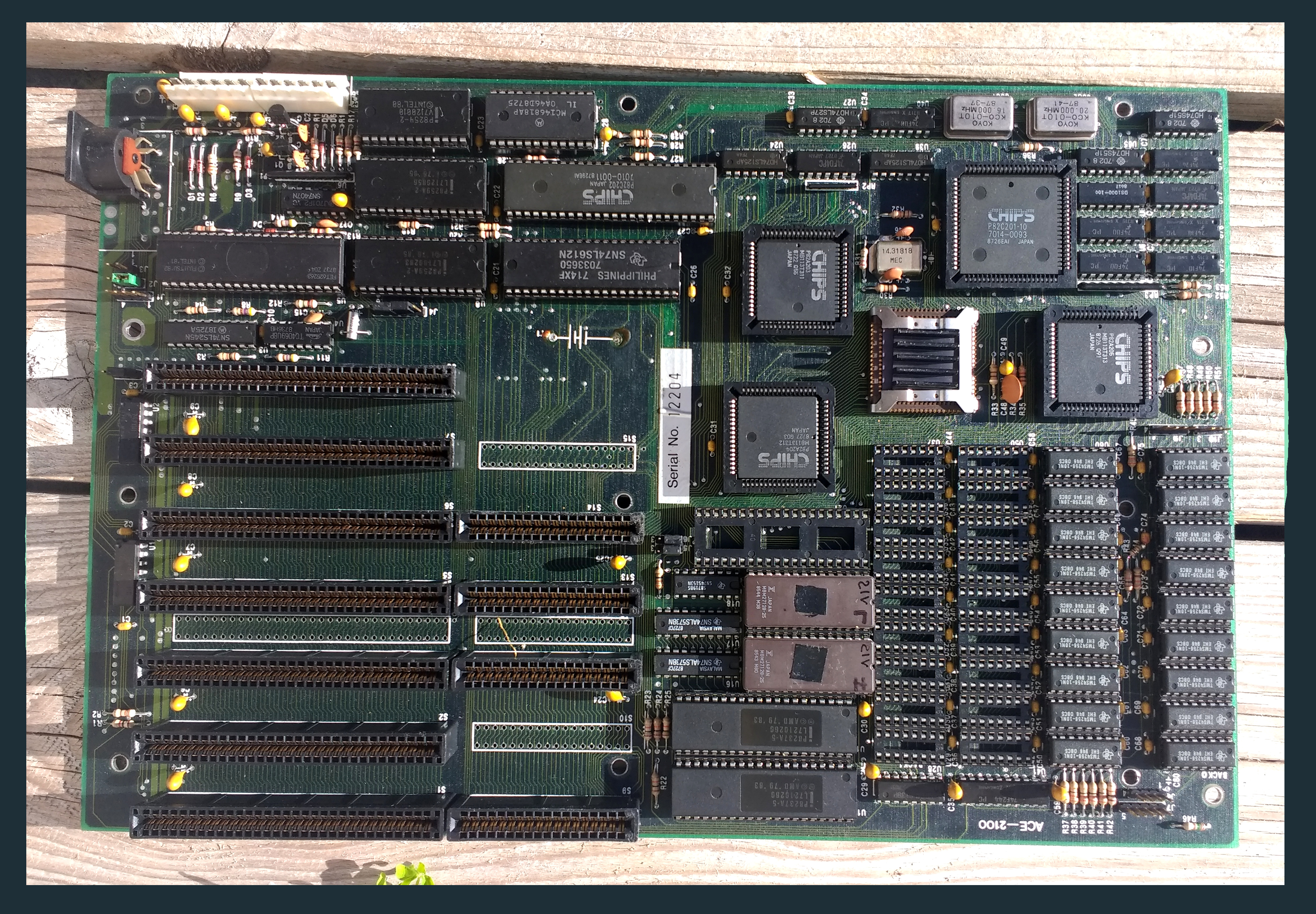

image1 Image 1 of 5

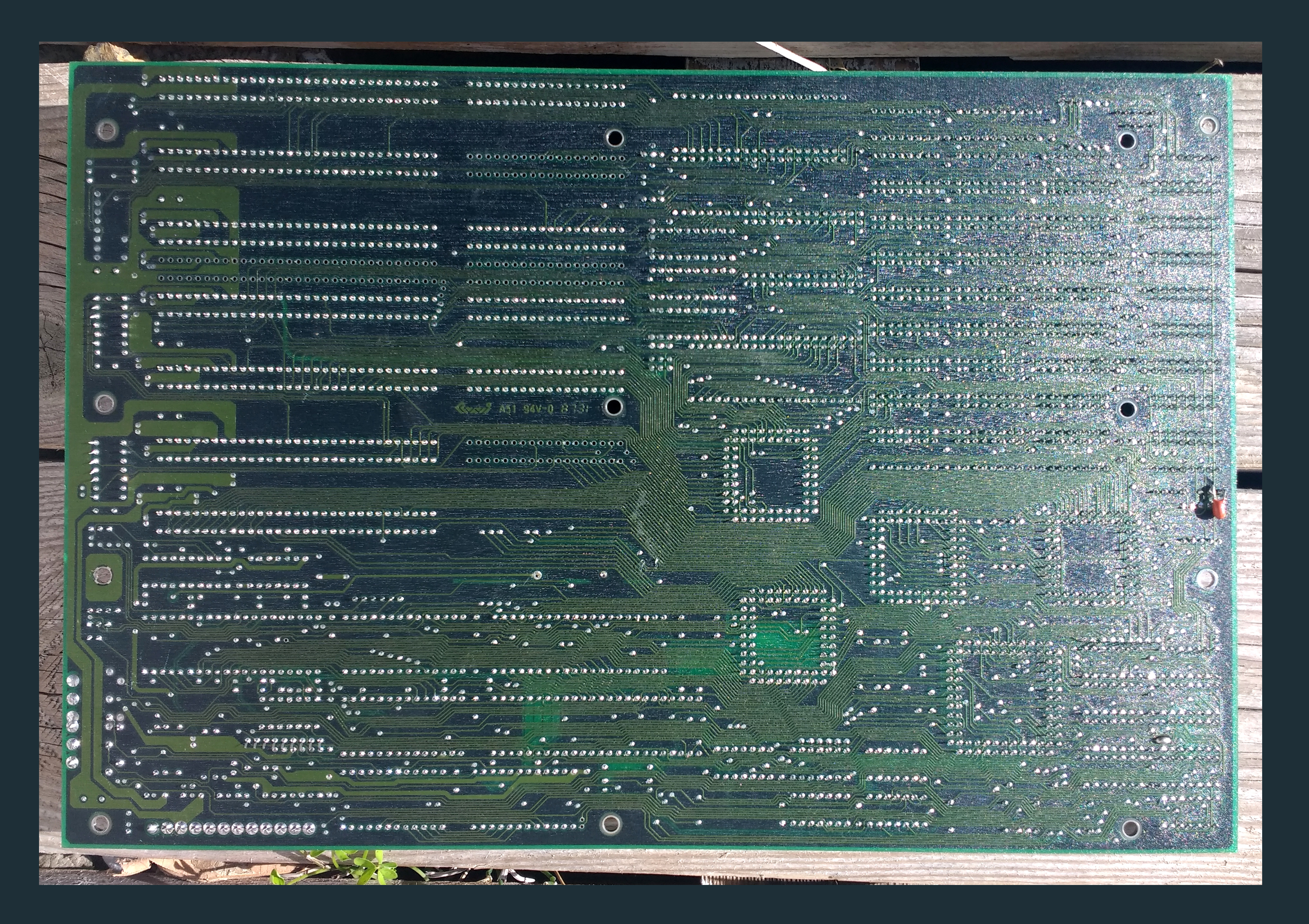

image2 Image 2 of 5 (dataino.it)

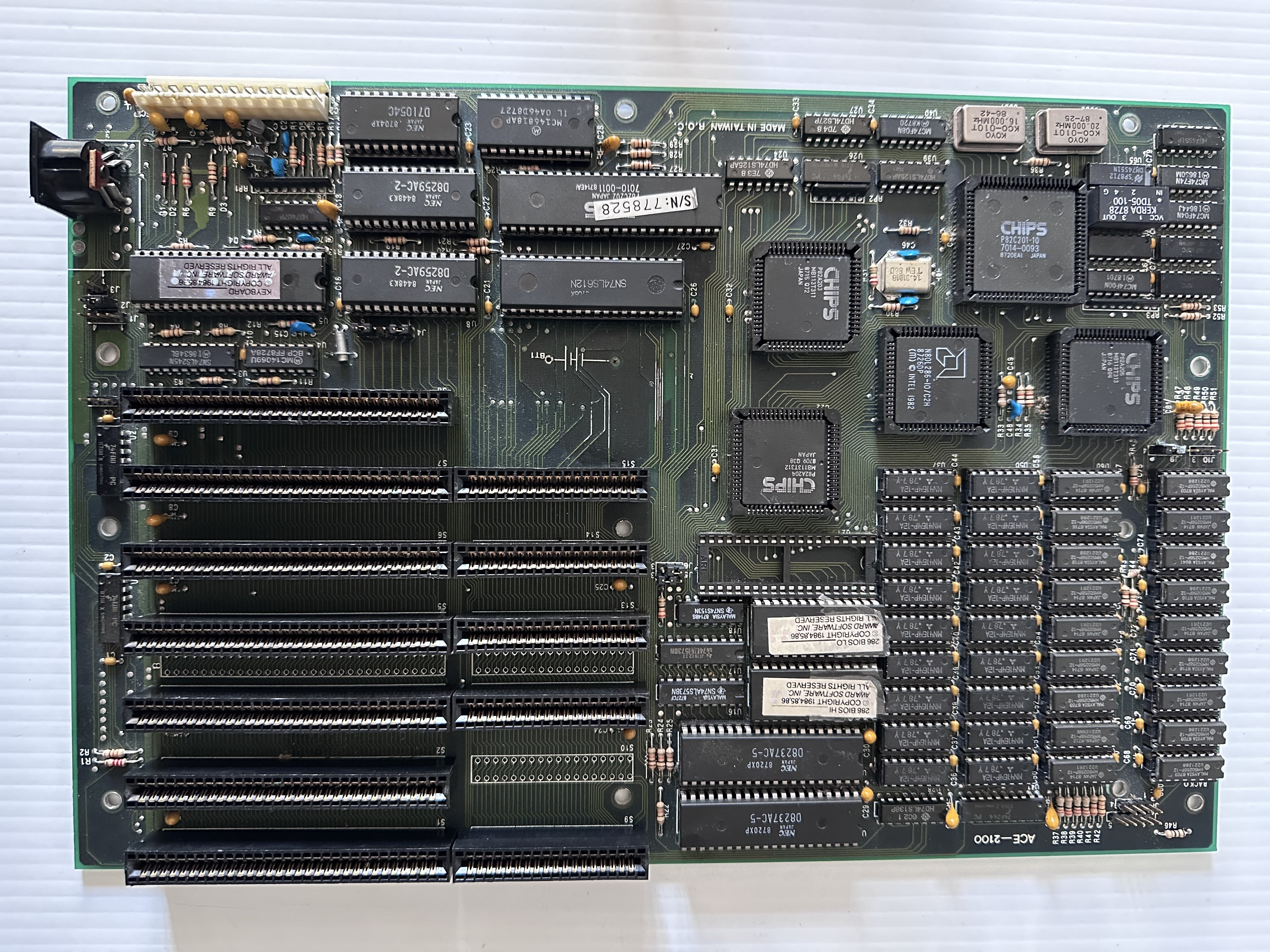

image3 Image 3 of 5 (ThisOldTech)

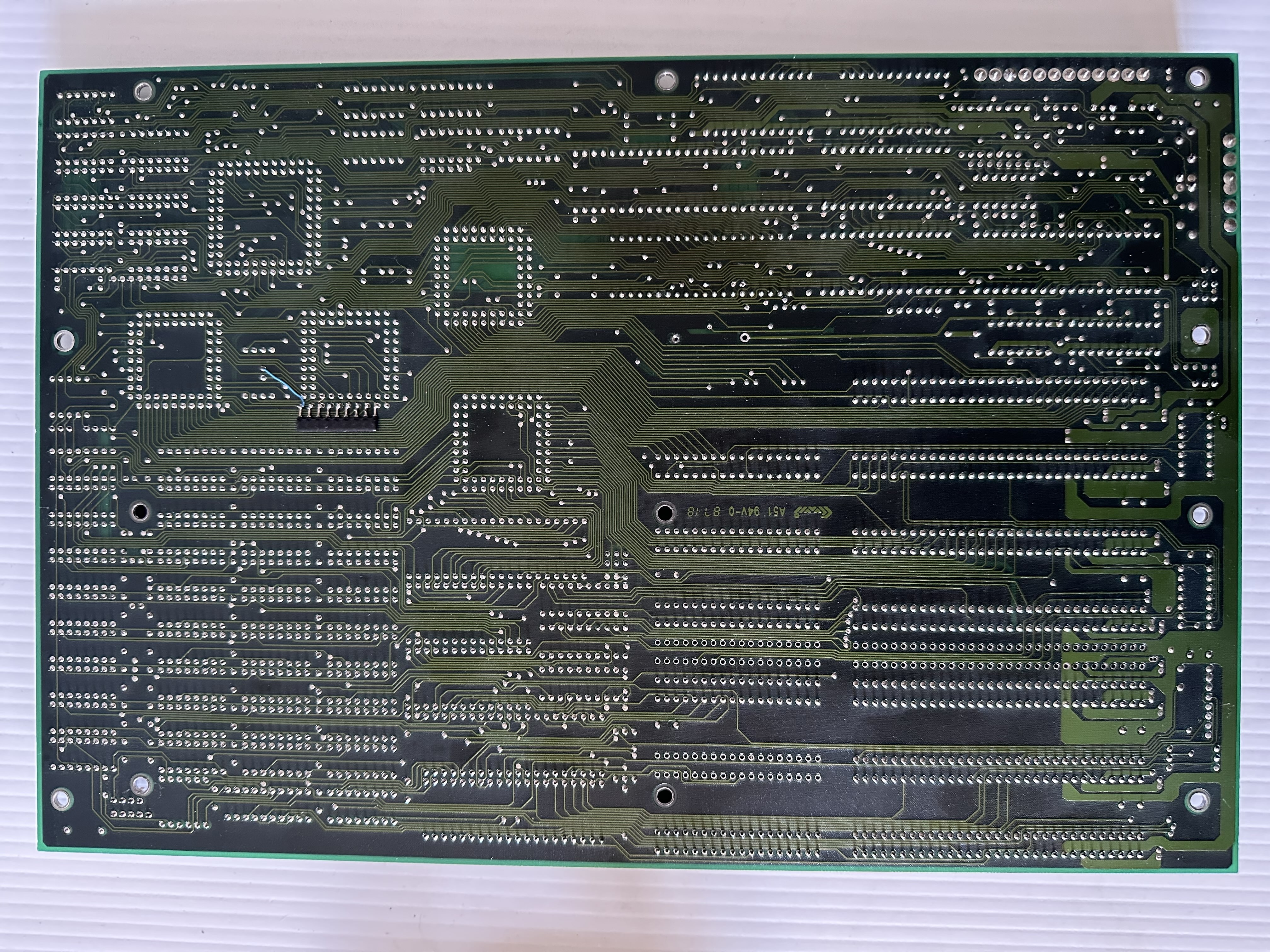

image4 Image 4 of 5 (dataino.it)
image5 Image 5 of 5 (ThisOldTech)
