[Unknown] A286
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speed
12.5MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
355mm x 304mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • Unknown 59-XP9286C-00
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
1x
16-bit ISA
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-09-06T19:25:19Z
Board info score is 7.9/10
chip Chips
-> Chipset part
CHIPS and Technologies 82C235
-> Human Interface
(multiple brand) 8042 (Keyboard Controller)
-> Super I/O
CHIPS and Technologies F82C712
-> Video
Acumos 320-01 (AVGA1)
cpufam CPU family support
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
PhoenixBIOS for C&T 82C235 SCAT
Note
Core version
A286 1.01
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.3.0
OS support
MS-DOS
Arch
Size
13.3KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1991-01
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

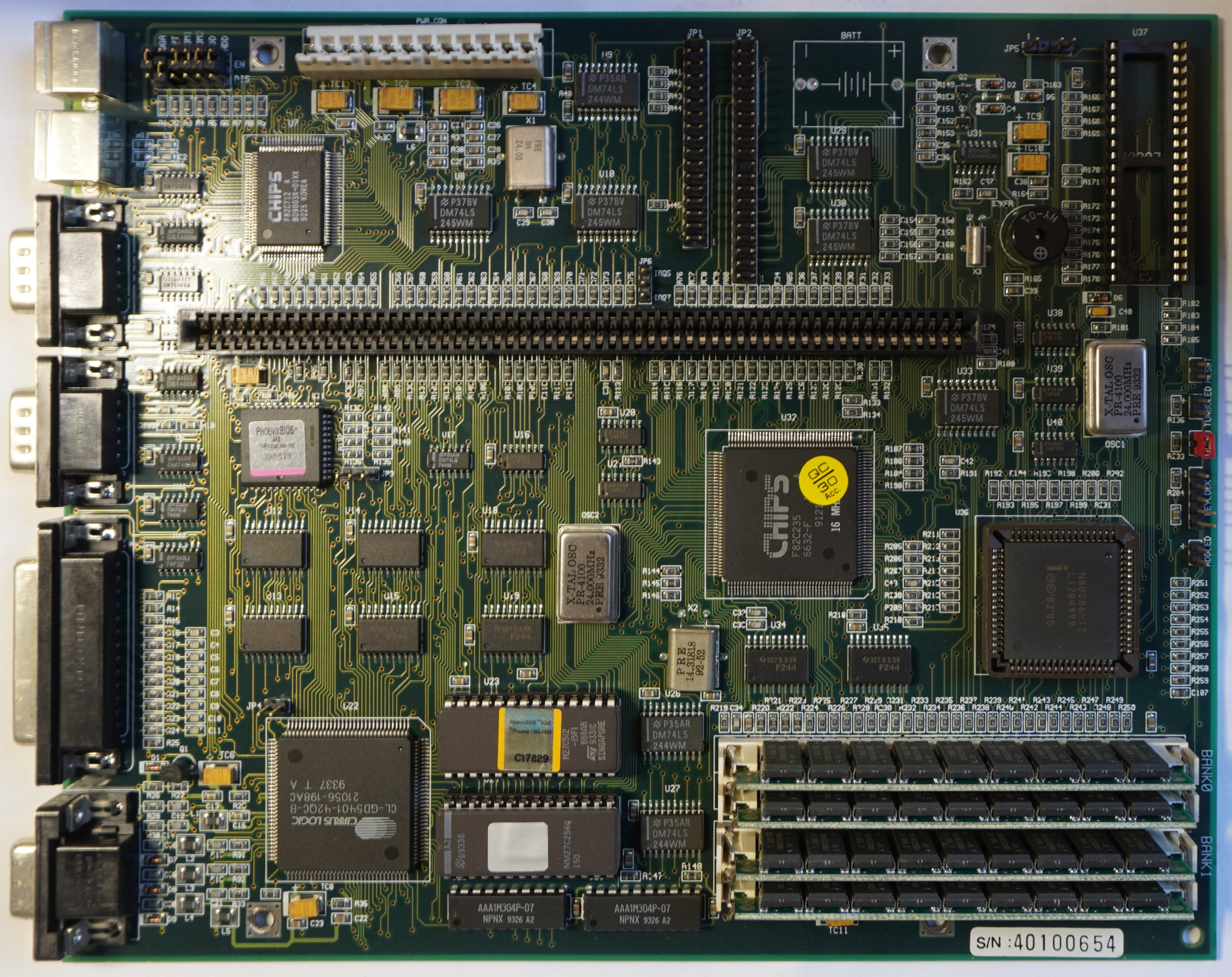

image1 Image 1 of 2 (Elke Wehmer)

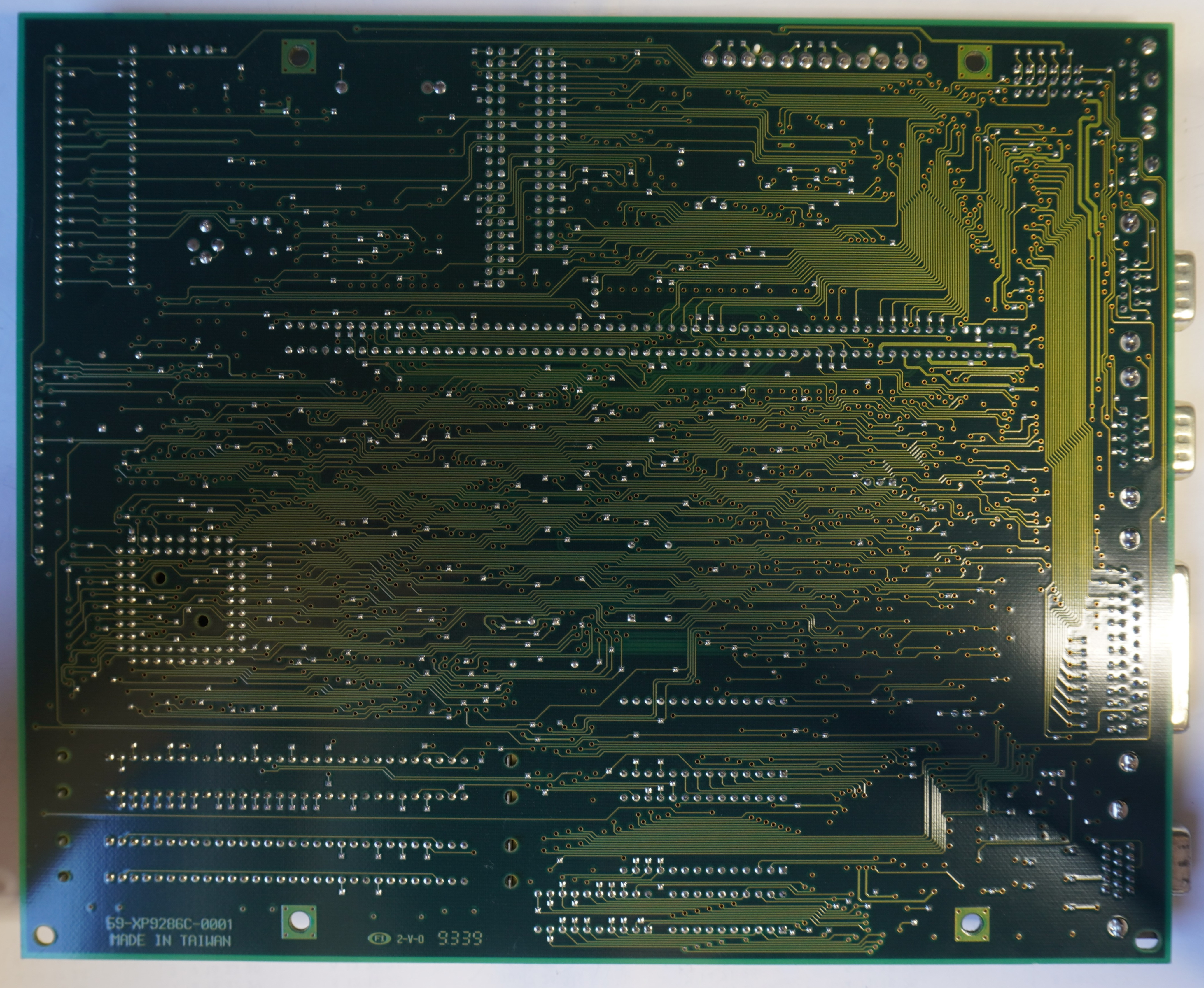

image2 Image 2 of 2 (Elke Wehmer)
