Tyan S8010-LE
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
32GB(4x 8GB UDIMM)96GB(6x 16GB RDIMM)
RAM types DDR3 UDIMMDDR3 RDIMM ECCDDR3 LRDIMM ECCDDR3 UDIMM ECC
PSU connector
I/O ports2x
Mini-SAS (SFF-8087) Female
3x
RJ-45 LAN
6x
SATA II
1x
SSI Control Panel header
2x
Serial
7x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
1x
PCIe x16 @ x8
1x
PCIe x8
Notes
Variants
- S8010WGP2N-LE
- S8010WGP2N
Possibly other variants:
- Without SAS but with PCI and no PCI-e x4
- With PCI-e x4 but without SAS
- Without PCI-e x4 without SAS without PCI-e x4
- With SAS but without PCI or PCI-e x4
Last updated 2025-05-28T13:34:28Z
Board info score is 8.2/10
Chips
-> Chipset part
-> Miscellaneous
-> Network
-> Remote Management Processor
-> SAS ctrl.
-> Sensing / Monitoring
CPU family support
4 BIOS files available
AMI - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
66-0100-000001-00101111-091912-LISBON-8010_003
Note
BIOS Date: 09/19/12 10:29:11
Core version
080016
BIOS version
Logs
POST string
66-0100-000001-00101111-031512-LISBON-8010_003
Note
BIOS Date: 03/15/12 18:08:32
Core version
080016
BIOS version
Logs
POST string
66-0100-000001-00101111-121211-LISBON-8010_003
Note
BIOS Date: 12/12/11 17:15:48
Core version
080016
BIOS version
Logs
POST string
66-0100-000001-00101111-060111-LISBON-8010_003
Note
BIOS Date: 06/01/11 15:24:02
Core version
080016
BIOS version
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

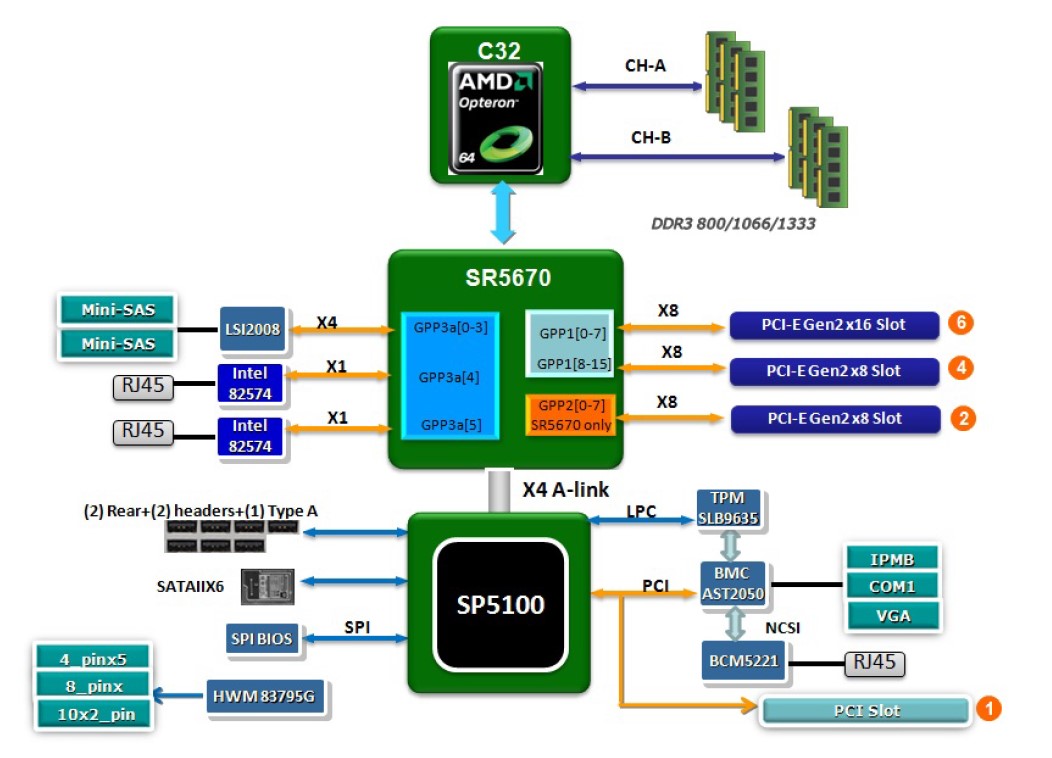

Image 1 of 2 (Tyan)
Image 2 of 2 (Tyan)
