Tyan S8010
Chipset
Socket
FSB speed Empty
Form factorATX (max 305 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
32GB(4x 8GB UDIMM)96GB(6x 16GB RDIMM)
RAM types DDR3 UDIMMDDR3 RDIMM ECCDDR3 LRDIMM ECCDDR3 UDIMM ECC
PSU connector
I/O ports2x
Mini-SAS (SFF-8087) Female
3x
RJ-45 LAN
6x
SATA II
1x
SSI Control Panel header
2x
Serial
7x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
1x
PCIe x16 @ x8
2x
PCIe x8
Notes
Variants
- S8010WGM2NR (With SAS)
- S8010GM2NR (Without SAS)
Some variants of this board come with SR5650 Chipset instead. (Have less PCI-e slots populated)
Last updated 2025-09-19T13:31:05Z
Board info score is 8.2/10
Chips
-> Chipset part
-> Miscellaneous
-> Network
-> Remote Management Processor
-> SAS ctrl.
-> Sensing / Monitoring
CPU family support
5 BIOS files available
AMI - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
66-0100-000001-00101111-020711-LISBON-8010_002
Note
BIOS Date: 02/07/11 17:01:23 (Very Old)
Core version
080016
BIOS version
Logs
POST string
66-0100-000001-00101111-022513-LISBON-8010_001
Note
BIOS Date: 02/25/13 11:42:09
Core version
080016
BIOS version
Logs
POST string
66-0100-000001-00101111-090712-LISBON-8010_001
Note
BIOS Date: 09/07/12 13:58:34
Core version
080016
BIOS version
Logs
POST string
66-0100-000001-00101111-111511-LISBON-8010_001
Note
BIOS Date: 11/15/11 15:31:18
Core version
080016
BIOS version
Logs
POST string
66-0100-000001-00101111-033011-LISBON-8010_001
Note
BIOS Date: 03/30/11 17:48:48
Core version
080016
BIOS version
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs

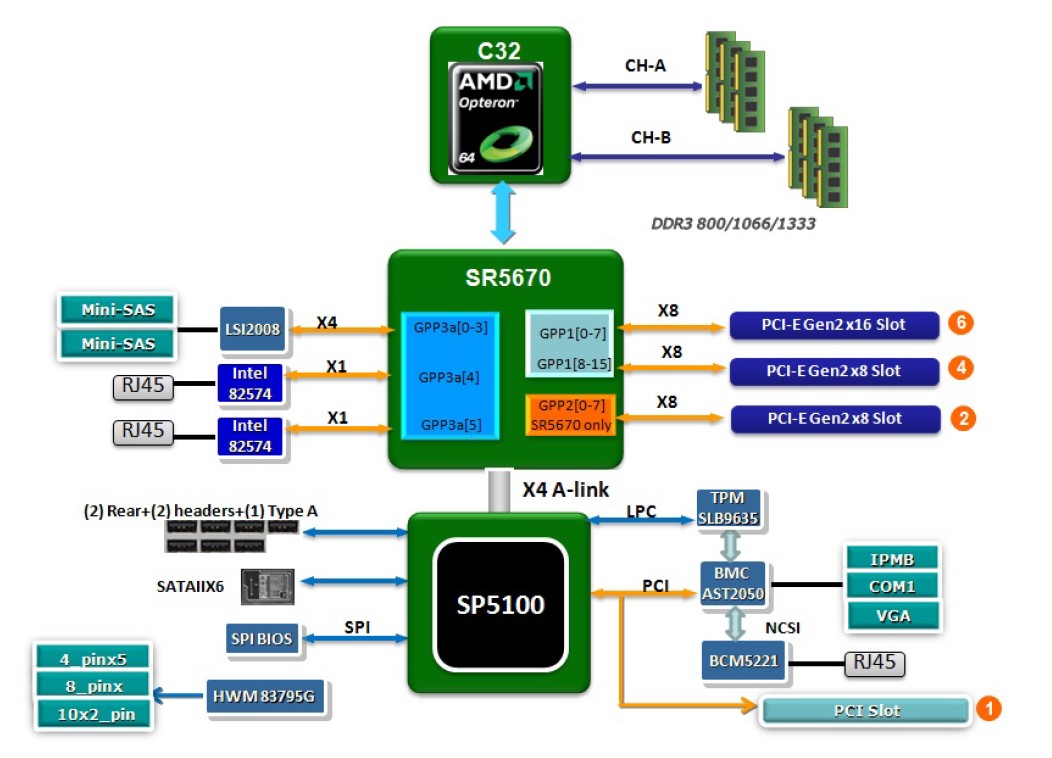

Image 1 of 2 (Tyan)

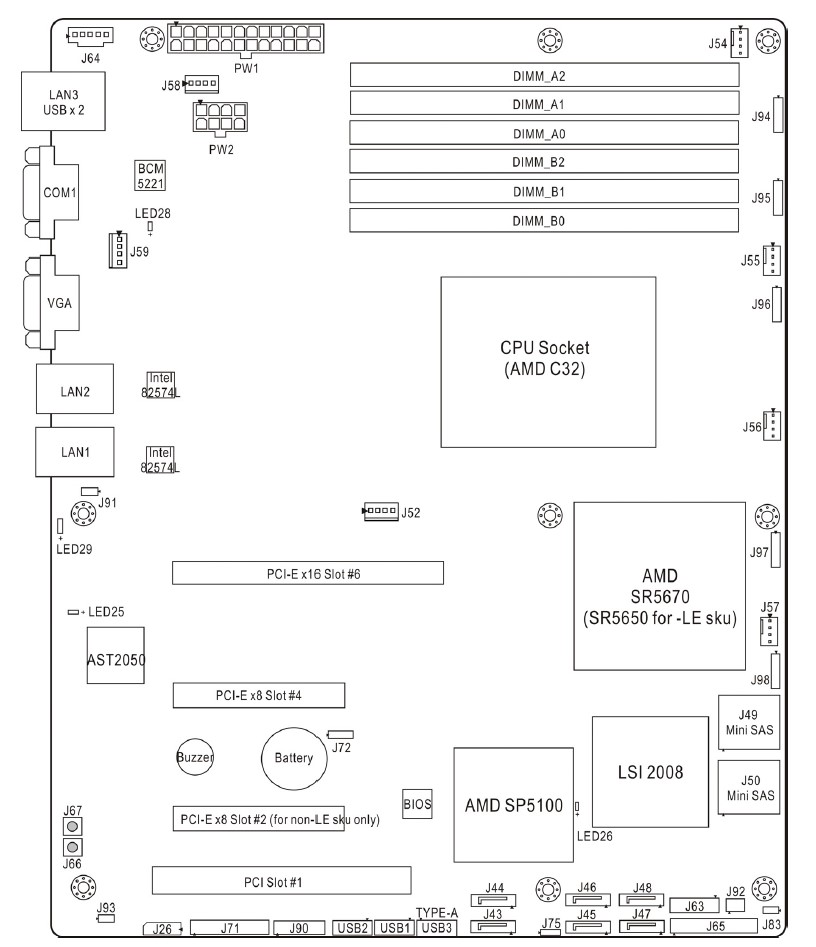

Image 2 of 2 (Tyan)
