Tyan S2507T (Dual)
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
100MHz133MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
1x
Gameport
4x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
4x
USB 1.x
cardExpansion slots
5x
32-bit PCI
1x
Universal AGP
wrench Known issues
  • BIOS ROM Chip may be faulty

The motherboard's BIOS flash chip may be faulty, causing issues with BIOS updates or functionality. Owners of this board have reported instances of BIOS ROM failures, resulting in an inability to boot the system. If your board is experiencing these issues, attempting to flash the BIOS to a new ROM chip may be necessary.

notes Notes

This motherboard has problems with high performance AGP cards. Set the "AGP Drive Strength" value in the BIOS to a higher value to combat this.

Celeron processors are supported in Single-CPU configurations only.

Last updated 2023-04-05T02:18:31Z
Board info score is 9.2/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/07/2003-694T-686B-6A6LJT5GC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/18/2002-694T-686B-6A6LJT5GC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/14/2001-694T-686B-6A6LJT5GC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/29/2001-694T-686B-6A6LJT5GC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
07/10/2001-694T-686B-6A6LJT5GC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/29/2001-694T-686B-6A6LJT5GC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 7 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2002-06
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs

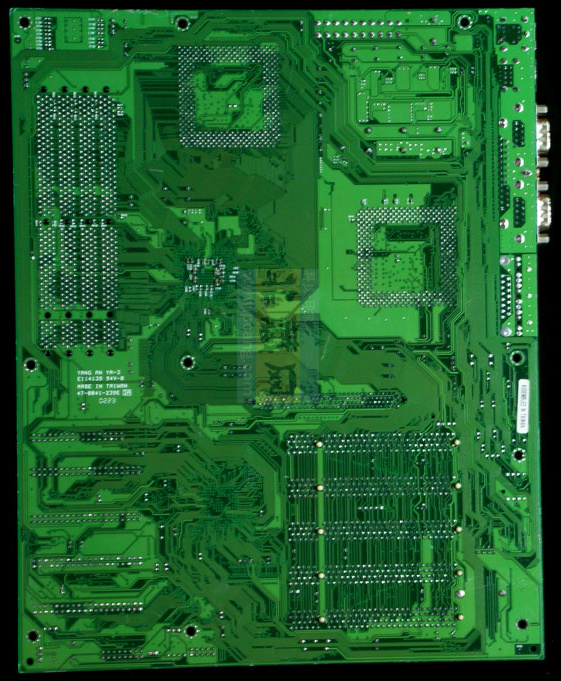

image1 Image 1 of 3 (evasive)

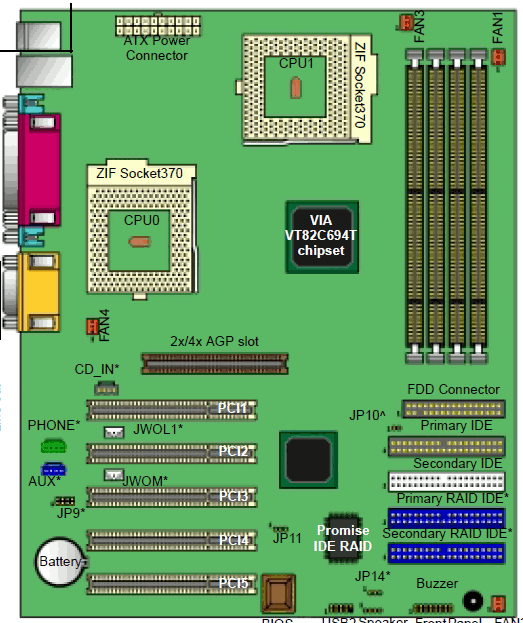

image2 Image 2 of 3 (PCang)

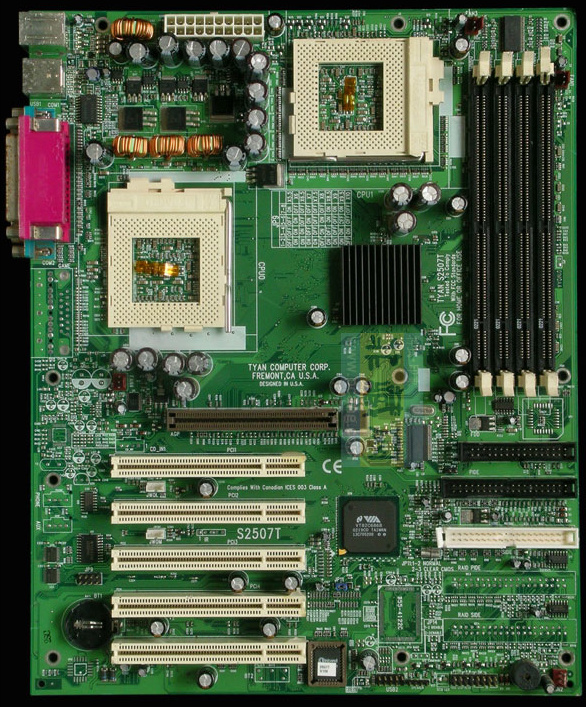

image3 Image 3 of 3 (PCang)
