Tyan S2462
Chipset
Socket
FSB speeds 200MHz266MHz
Form factorExtended ATX/EATX (max 305 × 330 mm)
Dimensions330mm x 305mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM type DDR RDIMM ECC
PSU connector
Multi CPU support2 CPUs
Also known as
- Tyan Thunder K7
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
Serial
4x
USB 1.x
Expansion slots5x
64-bit PCI
1x
Universal AGP Pro
Notes
Does not support DDR UDIMM only ECC RDIMM (see page 20 of the manual)
Last updated 2025-09-06T10:19:36Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Network
-> SCSI ctrl.
-> Super I/O
-> Video
CPU family support
13 BIOS files available
Phoenix - 13 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
12 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.4
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 4.0
Arch
x86
Size
1.4MB
Filename
Name
Version
1.11
OS support
Windows 9x
Arch
x86
Size
180.2KB
Filename
Name
Version
1.22s
OS support
Windows 9x
Arch
x86
Size
423.6KB
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Name
Version
1.10
OS support
MS-DOS
Windows 9x
Windows NT 4.0
Arch
x86
Size
2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
8.3MB
Filename
Version
OS support
Arch
Size
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs

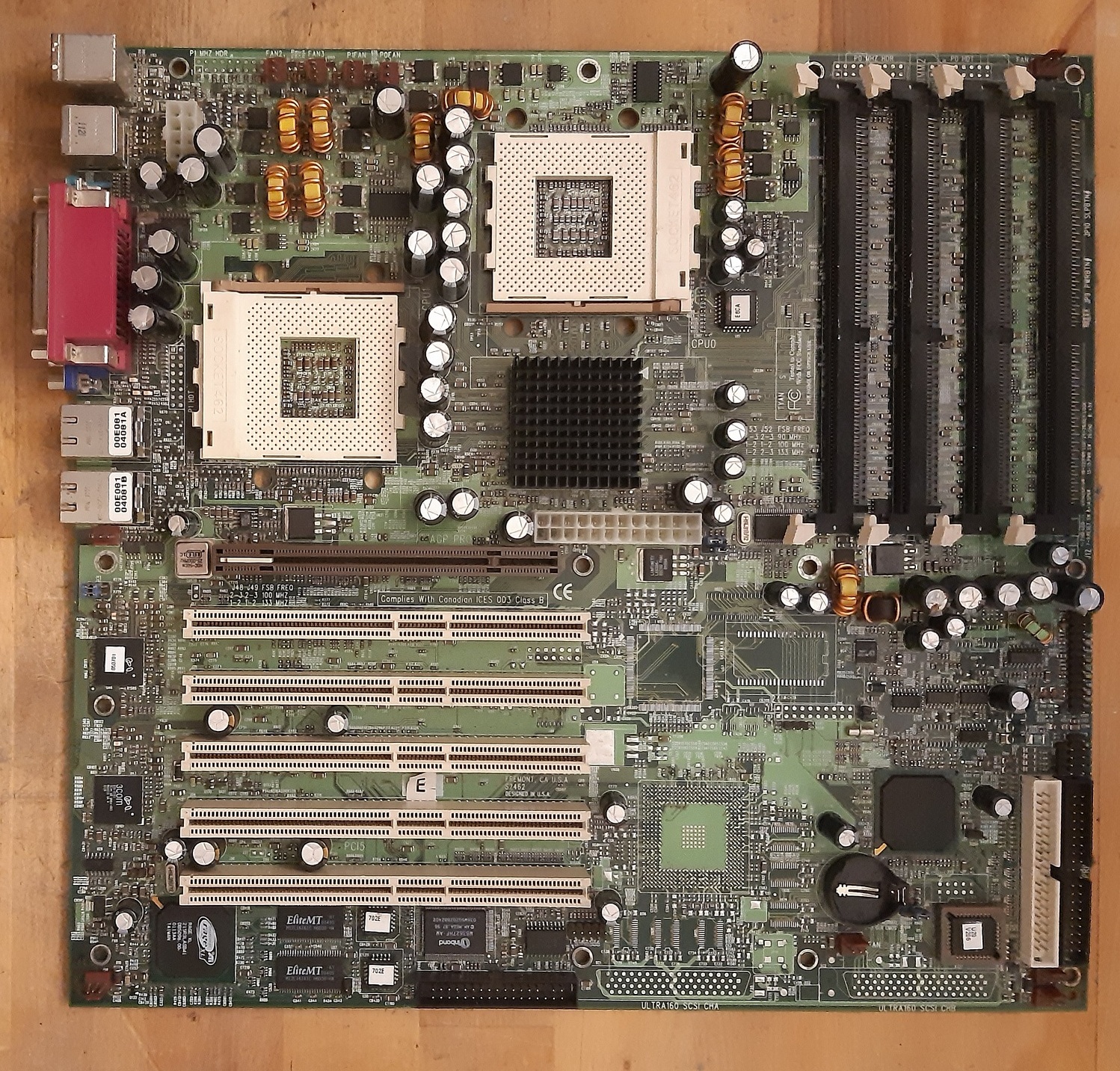

Image 1 of 2 (evasive)

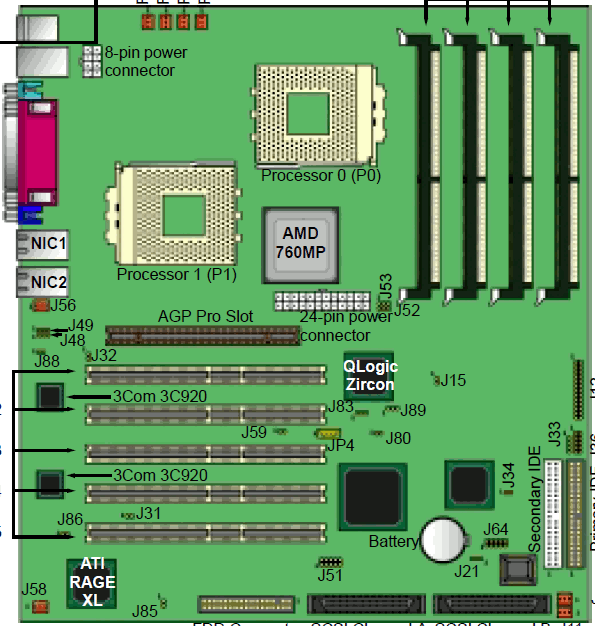

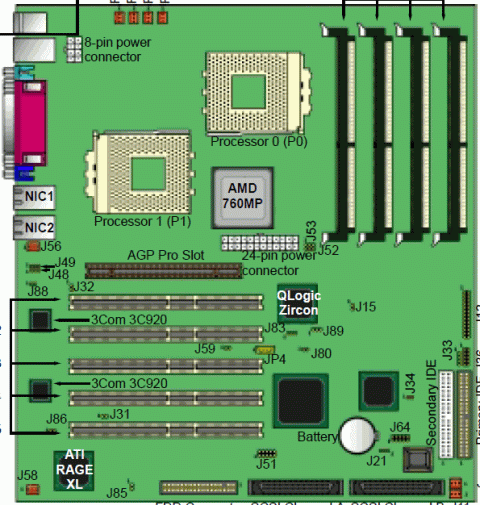

Image 2 of 2 (Carlos S. M.)
