Tulip Computers TC15
Chipset
Sockets
FSB speed 25MHz
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
16MB
RAM type 30-pin SIMM
PSU connector
Also known as
- Tulip Computers AT386/25
- Tulip Computers P/N 03-100015-02
- Tulip Computers TC-15 / AT-386
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
Parallel
2x
Serial
Expansion slots6x
16-bit ISA
2x
8-bit ISA
Notes
LCD Connector goes to case status display
Last updated 2025-08-17T14:24:29Z
Board info score is 7.9/10
Chips
-> Chipset part
-> Floppy ctrl.
-> Super I/O
0 BIOS files available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
No drivers available
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990-07
File
Logs
1 other file available
Title
File
Logs

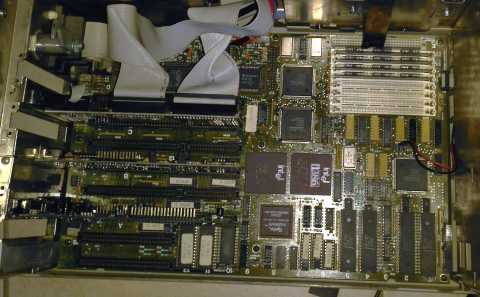

Image 1 of 3 (ronnyroy)

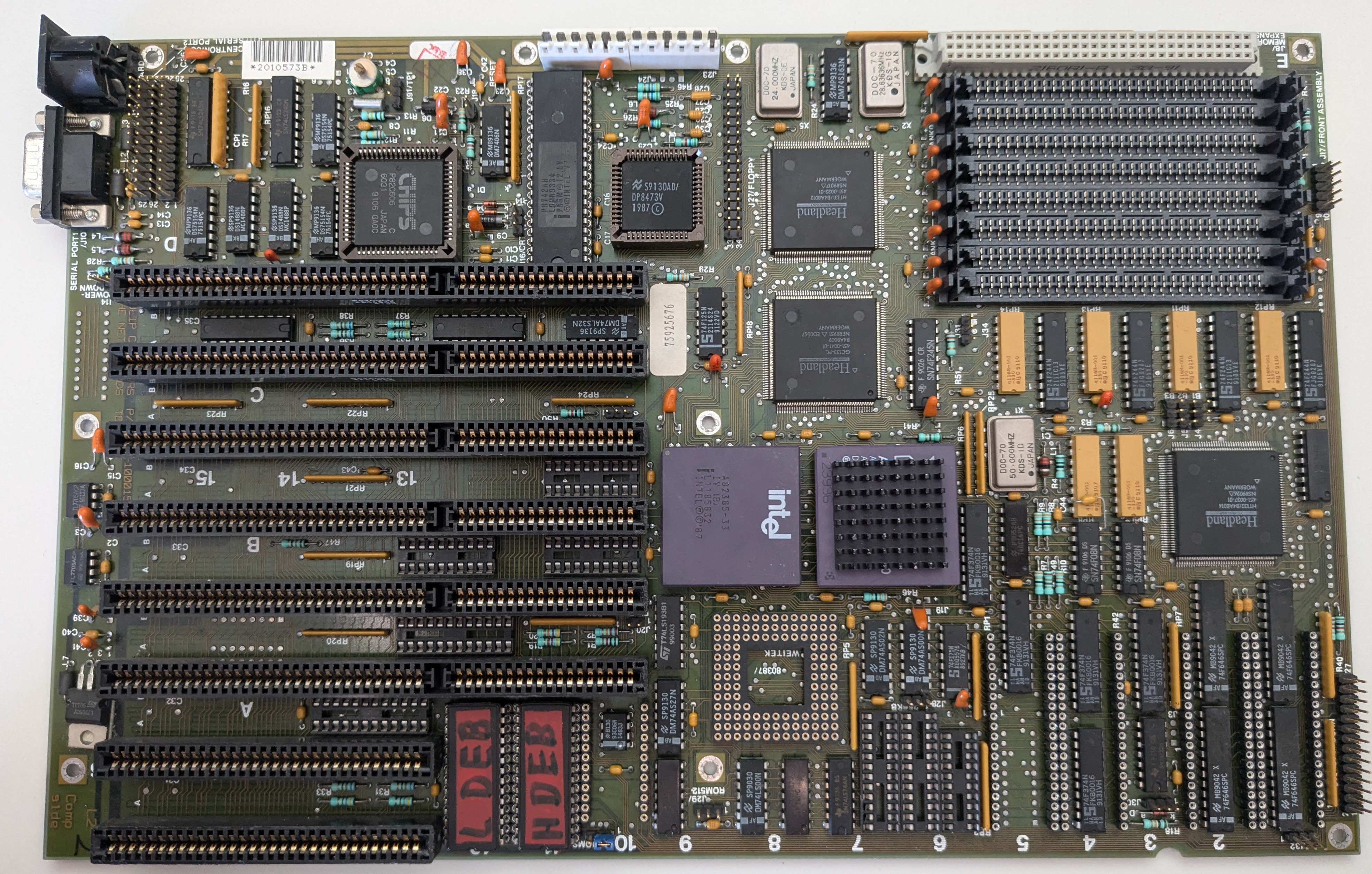

Image 2 of 3 (JSO)

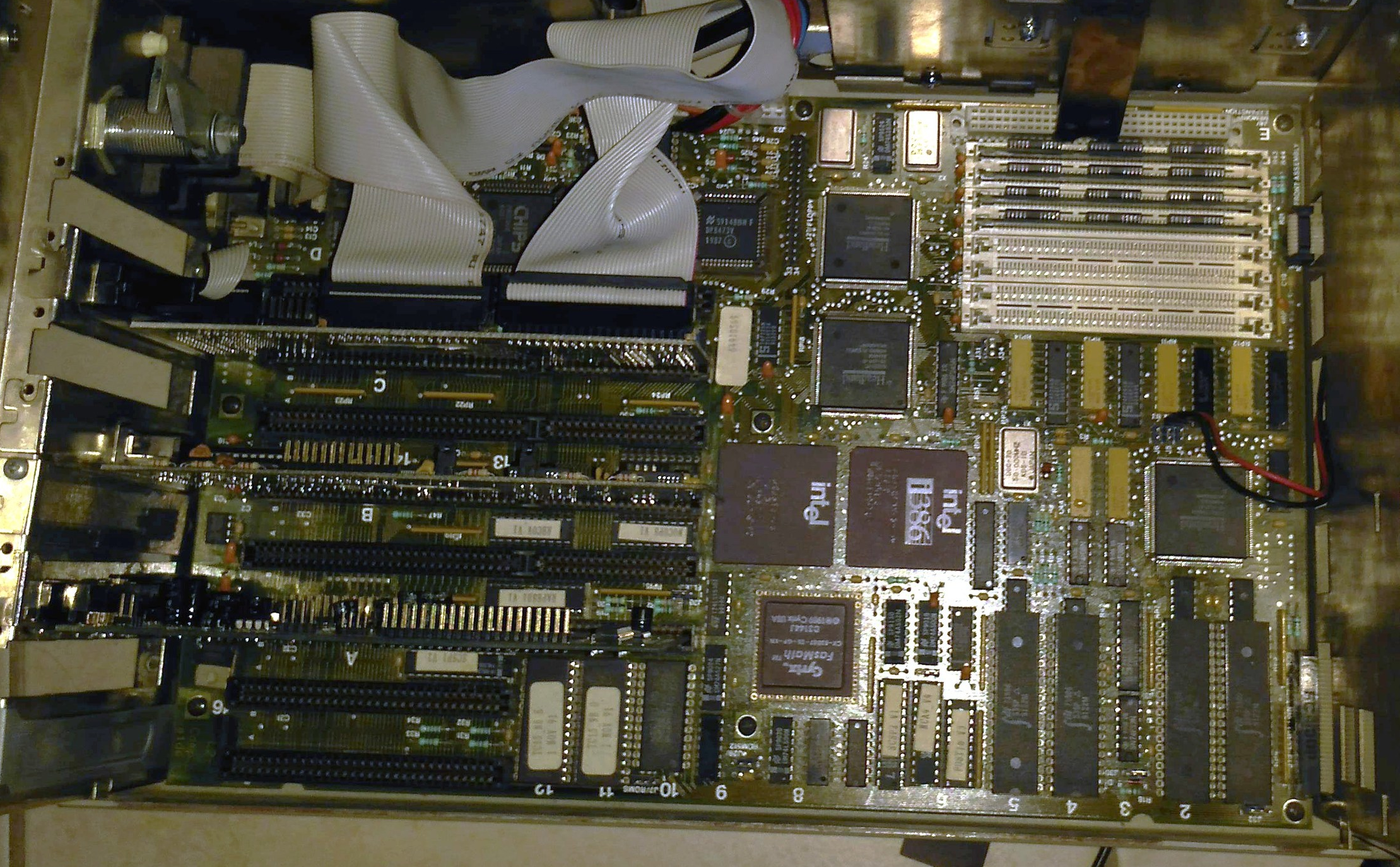

Image 3 of 3 (ronnyroy)
