TriGem Bristol
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
DimensionsEmpty
Cache
256KB512KB1MB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
4x
32-bit PCI
Known issues
- Faulty IDE Controller
The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.
- Faulty IDE Controller
The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.
Last updated 2024-12-08T18:10:58Z
Board info score is 9.1/10
Chips
-> Chipset part
-> Human Interface
-> IDE ctrl.
-> Miscellaneous
-> Super I/O
CPU family support
1 BIOS file available
AMI - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-3105-000914-00111111-101094-VIPER-Z
Note
Core version
101094
BIOS version
Logs
POST string
51-3105-000322-00111111-101094-VIPER
Note
Core version
101094
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
v2.09
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 2.x
SCO Unix - OpenServer
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
691.2KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

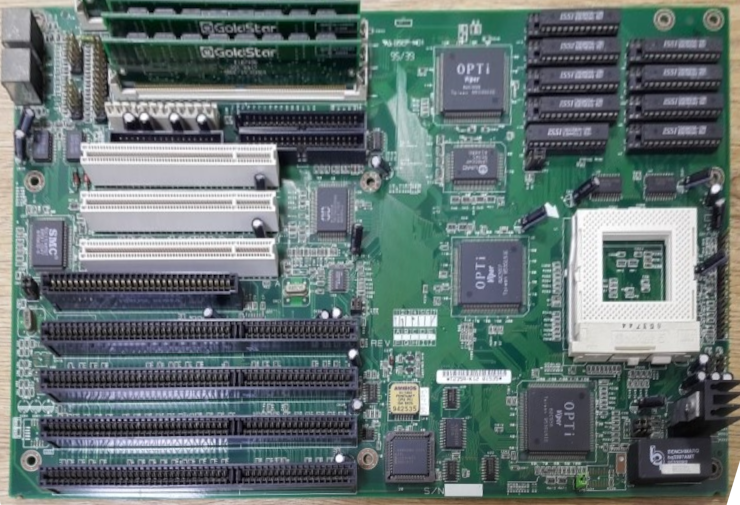

Image 1 of 2 (evasive)

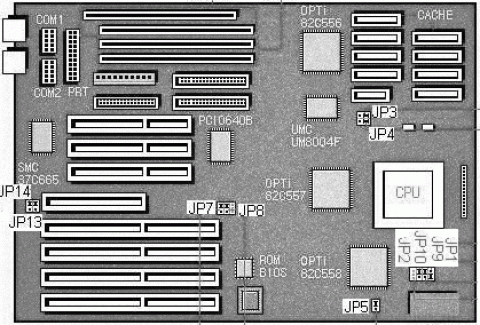

Image 2 of 2
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
