TQ TQMxE38C
Chipset
Socket
FSB speed Empty

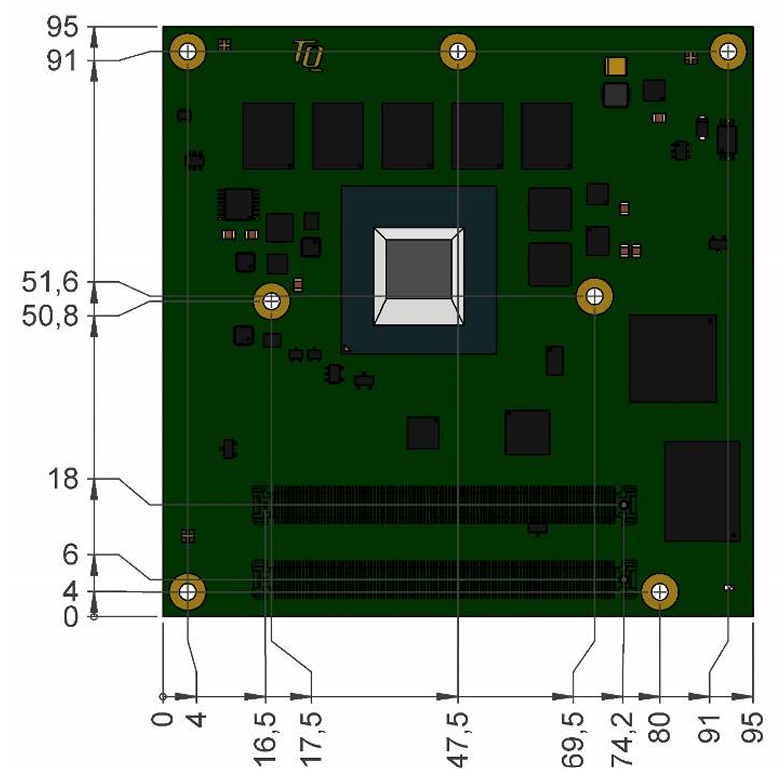

Form factorCOM Express Compact (95 x 95 mm)
Dimensions95mm x 95mm
Cache
None/Integrated in the CPU
Max RAM size
2GB4GB8GB
RAM type DDR3
PSU connector
Empty
I/O ports2x
DDI Port
1x
GPIO
1x
LVDS
1x
RJ-45 LAN
2x
SATA II
2x
Serial
7x
USB 2.0
1x
USB 3.0
1x
VGA
Expansion slots1x
COM Express Type 6
Notes
CPU/Processor: Intel Atom® E3800 Series (Baytrail-I)
- E3815: 1x 1.46 GHz, 512 KB L2-Cache, 5 W
- E3805: 2x 1.33 GHz, 1 MB L2-Cache, 3 W, without graphics
- E3825: 2x 1.33 GHz, 1 MB L2-Cache, 6 W
- E3826: 2x 1.46 GHz, 1 MB L2-Cache, 7 W
- E3827: 2x 1.75 GHz, 1 MB L2-Cache, 8 W
- E3845: 4x 1.91 GHz, 2 MB L2-Cache, 10 W
TPM: SLB9660 TPM 1.2, alternatively SLB9665 TPM 2.0
Last updated 2025-05-28T13:45:28Z
Board info score is 6.3/10
Chips
-> Miscellaneous
-> Network
CPU family support
0 BIOS files available
No drivers available
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs
Chip
Release date
File
Logs

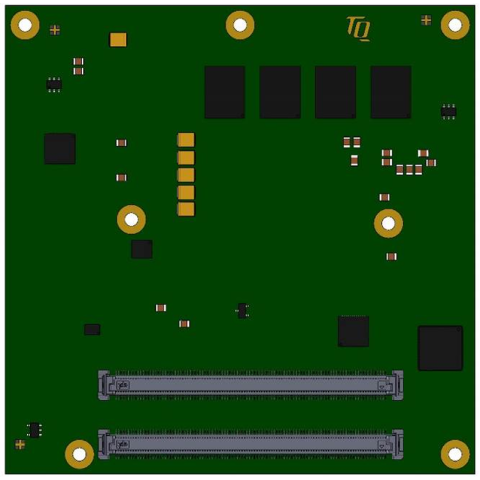

Image 1 of 3 (TQ-Systems)

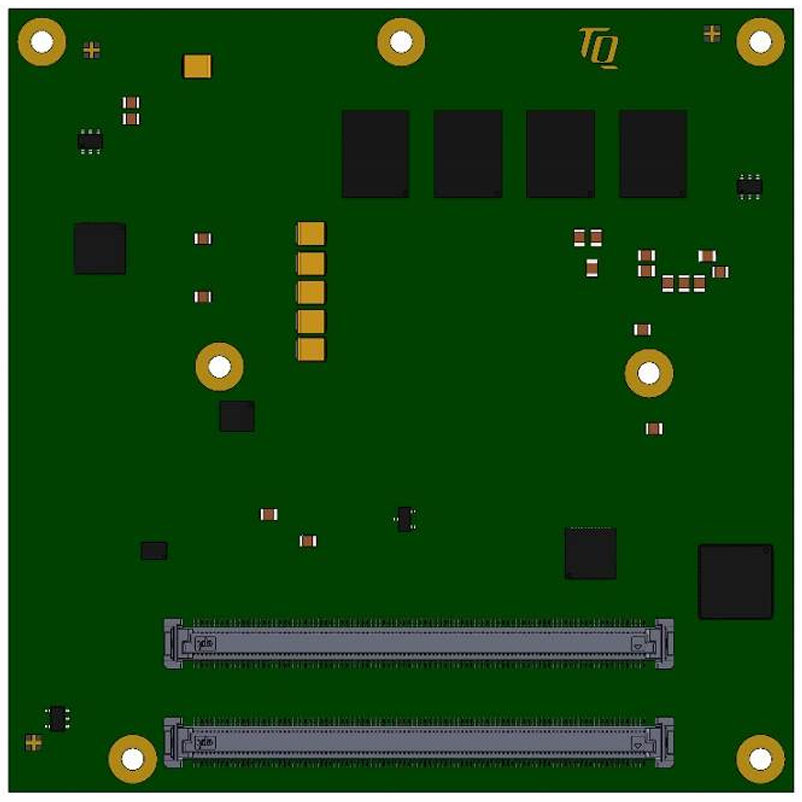

Image 2 of 3 (TQ-Systems)

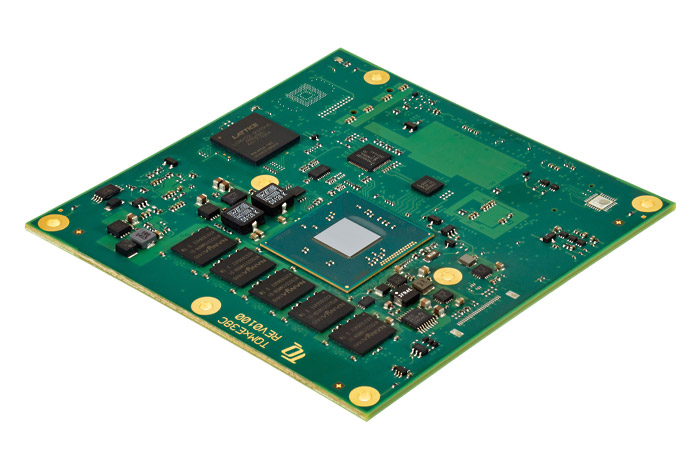

Image 3 of 3 (TQ-Systems)
