Top Star T-RS78G
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 221mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-06-01T13:35:20Z
Board info score is 9/10
bios 3 BIOS files available

vendor Award - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/05/2008-RS780-SB700-8A660009C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/06/2008-RS780-SB700-8A660009C-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/30/2008-RS780-SB700-8A660009C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

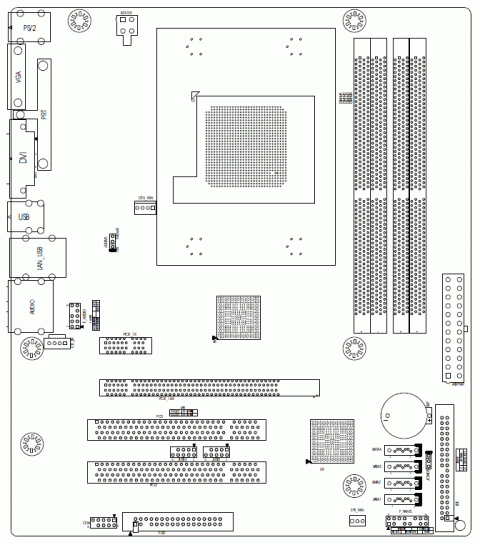

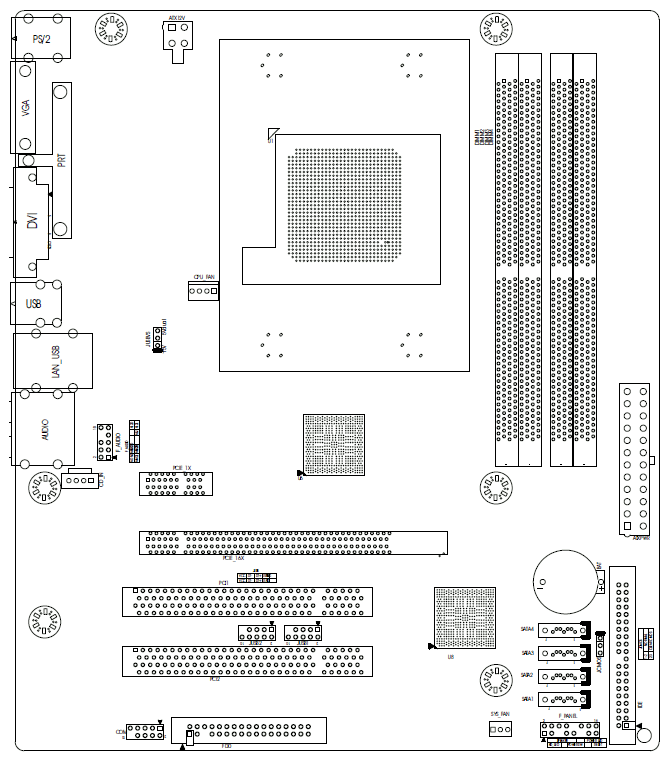

image1 Image 1 of 2 (Top Star)

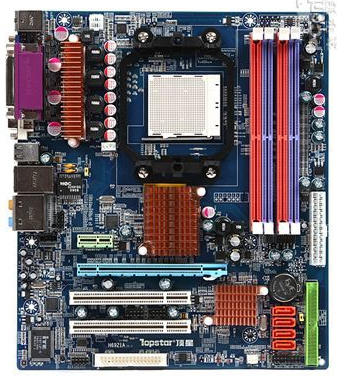

image2 Image 2 of 2 (Top Star)
