TMC/MyComp/MyNix/Megastar PCI54PV (VER. 1.2A)
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions330mm x 218mm
Max RAM size
RAM type
PSU connector
Also known as
- Aten Research AM-P54CVIP
- MODULAR CIRCUIT TECHNOLOGY MCT-M586-90
I/O ports1x
AT Keyboard
Expansion slots5x
16-bit ISA
4x
32-bit PCI
2x
32-bit VLB
Last updated 2025-09-07T23:34:27Z
Board info score is 9.2/10
Chips
-> Chipset part
-> Bridge Interface
CPU family support
2 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
50-0100-001291-00101111-121593-OPTI596P-H
Note
Core version
121593
BIOS version
Logs
POST string
50-B200-001291-00101111-121593-OP596ATP-P
Note
Core version
121593
BIOS version
Logs
No drivers available
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

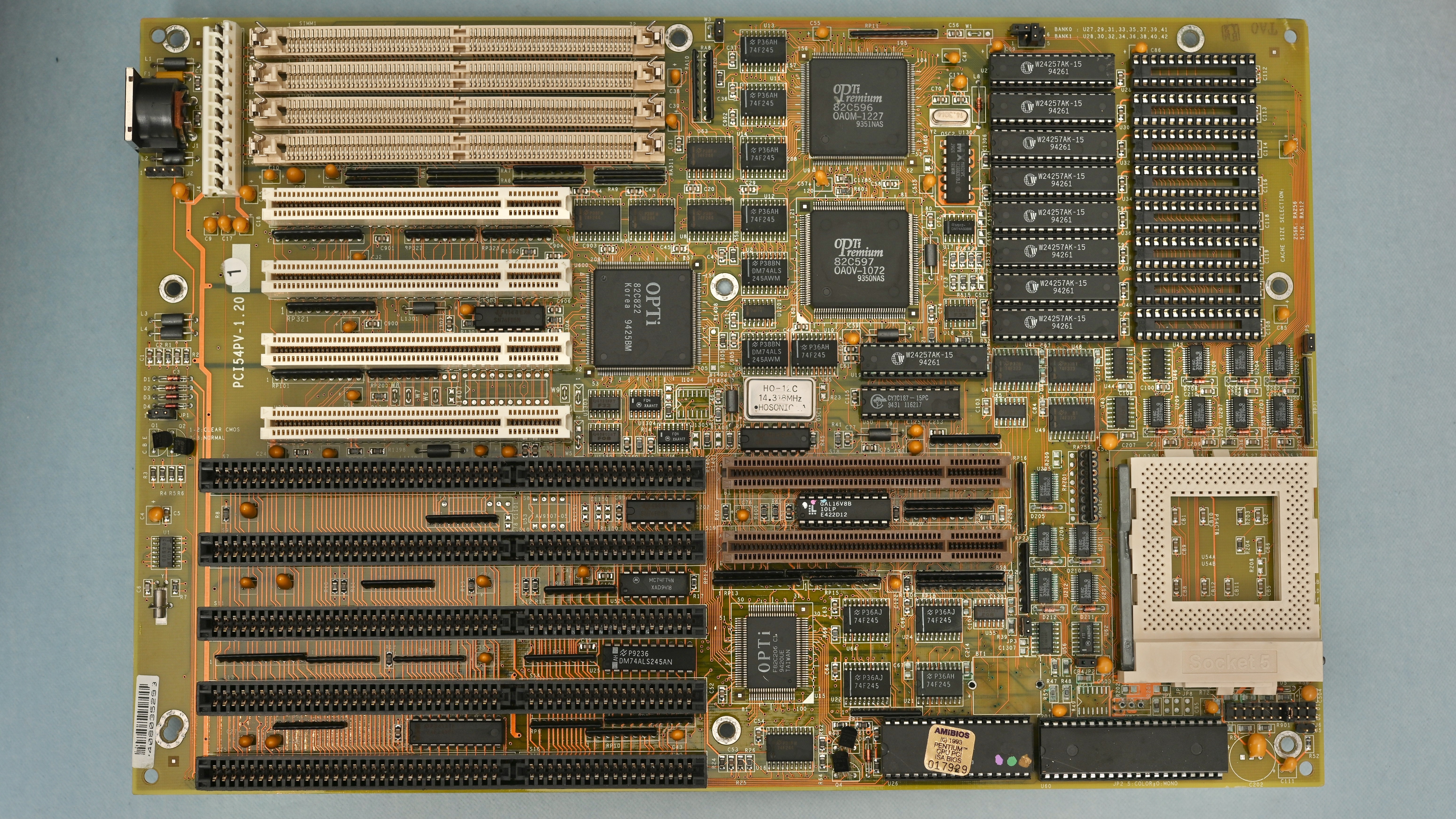

Image 1 of 2 (Microhouse)
Image 2 of 2 (mpe)
