TMC/MyComp/MyNix/Megastar ICT54PV-1.00
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorLPX (max 229 x 330 mm)
DimensionsEmpty
Max RAM size
RAM type
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots3x
16-bit ISA
2x
32-bit PCI
Known issues
- Expansion slots are on proprietary riser

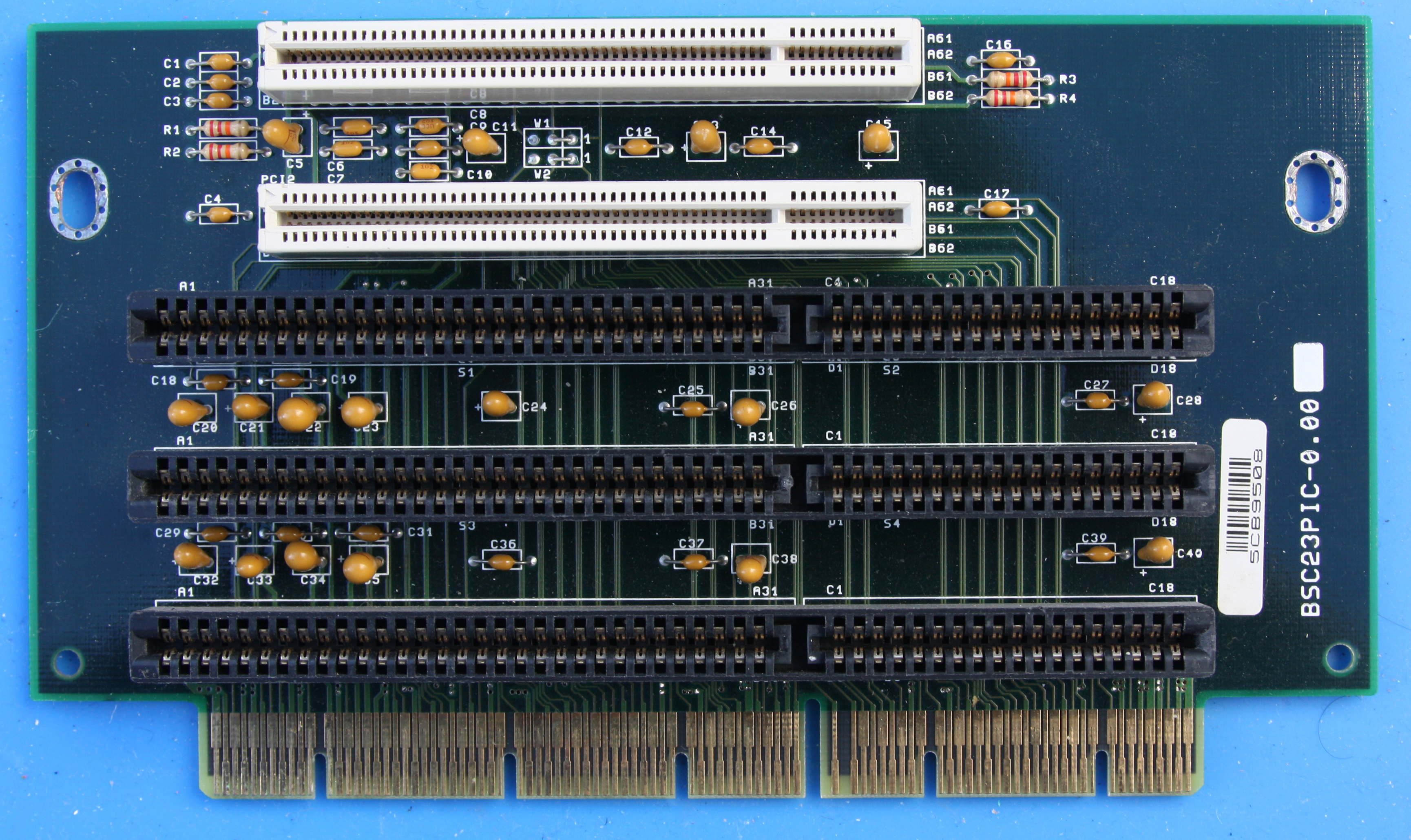

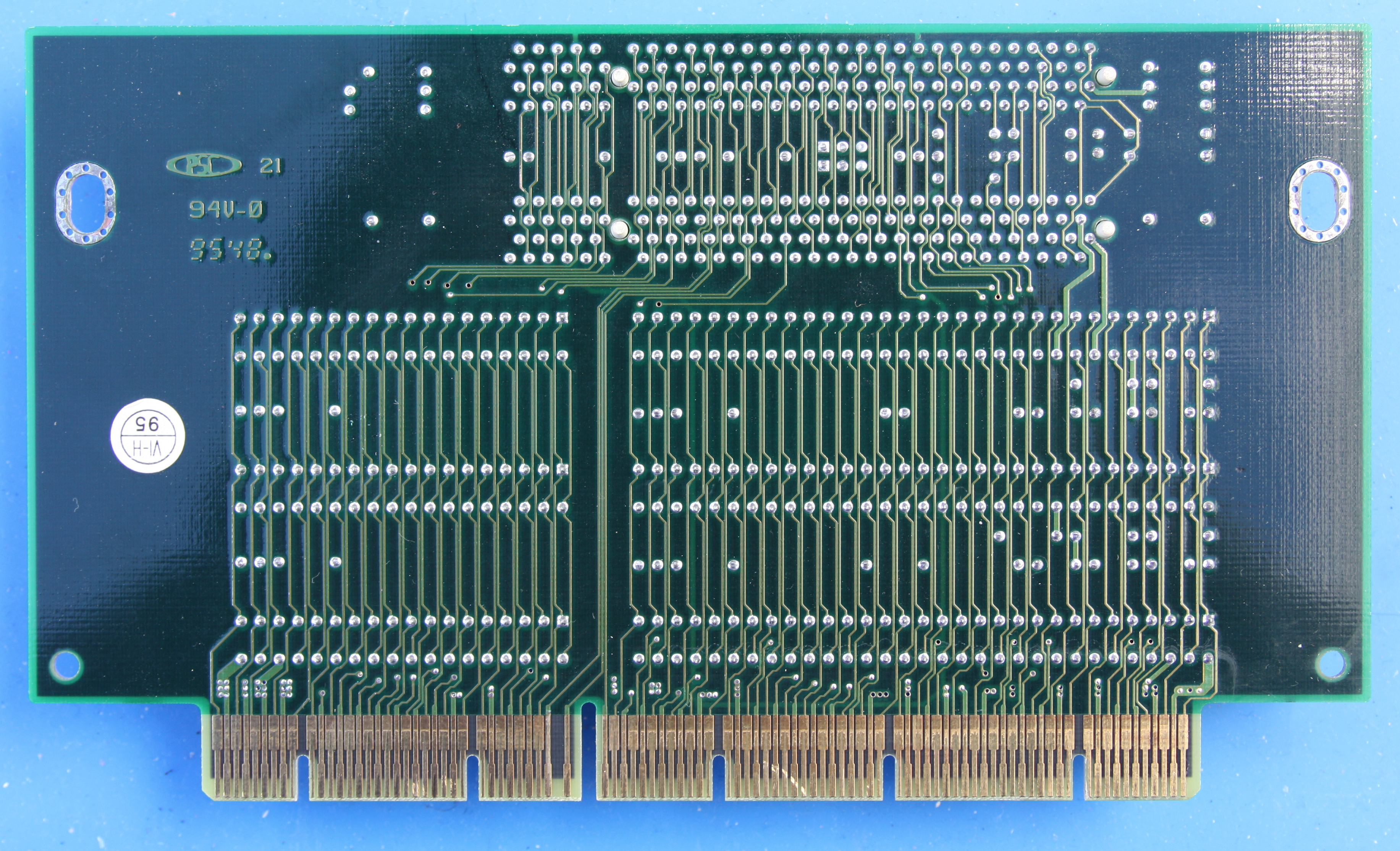

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
- Faulty IDE Controller
The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.
Last updated 2025-07-19T18:32:09Z
Board info score is 7.9/10
Chips
-> Chipset part
-> Bridge Interface
-> IDE ctrl.
-> Real-Time Clock
-> Super I/O
-> Video
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-0100-001291-00111111-101094-VIPER
Note
Core version
101094
BIOS version
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
v2.09
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 2.x
SCO Unix - OpenServer
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
691.2KB
Filename
Name
Version
1.6
OS support
OS/2 1.x
OS/2 2.x
OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-03
File
Logs
Chip
Release date
File
Logs

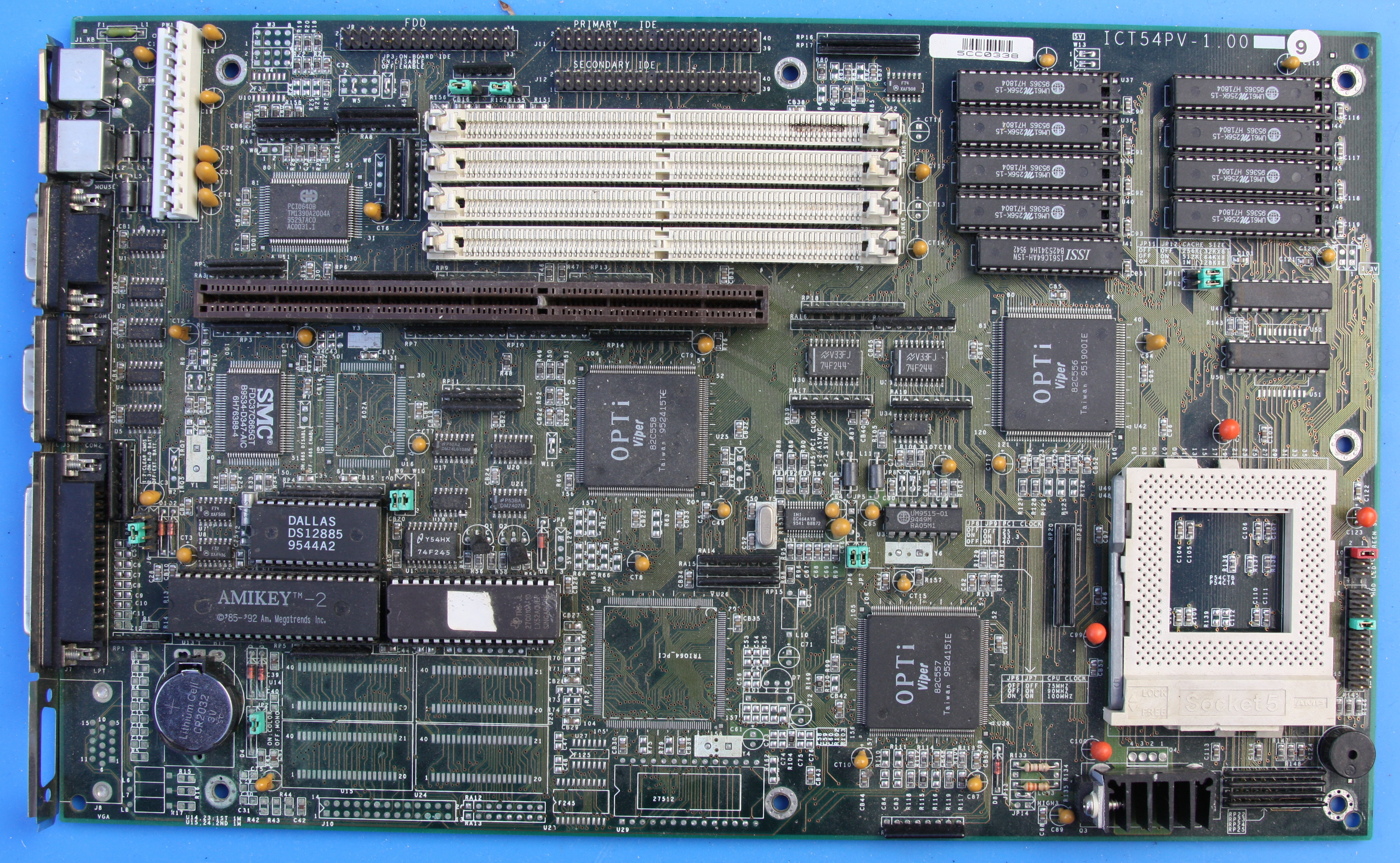

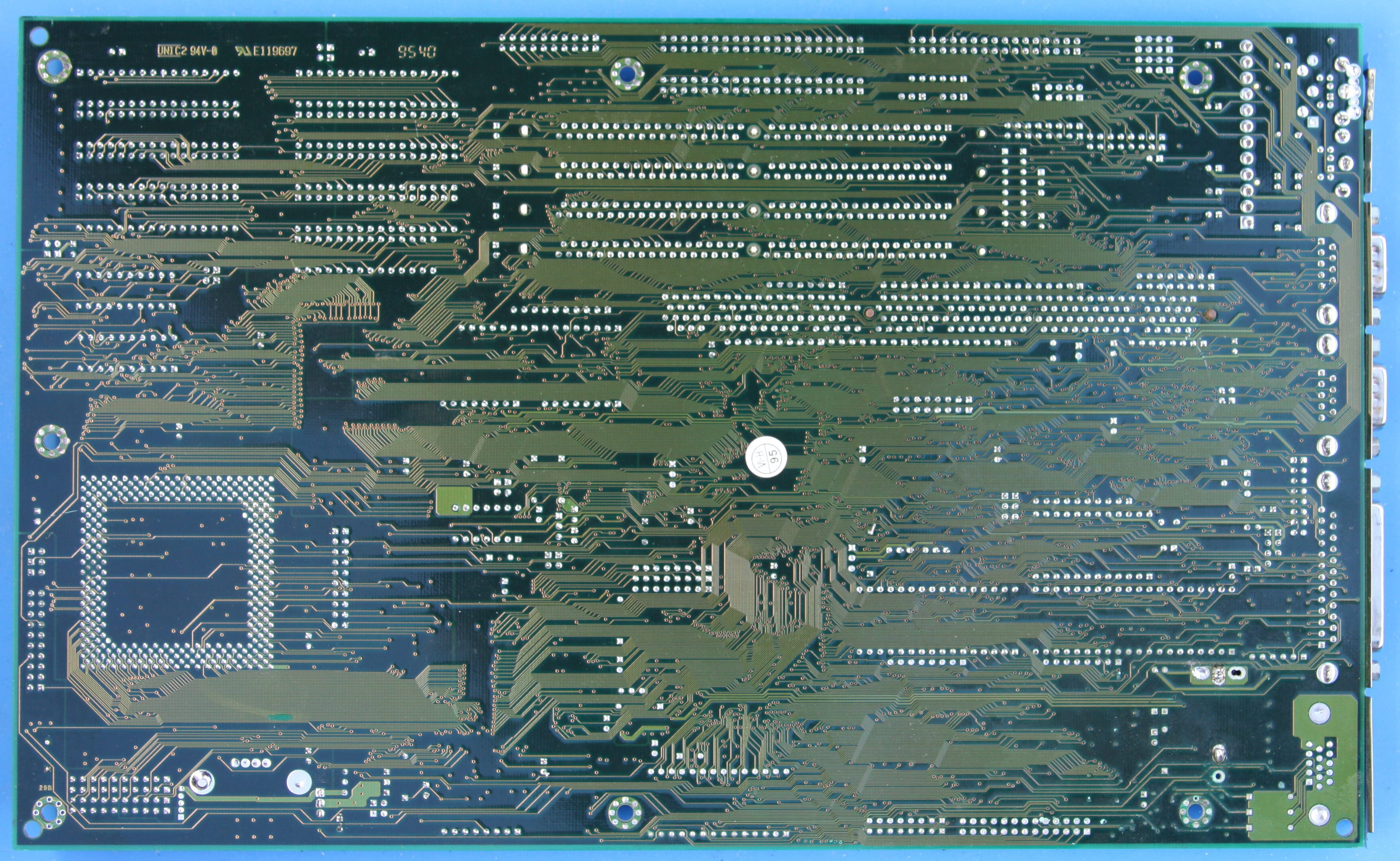

Image 1 of 4 (magus)
Image 2 of 4 (magus)
Image 3 of 4 (magus)
Image 4 of 4 (magus)
