TMC/MyComp/MyNix/Megastar CAT38PC-1.31
Chipset
Sockets
FSB speeds 25MHz33MHz
Form factorSingle Board Computer
Dimensions338mm x 122mm
Cache
32KB64KB
Max RAM size
16MB
RAM type 30-pin SIMM
PSU connector
Empty
I/O ports1x
AT Keyboard
Expansion slotsEmpty
Known issues
- Leaky Ni-Cd clock battery
The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta
Last updated 2025-05-30T10:48:28Z
Board info score is 0/10
Chips
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-0101-025034-00101111-070791-OPBC
Note
Core version
070791
BIOS version
Logs
No drivers available
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

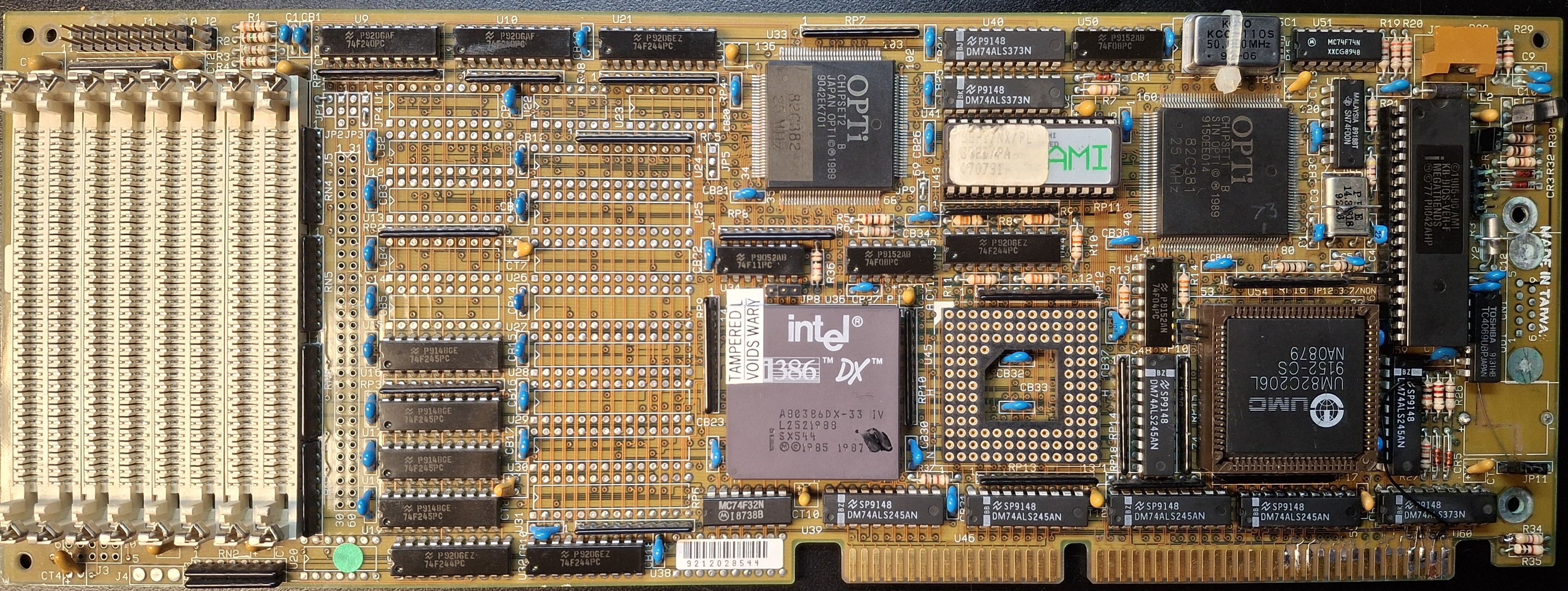

Image 1 of 1 (PolydactylCat)
