TK TK83305P9-4N-D-02
Logs
chipChipset
cpuSockets
PLCC68 PQFP100
speedFSB speeds
25MHz33MHz40MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
220mm x 220mm
chipCache
8KB
ramMax RAM size
32MB
ramRAM type
30-pin SIMM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
cardExpansion slots
7x
16-bit ISA
1x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2025-10-15T10:39:15Z
Board info score is 8.2/10
chip Chips
-> Chipset part
Macronix MX83C305 Macronix MX83C306
-> Human Interface
(multiple brand) 8042 (Keyboard Controller)
-> Real-Time Clock
(multiple brand) 6818A
cpufam CPU family support
bios 1 BIOS file available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-0000-001277-00101111-060692-MXIC-8
Note
Core version
060692
BIOS version
Logs
POST string
30-0000-001277-00101111-060692-MXP9
Note
Core version
060692
BIOS version
Logs
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1984
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-10
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

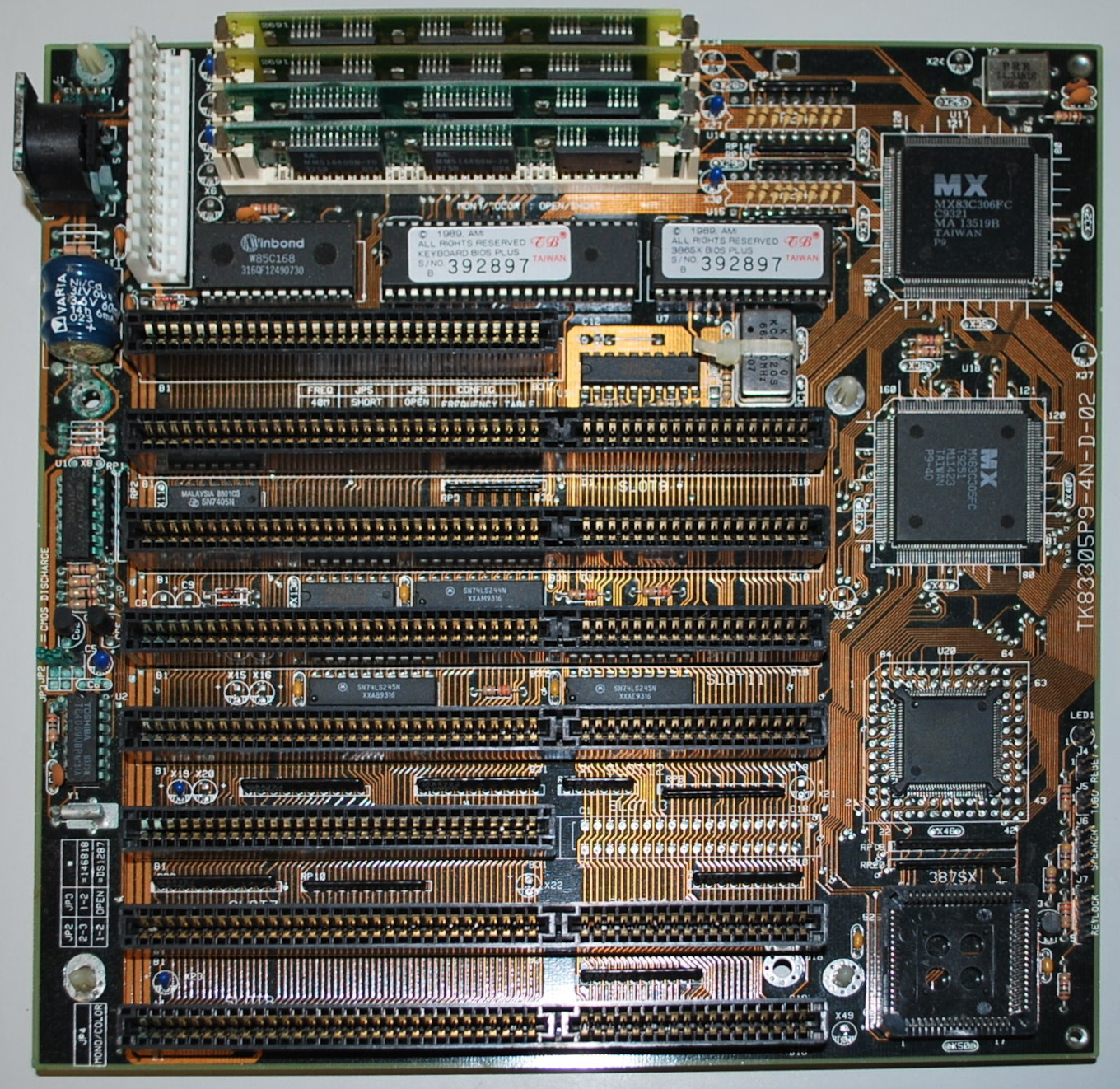

image1 Image 1 of 2

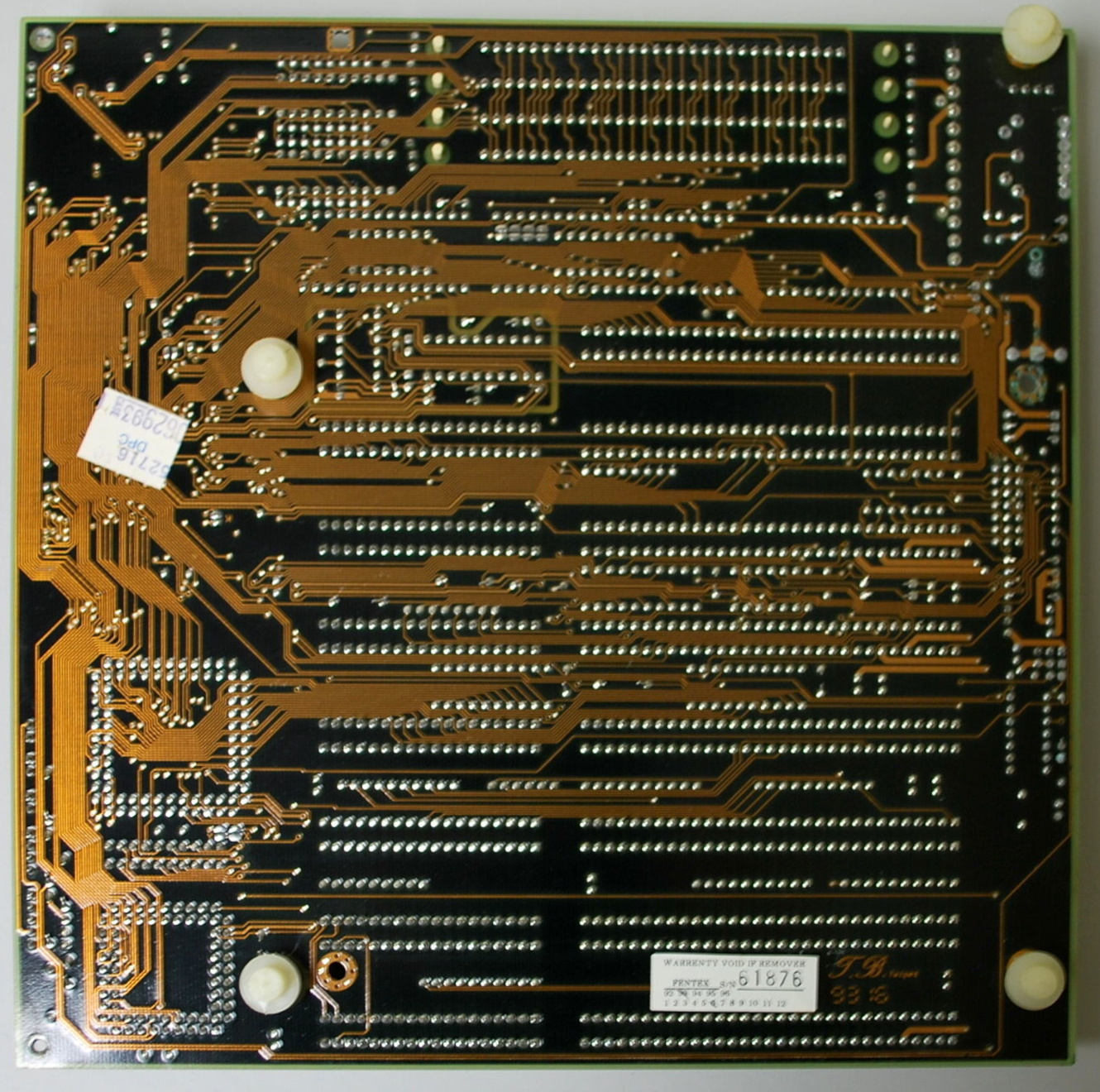

image2 Image 2 of 2

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
