Taiwan Commate / Commell PMSA (GM965)
Logs
chipChipset
cpuSocket
Socket P (mPGA478MN)
speedFSB speeds
533MHz800MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
384MB
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
200-pin DDR2 SO-DIMM
pwrPSU connector
ATX 2.x (24-pin ATX)
connI/O ports
2x
FireWire 400
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
1x
S/PDIF
3x
SATA II
4x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
1x
16-bit ISA
2x
32-bit PCI
1x
32-bit mini-PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-05-29T20:03:59Z
Board info score is 9.4/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
04/08/2008-Crestline-6A79NTPAC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.32.4
OS support
Windows 2000 Windows XP/2k3
Arch
Size
47.9MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename

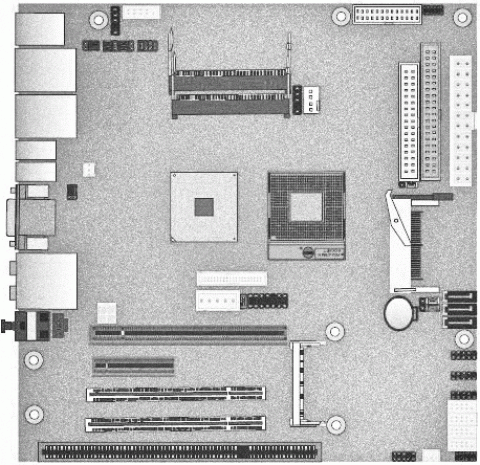

image1 Image 1 of 2 (Taiwan Commate / Commell)

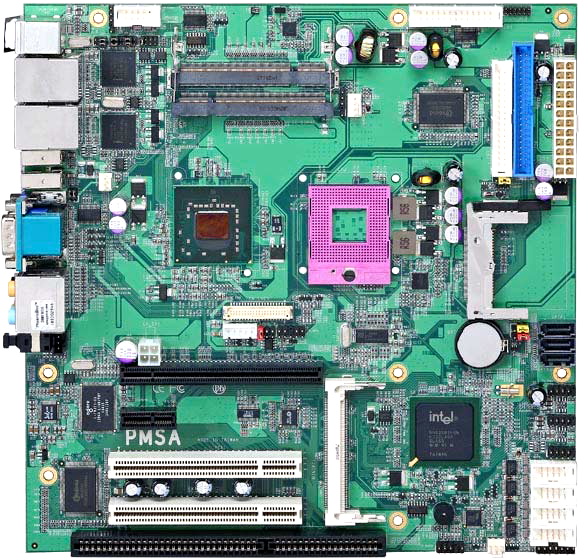

image2 Image 2 of 2 (Taiwan Commate / Commell)
