Taiwan Commate / Commell LV-679 (GM965)
Logs
chipChipset
cpuSocket
Socket P (mPGA478MN)
speedFSB speeds
533MHz667MHz800MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
ramMax VRAM size
384MB
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
200-pin DDR2 SO-DIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as

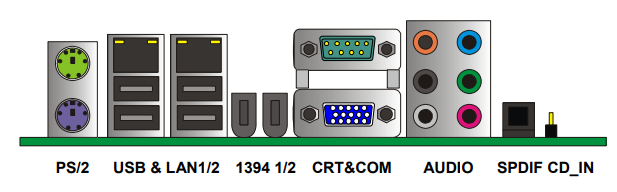

connI/O ports
1x
3.5mm Audio Combo
1x
CF Card Slot
2x
DVI
2x
FireWire 400
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
S-Video
1x
S/PDIF
3x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
2x
32-bit mini-PCI
notes Notes

LV-679D (Single DVI, no CF card slot)

LV-679D2C (dual DVI, CF card slot)

Last updated 2025-05-29T19:57:48Z
Board info score is 9.1/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/23/2008-Crestline-6A79NTP9C-00
Note
Core version
6.00PG
BIOS version
Logs
drv 4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.32.4
OS support
Windows 2000 Windows XP/2k3
Arch
Size
47.9MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename

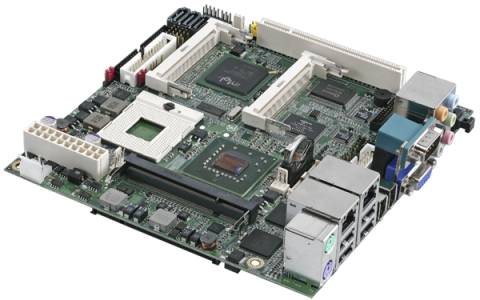

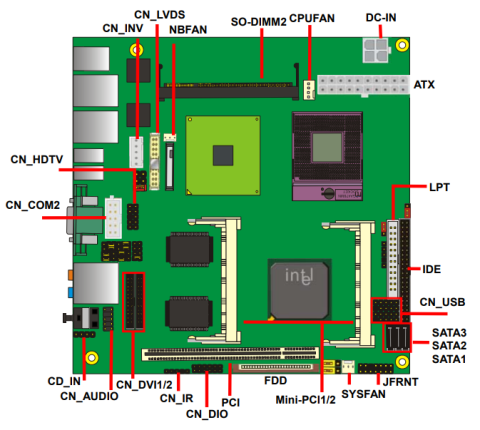

image1 Image 1 of 4 (Taiwan Commate / Commell)
image2 Image 2 of 4 (Taiwan Commate / Commell)
image3 Image 3 of 4 (Taiwan Commate / Commell)
image4 Image 4 of 4 (Taiwan Commate / Commell)
