Taiwan Commate / Commell LS-571 (GME965)
Logs
chipChipset
cpuSocket
Socket P (mPGA478MN)
speedFSB speeds
533MHz667MHz800MHz
moboForm factor
EBX/Little Board/Biscuit SBC 5.25" (max 203 x 146 mm)
dimDimensions
203mm x 146mm
ramMax VRAM size
384MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB1GB(Optional onboard 667Mhz DDRII SDRAM)
ramRAM type
200-pin DDR2 SO-DIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
CF Card Slot
2x
DVI
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
IrDA
2x
LVDS
1x
Parallel
2x
RJ-45 LAN
3x
SATA II
6x
Serial
8x
USB 2.0
2x
VGA
cardExpansion slots
1x
32-bit PCI
2x
32-bit mini-PCI
notes Notes

Power is by 20-pin ATX or 12V DC Input

LS-571TXD-P (single VGA, single LVDS, single DVI)

LS-571TXD-1G (single VGA, single LVDS, single DVI) + Onboard 1GB DDR II 667Mhz

LS-571TX2D-P (single VGA, dual LVDS, single DVI)

LS-571TXD2-P (single VGA, single LVDS, dual DVI)

LS-571T2X-P (dual VGA, single LVDS, no DVI)

LS-571TX2-P (single VGA, dual LVDS, no DVI)

Last updated 2025-05-29T19:53:48Z
Board info score is 8.9/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/25/2008-Crestline-6A79NTPAC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
9.1.2.1007
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

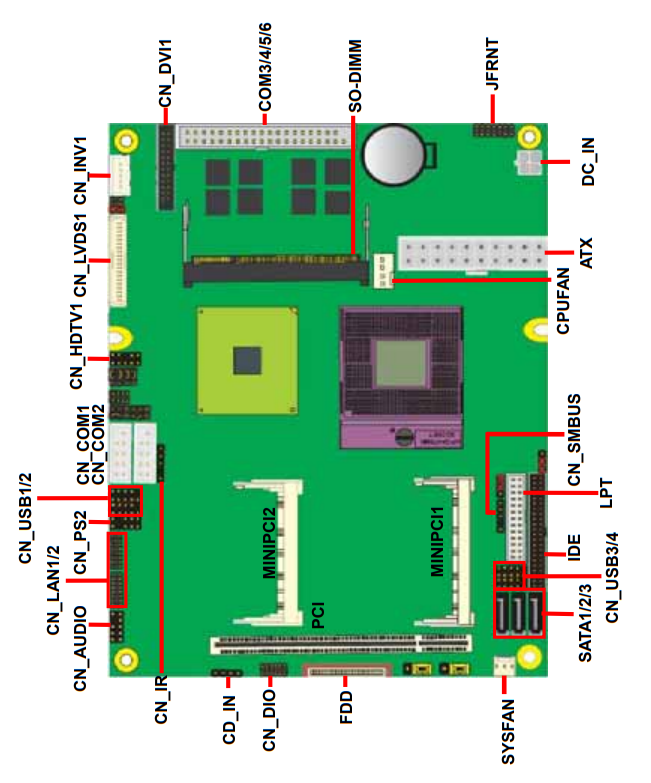

image1 Image 1 of 2 (Taiwan Commate / Commell)

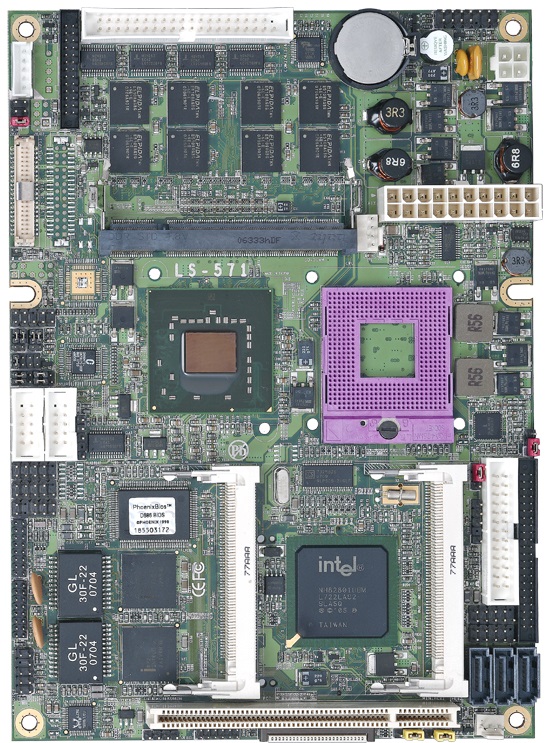

image2 Image 2 of 2 (Taiwan Commate / Commell)
