Taiwan Commate / Commell LE-364
Logs
chipChipset
cpuSocket
EBGA368
speedFSB speed
133MHz
moboForm factor
ECX/Biscuit SBC 3.5" (max 146 x 105 mm)
dimDimensions
146mm x 101mm
ramMax VRAM size
64MB
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM type
DDR UDIMM
pwrPSU connector
DC Jack (12V) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Line-Out
1x
CF Card Slot
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
IrDA
1x
LVDS
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit mini-PCI
notes Notes

LE-364 (VIA Eden 800MHz)

LE-364C10 (VIA C3 1Ghz)

Last updated 2025-05-29T19:37:56Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/29/2006-CM400-8237-6A7L2TPAC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 13 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
3.32
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
Size
4.1MB
Filename
Name
Version
16.01.23.16
OS support
Windows 9x
Arch
Size
8.9MB
Filename
Name
Version
5.40A
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
10.8MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Name
Version
V5.50b
OS support
Windows 2000 Windows NT 4.0 Windows Vista Windows XP/2k3
Arch
x86
Size
392.3KB
Filename
Name
Version
6.14.10.0380
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
3.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
14.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86 , x86-64
Size
6.2MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
6.9MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2004-12-15
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs
Family
Release date
2012-02-20
File
Logs

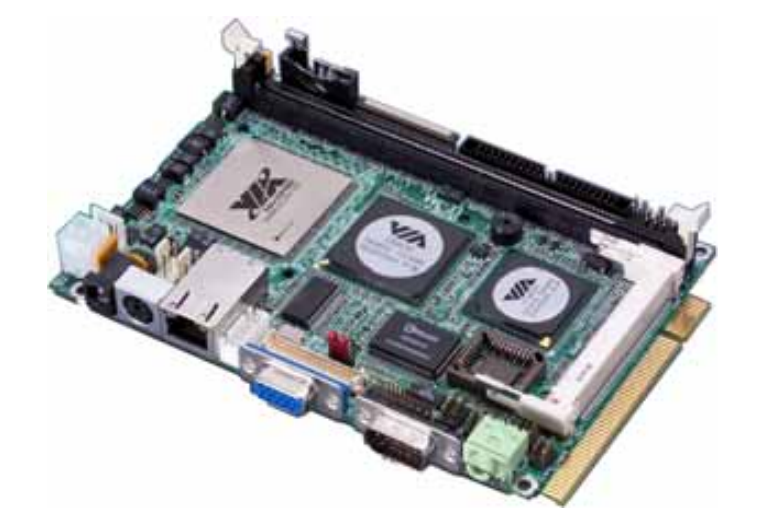

image1 Image 1 of 3 (Taiwan Commate / Commell)

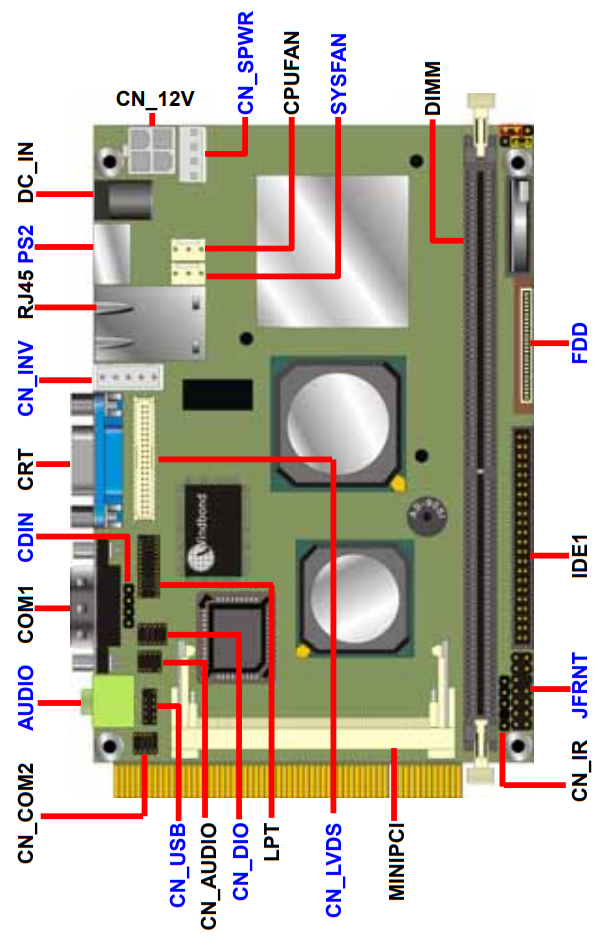

image2 Image 2 of 3 (Taiwan Commate / Commell)
image3 Image 3 of 3 (Taiwan Commate / Commell)
