Taiwan Commate / Commell LE-340
Logs
Chipset
Socket
FSB speed 33MHz
Form factorECX/Biscuit SBC 3.5" (max 146 x 105 mm)
Dimensions146mm x 101mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
256MB
RAM type 144-pin SDR SO-DIMM
PSU connector
Also known as
- Taiwan Commate / Commell LE-340VL2
- Taiwan Commate / Commell LE-340-OEM
I/O ports1x
CF Card Slot
1x
IDE interface
1x
LVDS
1x
Parallel
2x
RJ-45 LAN
3x
Serial
2x
USB 1.x
1x
VGA
Expansion slotsEmpty
Notes
Embedded PC/104 interface for 8/16-bit ISA-based PC/104 embedded peripheral modules.
LE-340VL2 (Geode GX1-300 MHz CPU)
LE-340-OEM (Customized CPU: NS Geode GX1 200/233/266 MHz)
Last updated 2025-05-29T19:38:25Z
Board info score is 6.2/10
Chips
-> Chipset part
-> Network
-> Super I/O
CPU family support
0 BIOS files available
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.719.0325.2009
OS support
Linux
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Windows 2000
Windows 7
Windows 9x
Windows Vista
Windows XP/2k3
Arch
x86
Size
39.5MB
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
No board documents available
Chip
Release date
File
Logs

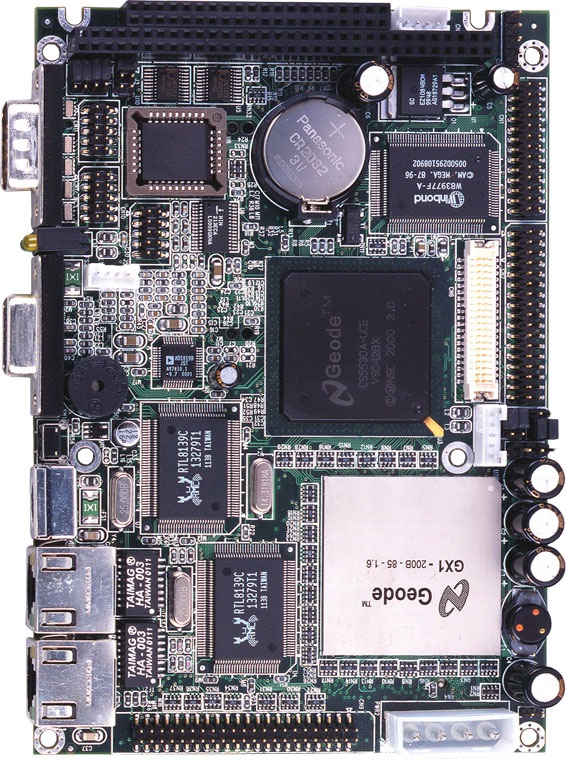

Image 1 of 1 (Taiwan Commate / Commell)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
