Taiwan Commate / Commell HE-B71
Logs
chipChipset
cpuSocket
FCBGA1364 (BGA1364)
speedFSB speed
Empty
moboForm factor
Single Board Computer
dimDimensions
168mm x 126mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
DVI
1x
DisplayPort
1x
GPIO
1x
IrDA
1x
LVDS
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
4x
SATA III
6x
Serial
2x
USB 2.0
4x
USB 3.0
1x
VGA
1x
mSATA
cardExpansion slots
1x
Mini-PCIe
1x
PICMG 1.3 (SHB Express) Half-size
notes Notes

Mini PCIe Slot has a optional mSATA Support)

Supported Backplane: CBP-6P3X2

HE-B7117L1 (Intel i7-4700EQ CPU, Support 4 x PCIe x1)

HE-B7117L4 (Intel i7-4700EQ CPU, Support 1 x PCIe x4)

HE-B7117P1 (Intel Celeron 2002E CPU, Support 4 x PCIe x1)

HE-B7117P4 (Intel Celeron 2002E CPU, Support 1 x PCIe x4)

HE-B7117Q1 (Intel i5-4402E CPU, Support 4 x PCIe x1)

HE-B7117Q4 (Intel i5-4402E CPU, Support 1 x PCIe x4)

HE-B7117R1 (Intel i3-4102E CPU, Support 4 x PCIe x1)

HE-B7117R4 (Intel i3-4102E CPU, Support 1 x PCIe x4)

Last updated 2025-05-29T19:34:14Z
Board info score is 8.1/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
HE-B711 Series (4x PCIe 1x)
Core version
SecureCore Tiano v2.1
BIOS version
Logs
POST string
Note
HE-B714 Series (1x PCIe 4x)
Core version
SecureCore Tiano v2.1
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
2007-08
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-06
File
Logs
Chip
Release date
2014-05
File
Logs
Chip
Release date
2020-01
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs
Chip
Release date
2007-04-10
File
Logs
Chip
Release date
2007-01-31
File
Logs
Chip
Release date
2009-07-09
File
Logs

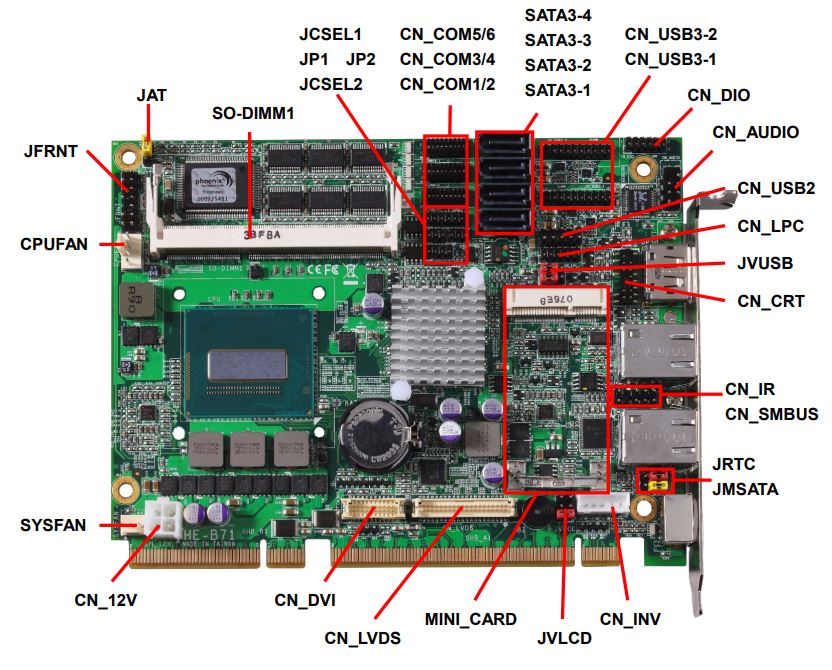

image1 Image 1 of 4 (Taiwan Commate / Commell)

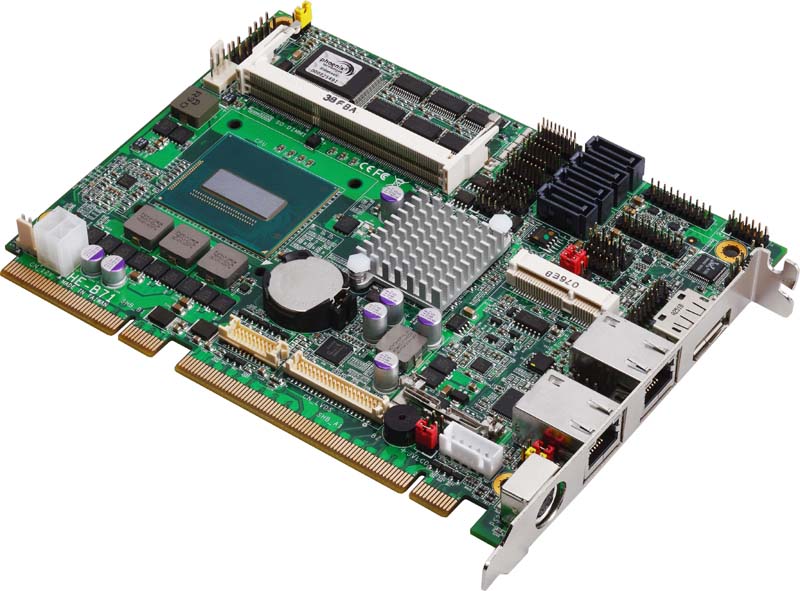

image2 Image 2 of 4 (Taiwan Commate / Commell)
image3 Image 3 of 4 (Taiwan Commate / Commell)

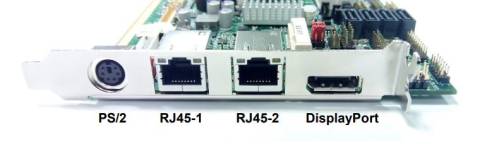

image4 Image 4 of 4 (Taiwan Commate / Commell)
