Supermicro X7SBA
Chipset
Socket
FSB speeds 800MHz1066MHz1333MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Max VRAM size32MB
Cache
None/Integrated in the CPU
Max RAM size
8GB
RAM types DDR2 UDIMMDDR2 UDIMM ECC
PSU connector

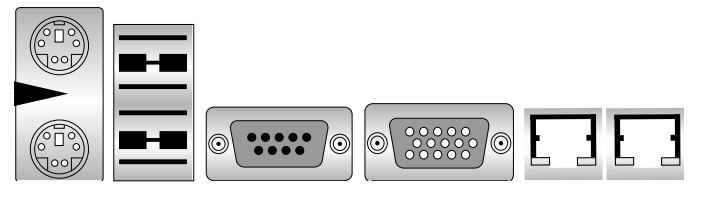

I/O ports1x
Floppy interface
1x
GPIO
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
6x
SATA II
2x
Serial
7x
USB 2.0
1x
VGA
Expansion slots4x
32-bit PCI
2x
64-bit PCI-X
1x
PCIe x16 @ x8
Notes
Supports Quad-Core Intel® Xeon® X3300/X3200 series
Supports Dual-Core Intel® Xeon® E3100/3000 series
Supports Intel® Xeon® processor L3360 and L3110 series
Intel Xeon processor L3014 requires an LGA771 socket and is not supported.
Last updated 2024-09-04T00:09:42Z
Board info score is 9/10
Chips
-> Chipset part
-> Network
-> Super I/O
-> Video
CPU family support
- Intel Core 2 Duo (Conroe/Allendale)
- Intel Pentium D (Presler)
- Intel Core 2 Quad (Kentsfield)
- Intel Core 2 Duo (Wolfdale)
- Intel Core 2 Quad (Yorkfield)
- Intel Pentium Dual-Core (Allendale)
- Intel Celeron Dual-Core (Allendale)
- Intel Xeon (Conroe/Allendale)
- Intel Celeron (Conroe-L)
- Intel Pentium 4 (Cedar Mill)
- Intel Celeron D (Cedar Mill-512)
- Intel Core 2 Extreme (Kentsfield)
- Intel Xeon (Kentsfield)
- Intel Pentium Dual-Core (Wolfdale)
- Intel Celeron Dual-Core (Wolfdale)
- Intel Xeon (Wolfdale)
- Intel Core 2 Extreme (Yorkfield)
- Intel Xeon (Yorkfield)
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
9.2.0.1030
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Socket
Release date
File
Logs

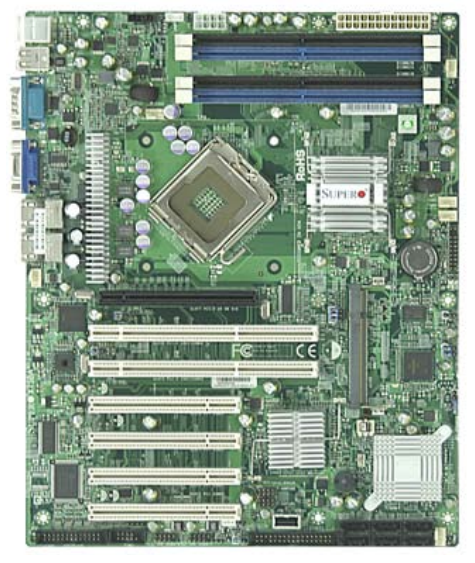

Image 1 of 3 (Supermicro)
Image 2 of 3

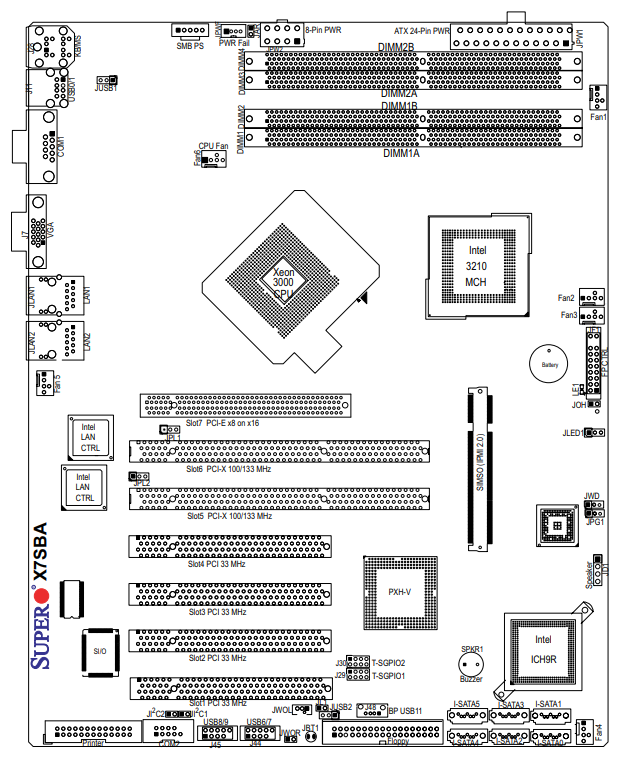

Image 3 of 3
