Supermicro X7DWT-INF
Chipset
Socket
FSB speeds 1066MHz1333MHz1600MHz
Form factorOEM / Proprietary
Dimensions416mm x 165mm
Max VRAM size32MB
Cache
None/Integrated in the CPU
Max RAM size
64GB
RAM type DDR2 FB-DIMM
PSU connector
Multi CPU support2 CPUs
Also known as
- Supermicro X7DWT (no Infiniband)
I/O ports1x
External Infiniband
1x
GPIO
2x
RJ-45 LAN
4x
SATA II
1x
Serial
4x
USB 2.0
1x
VGA
Expansion slots1x
PCIe x16
Notes
Has SIMSO IPMI 2.0 Slot
Last updated 2023-03-17T12:38:58Z
Board info score is 8.8/10
Chips
-> Chipset part
-> Network
-> Super I/O
-> Video
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
2.4MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs

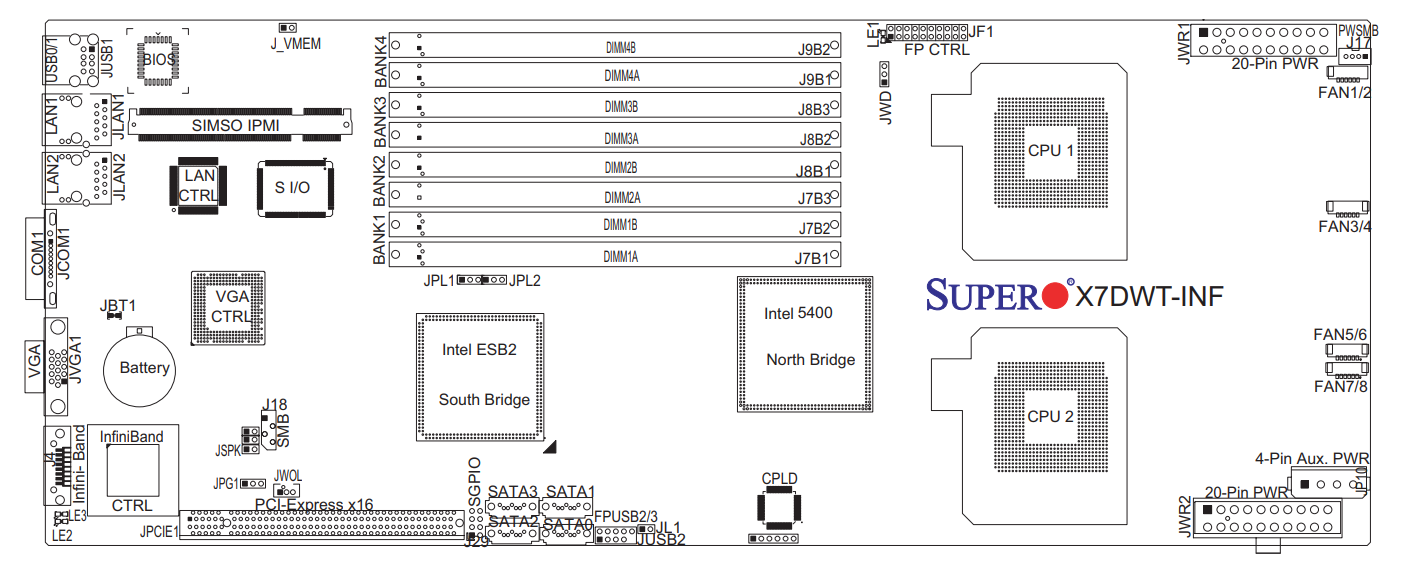

Image 1 of 3 (Supermicro)

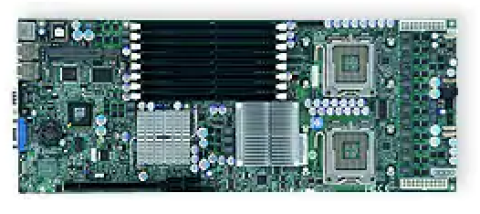

Image 2 of 3

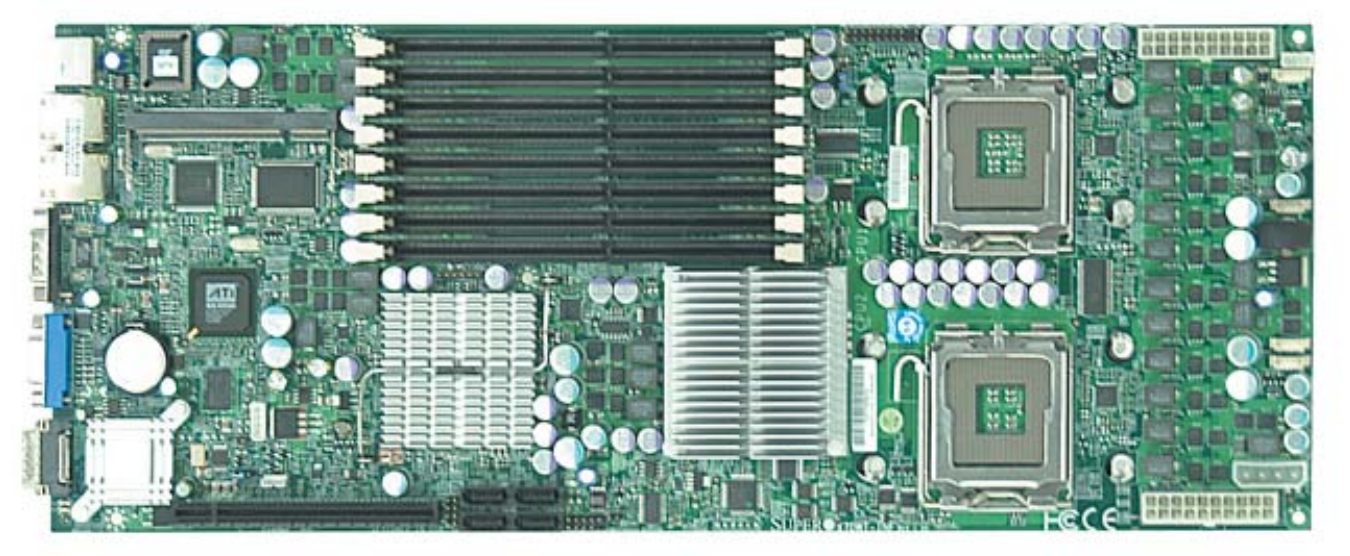

Image 3 of 3
