Supermicro X7DWE
Logs
chipChipset
cpuSocket
Socket J (LGA771)
speedFSB speeds
1066MHz1333MHz1600MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
306mm x 254mm
ramMax VRAM size
32MB
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR2 FB-DIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
connI/O ports
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
6x
SATA II
1x
Serial
7x
USB 2.0
1x
VGA
cardExpansion slots
1x
64-bit PCI-X
4x
PCIe x8
1x
PCIe x8 @ x4
1x
UIO slot
notes Notes

Memory must be populated in pairs

Support processors with Max TDP < 100W

Has IPMI 2.0 (SIMLP) slot

Last updated 2024-09-04T00:09:23Z
Board info score is 8.8/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
4.0 Release 6.0
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

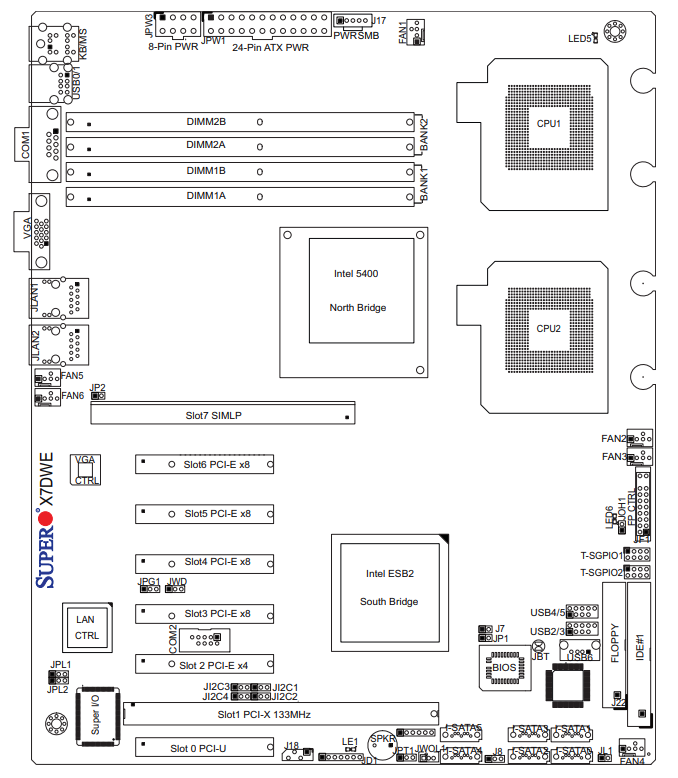

image1 Image 1 of 2 (Supermicro)

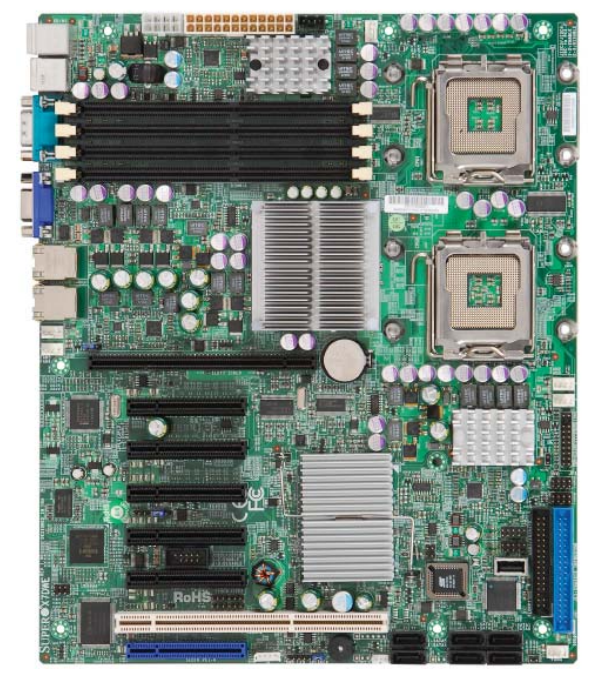

image2 Image 2 of 2
