Supermicro X7DBR-3
Logs
chipChipset
cpuSocket
Socket J (LGA771)
speedFSB speeds
667MHz1066MHz1333MHz
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305mm x 332mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR2 FB-DIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX EPS connector 12v (8-pin EPS) ATX P4 connector 12v (4-pin P4)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
CF Card Slot
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
2x
SAS-1 (3GBit)
6x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
2x
64-bit PCI-X
3x
PCIe x8
notes Notes

Uses Intel 82563EB Dual-port Gigabit Ethernet controller

Has one 64-bit PCI-X slot and one 64-bit PCI-X ZCR slot

Riser card is required for all slots

Has SO-DIMM IPMI Slot (SIMSO Slot)

Last updated 2023-03-16T22:37:50Z
Board info score is 8.8/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Supermicro X7DBR-3/X7DBR-E BIOS Rev 2.1b
Core version
4.0 Release 6.0
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename

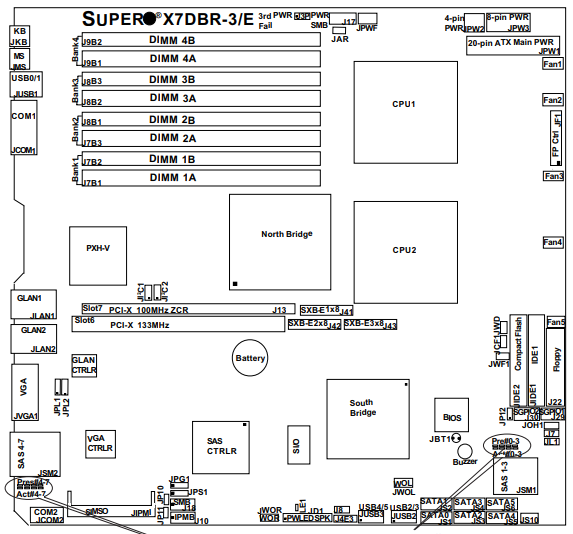

image1 Image 1 of 2 (Supermicro)
image2 Image 2 of 2
