Supermicro X7DB8 (SCSI, no SAS)
Logs
chipChipset
cpuSocket
Socket J (LGA771)
speedFSB speeds
667MHz1066MHz1333MHz
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305mm x 332mm
ramMax VRAM size
16MB
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR2 FB-DIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS) ATX P4 connector 12v (4-pin P4)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
CF Card Slot
1x
External SCSI
1x
Floppy interface
1x
GPIO
1x
IDE interface
1x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
6x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
3x
64-bit PCI-X
2x
PCIe x8
1x
PCIe x8 @ x4
notes Notes

Has 1x SEPC (Supermicro PCI-e Power Connector) slot for 2U active riser cards with a power extension

Has SIMLP IPMI 2.0 slot

Zero-Channel RAID Support

Last updated 2025-08-07T21:01:39Z
Board info score is 9/10
bios 3 BIOS files available

vendor Phoenix - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Supermicro X7DB8/X7DB8+/X7DB3 BIOS Rev 2.1c
Core version
4.0 Release 6.0
BIOS version
Logs
POST string
Note
Supermicro X7DBE/X7DBE+/X7DGE+ BIOS Rev 2.1c
Core version
4.0 Release 6.0
BIOS version
Logs
POST string
Note
Supermicro X7DB8 (X7DBE) BIOS Rev 1.2bv (for boards with DDR2 Video RAM)
Core version
4.0 Release 6.0
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009
File
Logs
Chip
Release date
2006-09
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Family
Release date
File
Logs
Family
Release date
2006-05-10
File
Logs
Family
Release date
2008-06
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
image1 Image 1 of 7 (Supermicro)
image2 Image 2 of 7 (Supermicro)
image3 Image 3 of 7 (CircusCat)

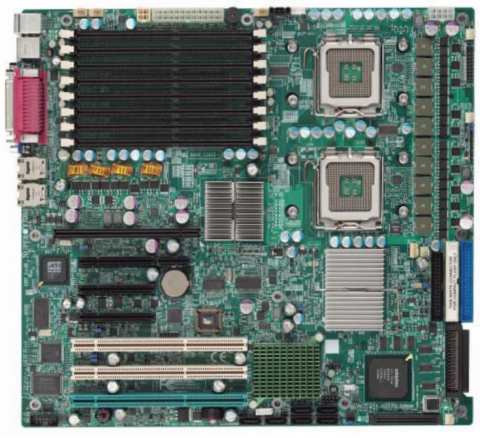

image4 Image 4 of 7 (Supermicro)
image5 Image 5 of 7 (Supermicro)
image6 Image 6 of 7 (Supermicro)

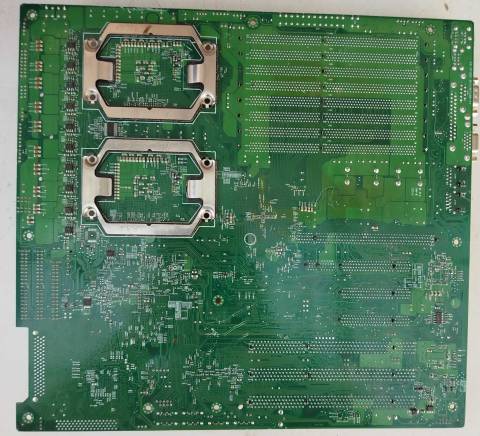

image7 Image 7 of 7 (CircusCat)
