Supermicro X6DLP-4G2
Logs
chipChipset
cpuSocket
Socket 479 (mPGA479M)
speedFSB speed
667MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
Internal SCSI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
SATA I
2x
Serial
4x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
2x
64-bit PCI-X
2x
PCIe x8
notes Notes
  • X6DLP-4G2 (SCSI)
  • X6DLP-EG2 (no SCSI)
Last updated 2025-10-05T21:18:49Z
Board info score is 7.4/10
chip Chips
-> Chipset part
Intel E7520 (MCH) Intel FWE6300ESB (Hance Rapids)
-> Network
Intel 82573V (PCIe Gigabit Ethernet) Intel 82573L (PCIe Gigabit Ethernet)
-> SCSI ctrl.
Adaptec AIC-7901
-> Sensing / Monitoring
Winbond W83792AD/D
-> Super I/O
Winbond W83627HF
-> Video
ATi Rage XL
cpufam CPU family support
Empty
bios 0 BIOS files available
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Name
Version
4.00.041
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
144.8KB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
Size
5.8MB
Filename
Version
OS support
Windows NT 4.0
Arch
Size
5.6MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2003-12
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-11
File
Logs

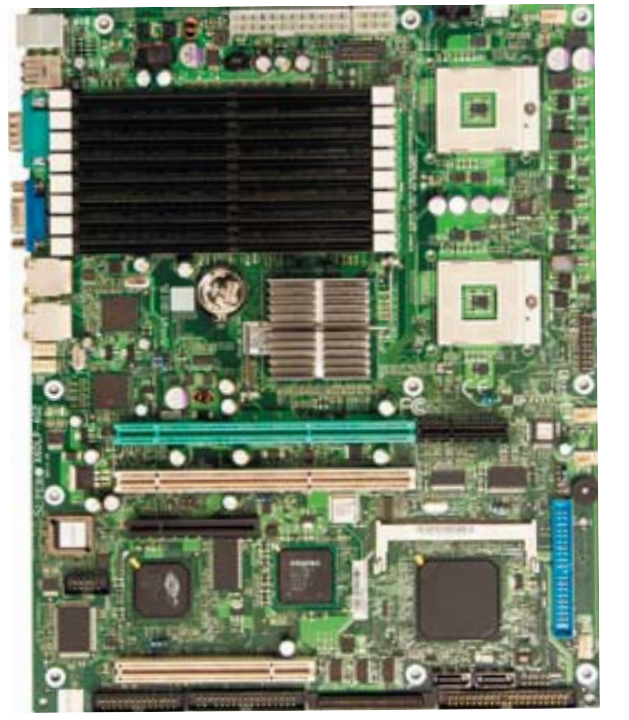

image1 Image 1 of 2 (Supermicro)

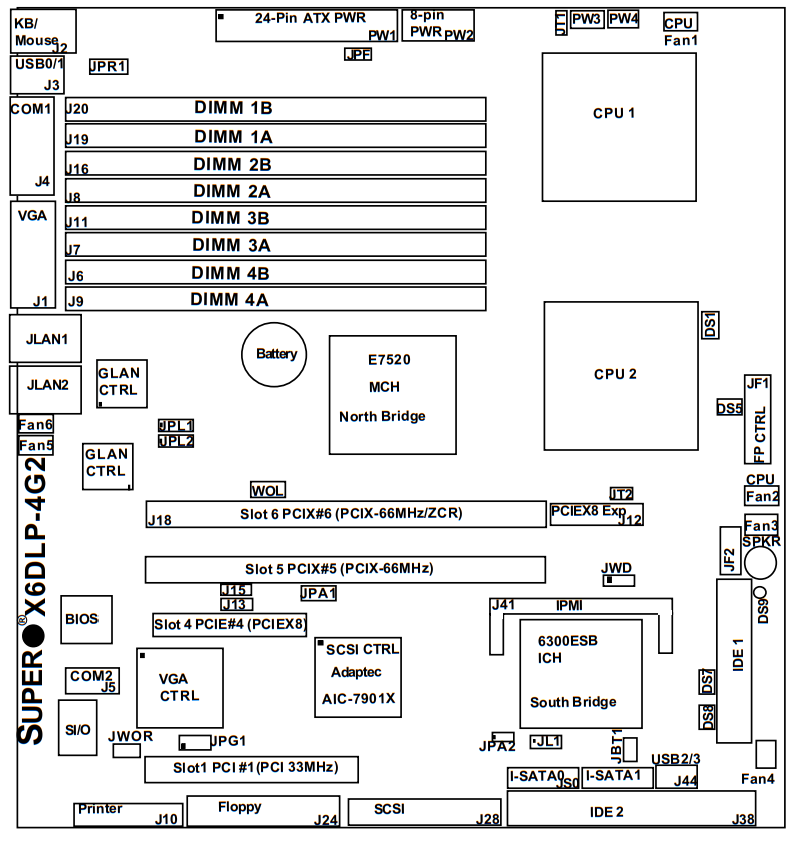

image2 Image 2 of 2 (Supermicro)
