Supermicro X6DAL-TB2
Logs
chipChipset
cpuSocket
Socket 604 (mPGA604)
speedFSB speed
800MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 254mm
chipCache
None/Integrated in the CPU
ramMax RAM size
12GB
ramRAM type
DDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
4x
SATA I
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
2x
32-bit PCI
2x
64-bit PCI-X
1x
PCIe x16
notes Notes

Marvell's SATA controller is available on the X6DAL-TB2 only.

Last updated 2025-05-28T14:48:08Z
Board info score is 9.6/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-100605-TUMWATER-X6TB2007
Note
X6DAL-TB2/B2 (10/06/05)
Core version
080010
BIOS version
Logs
POST string
64-0100-000001-00101111-121506-TUMWATER-X6TB2007
Note
X6DAL-TB2/B2 (12/15/06)
Core version
080010
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.00
OS support
Windows 2000 Windows XP/2k3
Arch
x86 , x86-64
Size
374.1KB
Filename
Name
Version
2.0.2600.2
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
6.9MB
Filename
Name
Version
4.00.041
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
144.8KB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Name
Version
3.6.3.3 (Win2000/XP) / 1.0.2010.827 (Vista/Win7/2008)
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2006-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2005-03
File
Logs

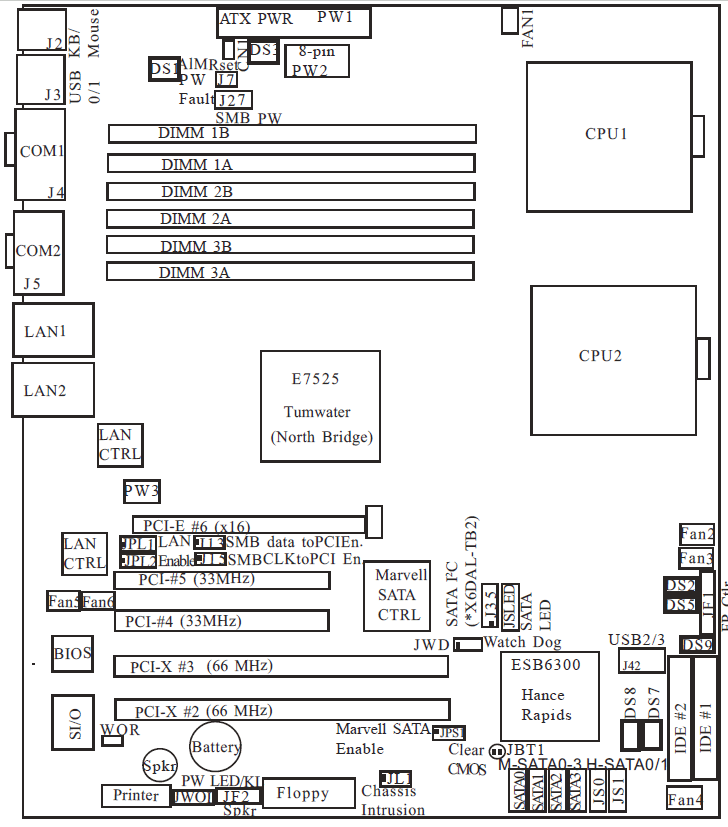

image1 Image 1 of 3 (Supermicro)

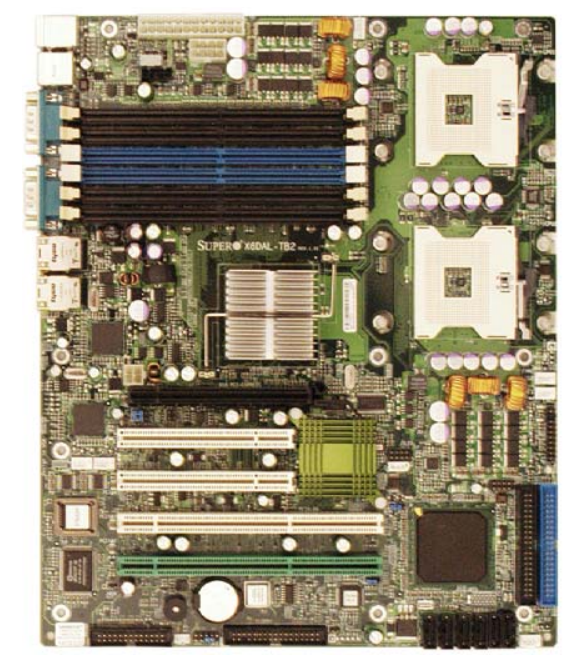

image2 Image 2 of 3 (Supermicro)

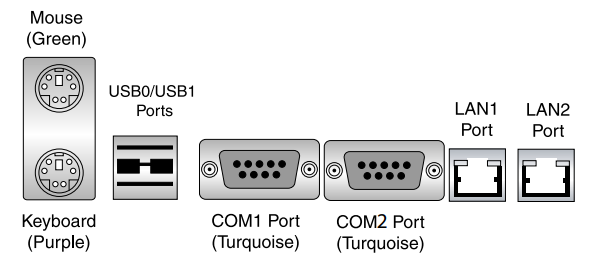

image3 Image 3 of 3 (Supermicro)
