Supermicro X10SBA-L (Rev: 1.00)
Logs
chipChipset
cpuSocket
FCBGA1170 (BGA1170)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
DisplayPort
1x
HDMI
2x
RJ-45 LAN
2x
SATA II
4x
Serial
3x
USB 2.0
1x
USB 3.0
1x
VGA
cardExpansion slots
1x
PCIe x8 @ x2
Last updated 2025-05-28T14:00:25Z
Board info score is 8.4/10
chip Chips
-> Network
Intel I210 (PCIe Gigabit Ethernet)
-> Super I/O
Nuvoton W83527HG
cpufam CPU family support
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
2014-08-29
File
Logs
Release date
2019-12-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2021-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2013-12
File
Logs
Chip
Release date
2022-01
File
Logs
Chip
Release date
2009-12-25
File
Logs

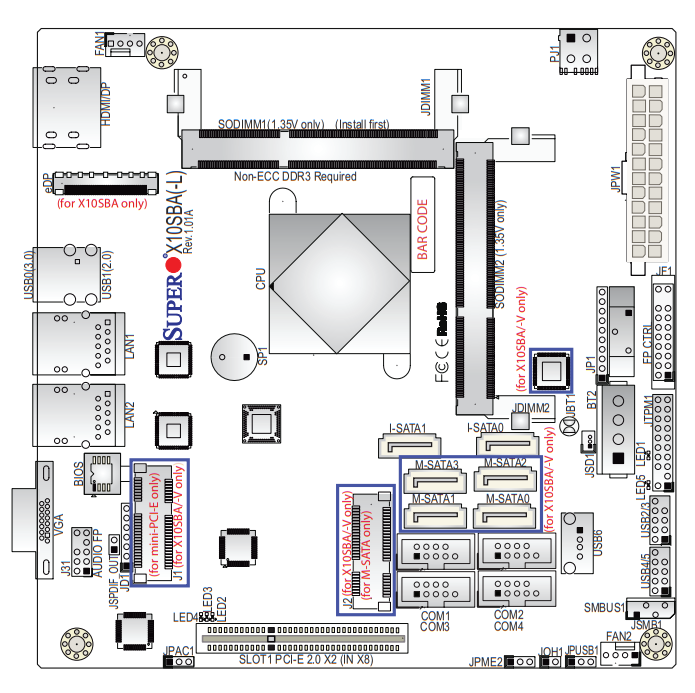

image1 Image 1 of 3 (Supermicro)

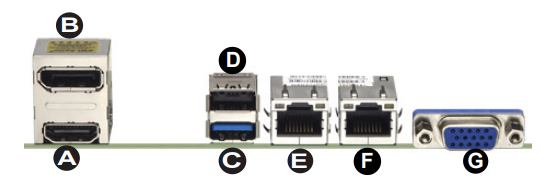

image2 Image 2 of 3 (Supermicro)

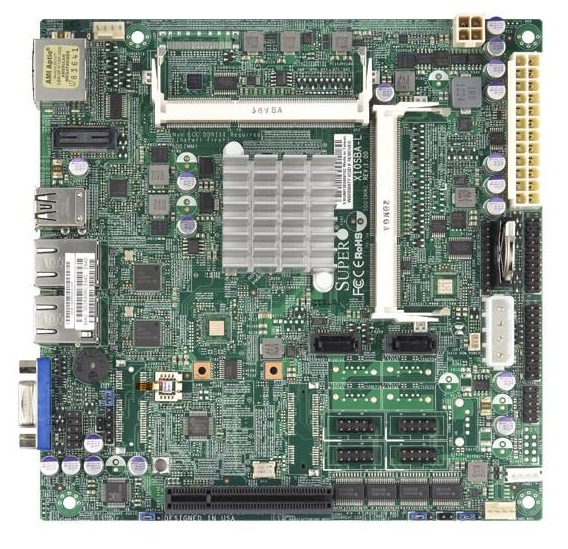

image3 Image 3 of 3 (Supermicro)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
