Supermicro PDSBE
Chipset
Socket
FSB speeds 533MHz800MHz1066MHz
Form factorATX (max 305 x 244 mm)
Dimensions292mm x 240mm
Cache
None/Integrated in the CPU
Max RAM size
8GB
RAM type DDR2 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA II
2x
Serial
10x
USB 2.0
Expansion slots4x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x8 @ x4
Notes
Supports a Dual-Core Intel Xeon 3000 Series processor
Last updated 2025-08-06T07:45:54Z
Board info score is 9/10
Chips
-> Chipset part
-> Network
-> Super I/O
CPU family support
- Intel Pentium 4 (Prescott)
- Intel Core 2 Duo (Conroe/Allendale)
- Intel Pentium D (Presler)
- Intel Core 2 Quad (Kentsfield)
- Intel Pentium 4 (Cedar Mill)
- Intel Pentium D (Smithfield)
- Intel Celeron D (Prescott-256)
- Intel Pentium Dual-Core (Allendale)
- Intel Celeron Dual-Core (Allendale)
- Intel Xeon (Conroe/Allendale)
- Intel Celeron (Conroe-L)
- Intel Celeron D (Cedar Mill-512)
- Intel Core 2 Extreme (Kentsfield)
- Intel Xeon (Kentsfield)
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Supermicro PDSBA+/PDSBA/PDSBE/PDSBA-Q/PDSBA-Q+ BIOS Rev 1.1a
Core version
BIOS version
Logs
2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
2.4MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2007-03
File
Logs
Family
Release date
2008-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2005-02
File
Logs
Family
Release date
2005-05
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
2007-01
File
Logs
Family
Release date
2007-07
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-10
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs

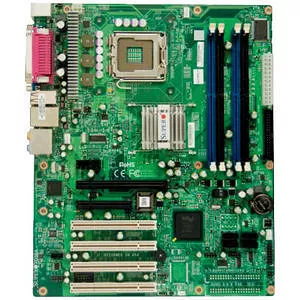

Image 1 of 3 (Supermicro)

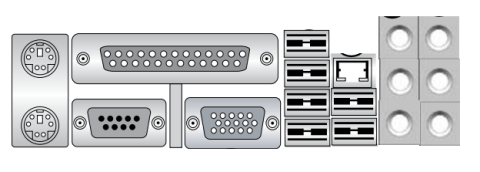

Image 2 of 3
Image 3 of 3
