Supermicro P4DEE
Logs
chipChipset
cpuSocket
Socket 603 (mPGA603)
speedFSB speed
400MHz
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305mm x 297mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS) ATX P4 connector 12v (4-pin P4)
maxcpuMulti CPU support
2 CPUs
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
4x
USB 1.x
1x
VGA
cardExpansion slots
2x
32-bit PCI
3x
64-bit PCI
notes Notes

Has Intel 82551 10/100 Ethernet Controller

Last updated 2023-03-17T20:48:52Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0105-009999-00101111-010504-AMIBIOS-4DE80105
Note
Supermicro X5DE8/X5DEI/P4DEE BIOS Rev. 1.3a (Supports P4DEI/P4DE8 too)
Core version
070000
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
Size
5.8MB
Filename
Version
OS support
Windows NT 4.0
Arch
Size
5.6MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2003-12
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs

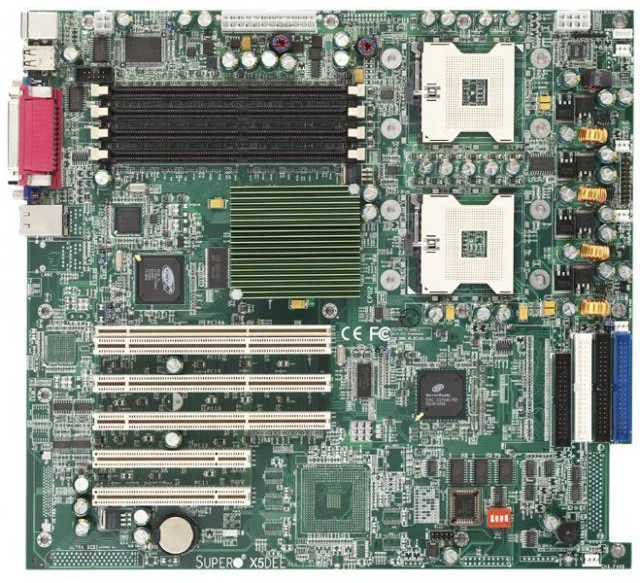

image1 Image 1 of 3 (Supermicro)
image2 Image 2 of 3
image3 Image 3 of 3
