Supermicro H8SGL-F
Logs
chipChipset
cpuSocket
Socket G34 (LGA1974)
speedFSB speeds
200MHz2600MHz3200MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 203mm
ramMax VRAM size
16MB
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB(UDIMM)256GB(RDIMM)
ramRAM types
DDR3 UDIMMDDR3 RDIMM ECCDDR3 LRDIMM ECCDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
FireWire 400
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
3x
RJ-45 LAN
6x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
1x
PCIe x16
1x
PCIe x8
1x
PCIe x8 @ x4
notes Notes

Lower PCI-e x8 (Slot5) is switched with half of top x16 (Slot6).

If a card is installed in both slots the top (slot6) will be running at x8. To get x16 on the top (Slot6), no card should be installed in (Slot5)

Last updated 2025-05-20T14:42:21Z
Board info score is 10/10
bios 10 BIOS files available

vendor AMI - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-0100-000001-00101111-112513-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
POST string
65-0100-000001-00101111-111111-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
POST string
65-0100-000001-00101111-101411-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
POST string
65-0100-000001-00101111-092515-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
POST string
65-0100-000001-00101111-083112-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
POST string
65-0100-000001-00101111-062911-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
POST string
65-0100-000001-00101111-061412-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
POST string
65-0100-000001-00101111-050713-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
POST string
65-0100-000001-00101111-032311-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
POST string
65-0100-000001-00101111-031816-MAGNYCRS-1A711000
Note
Core version
080016
BIOS version
Logs
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.51
OS support
Windows NT 3.5x
Arch
x86
Size
639.9KB
Filename
Name
Version
2.58
OS support
OS/2 1.x
Arch
x86
Size
1.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
6.3MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
4.5MB
Filename
Version
OS support
Windows NT 4.0
Arch
x86
Size
3.1MB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
2.3MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-12-25
File
Logs
Chip
Release date
File
Logs

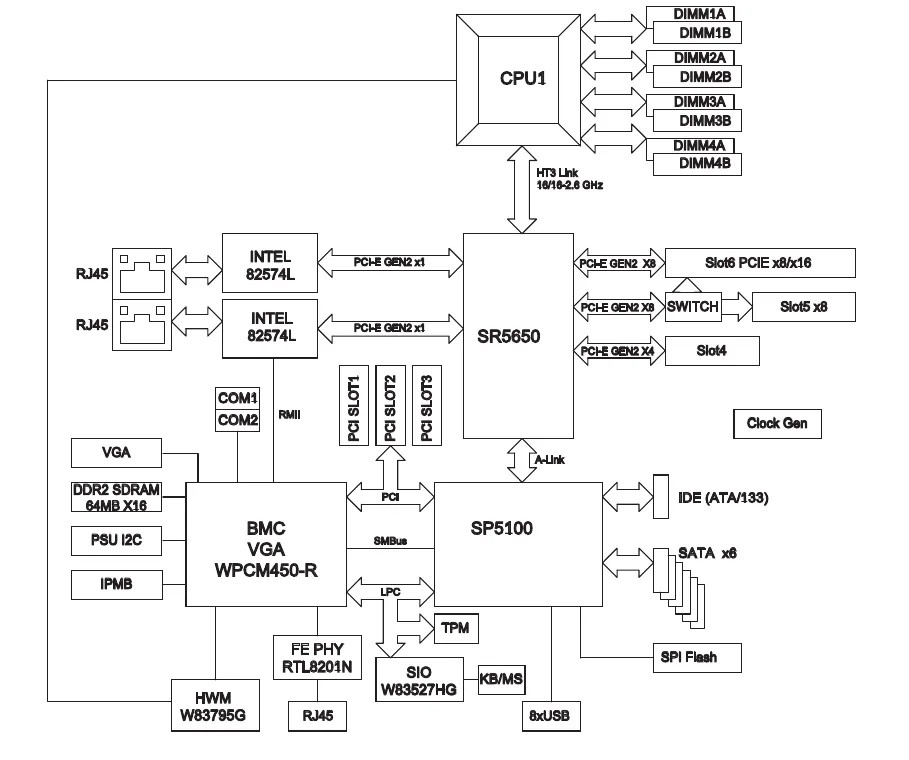

image1 Image 1 of 5 (Supermicro)

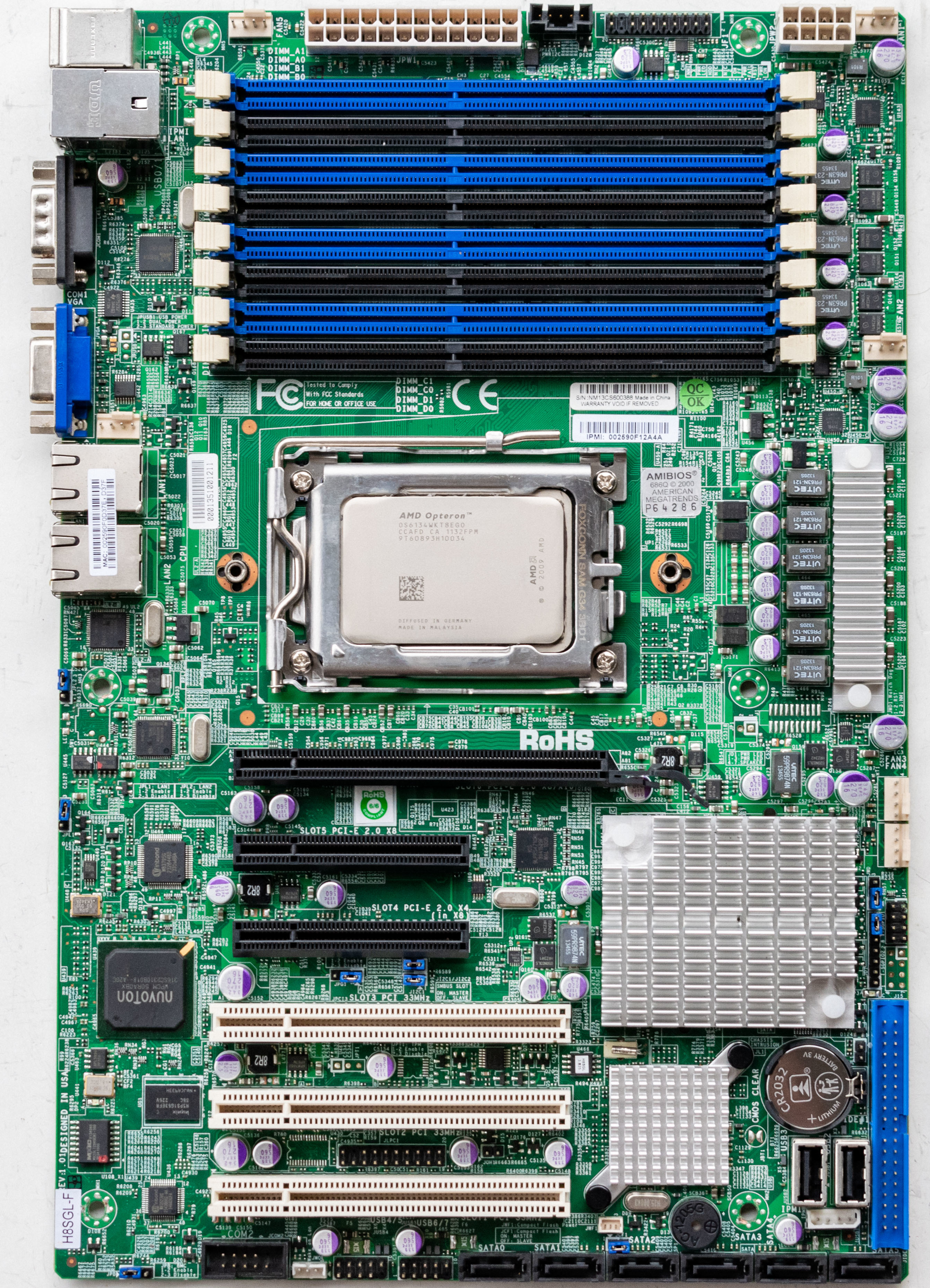

image2 Image 2 of 5 (Motherboard Continuum)

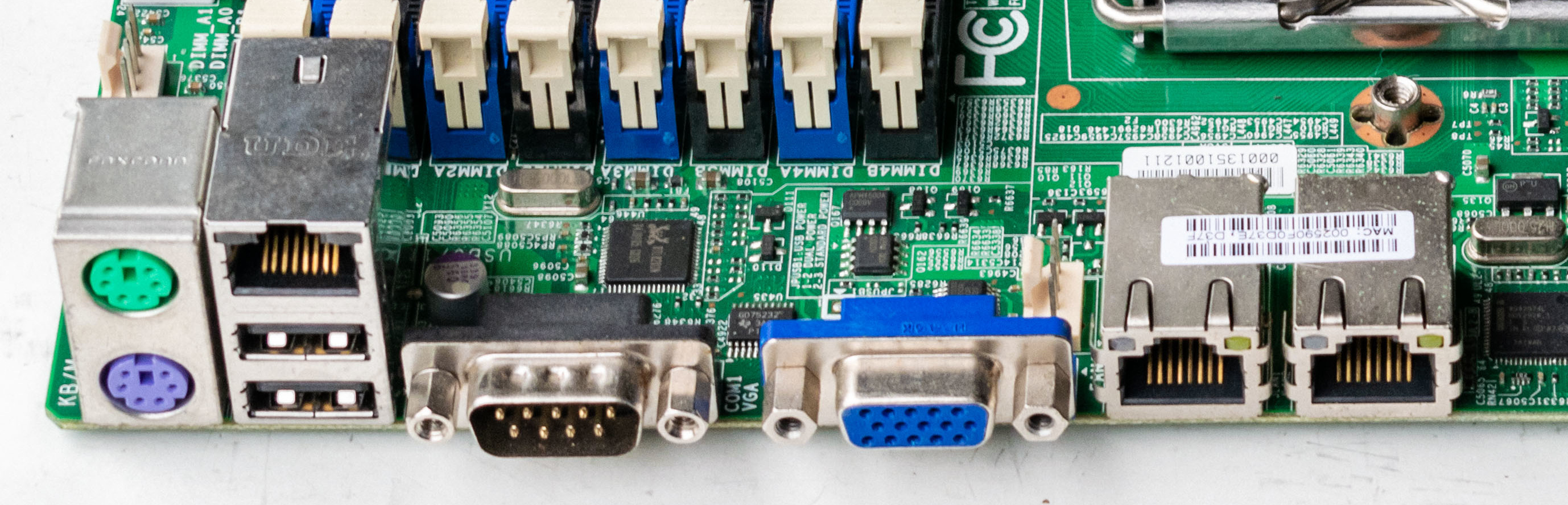

image3 Image 3 of 5 (Motherboard Continuum)

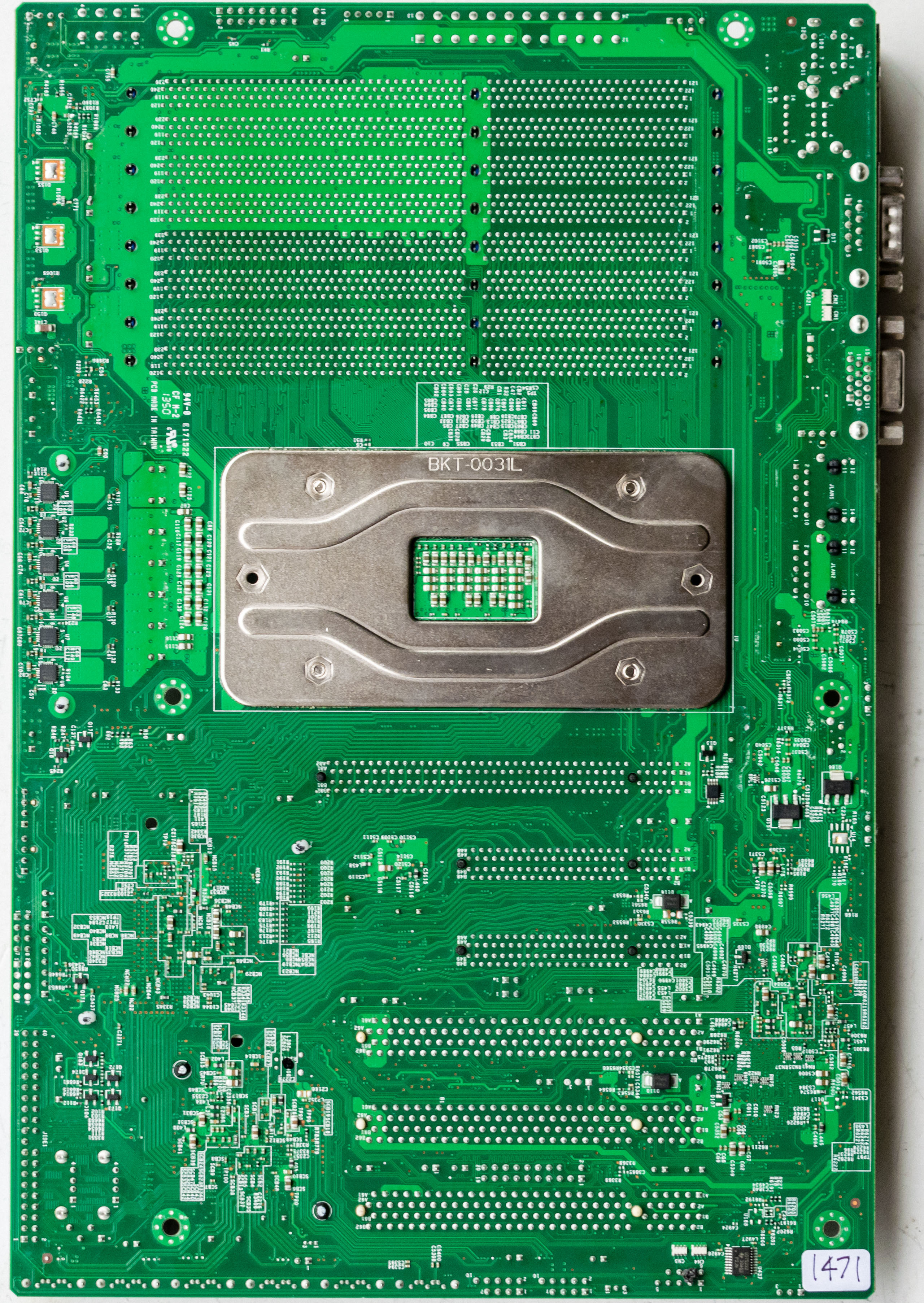

image4 Image 4 of 5 (Motherboard Continuum)
image5 Image 5 of 5
